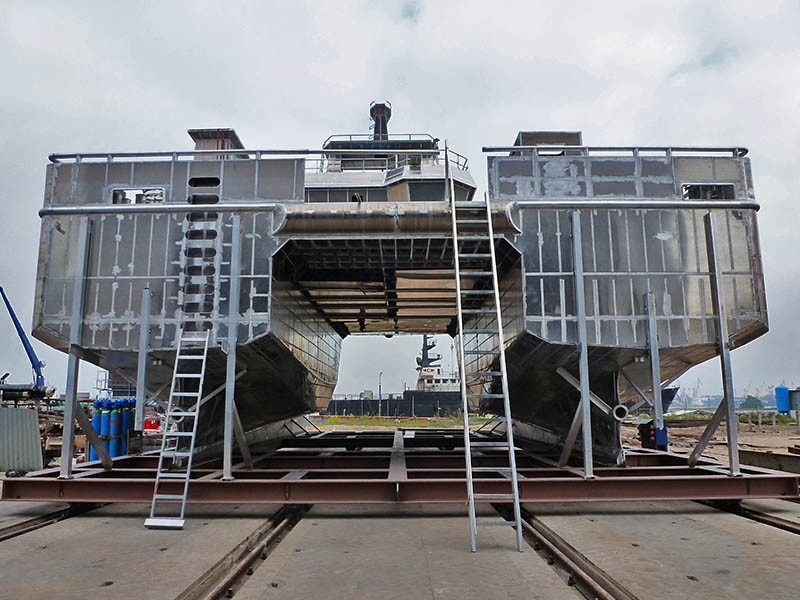

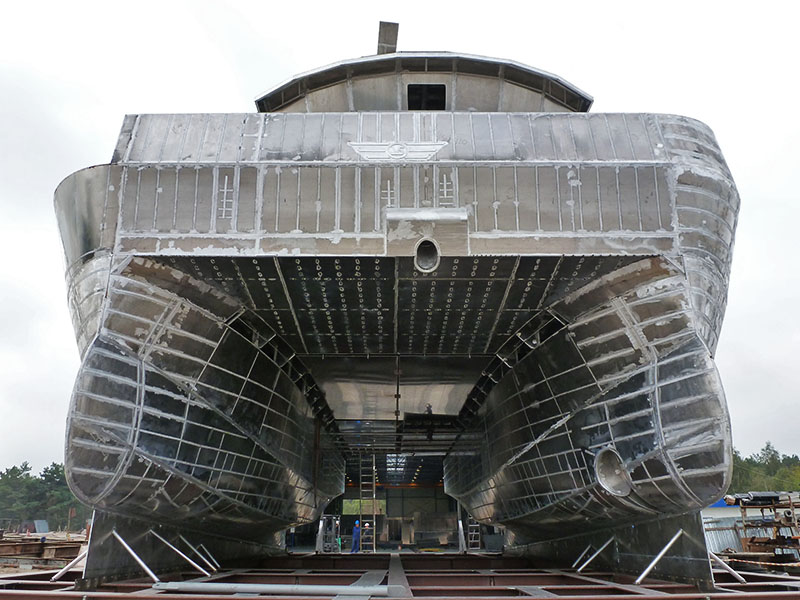

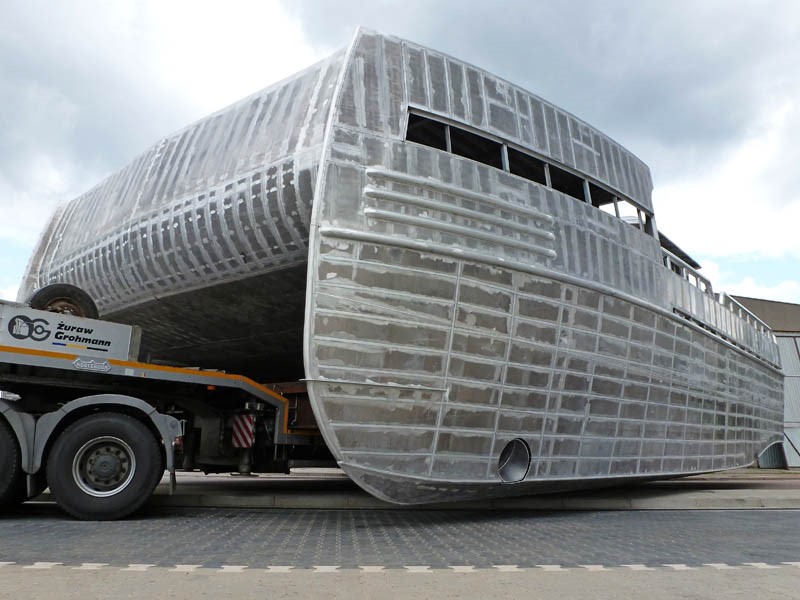

Whale Safari Catamaran

Whale Safari Catamaran Aluminium Constructions Catamarans

About:

Aluminum catamaran built according to new design, very optimized hull against water resistance. Very efficient with eco-friendly  engines. Catamaran is designated to be use in shallow water as well as open sea in arctic and subtropics. Building aluminum structure of the catamaran takes 6 months.

Built 2 pieces in 2019 year for Norwegian client.

  • Length: 25m,
  • Widith: 11m
  • High: 11m
  • Weight:  33tons

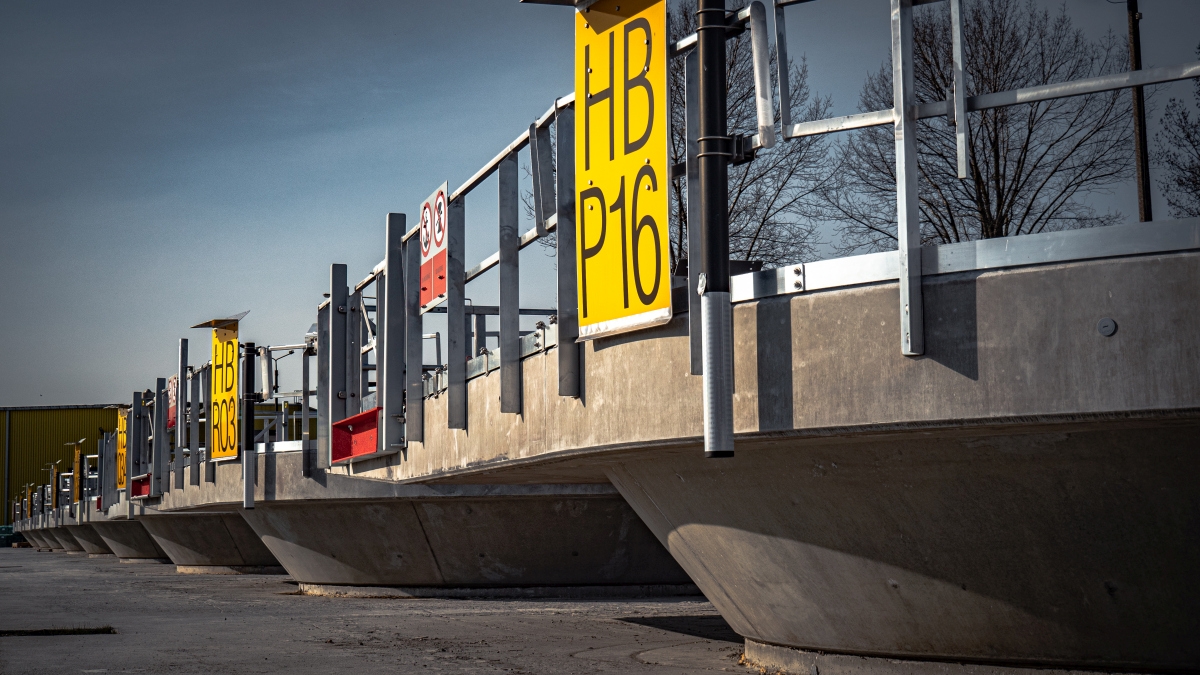

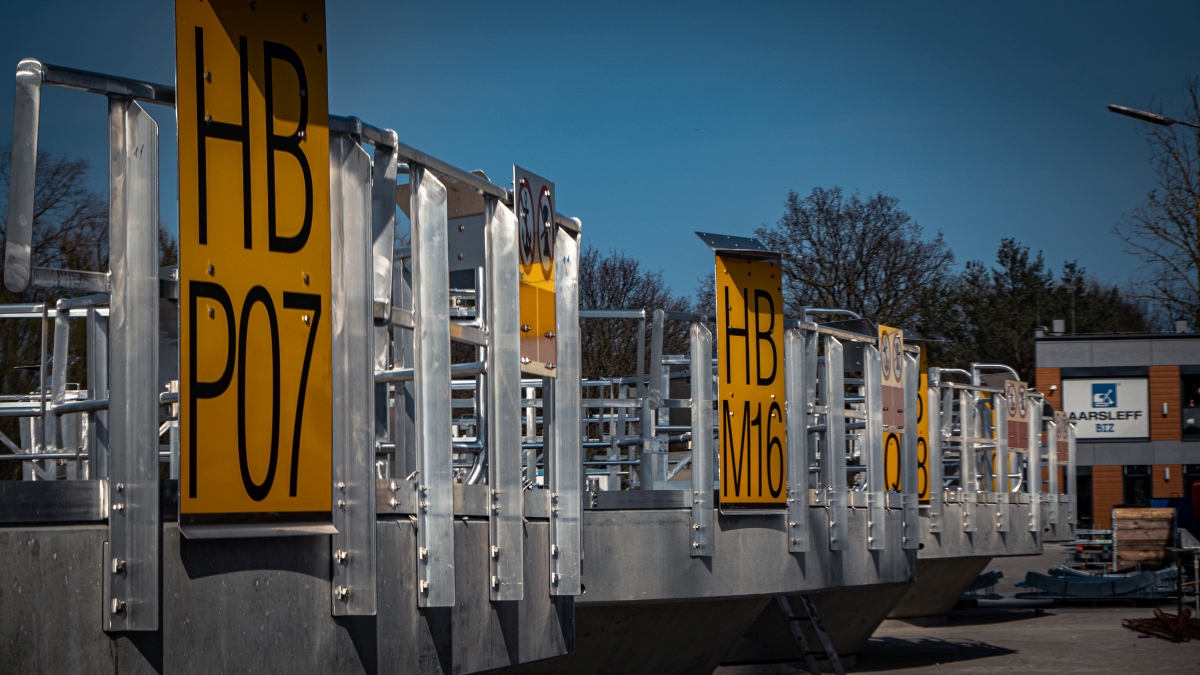

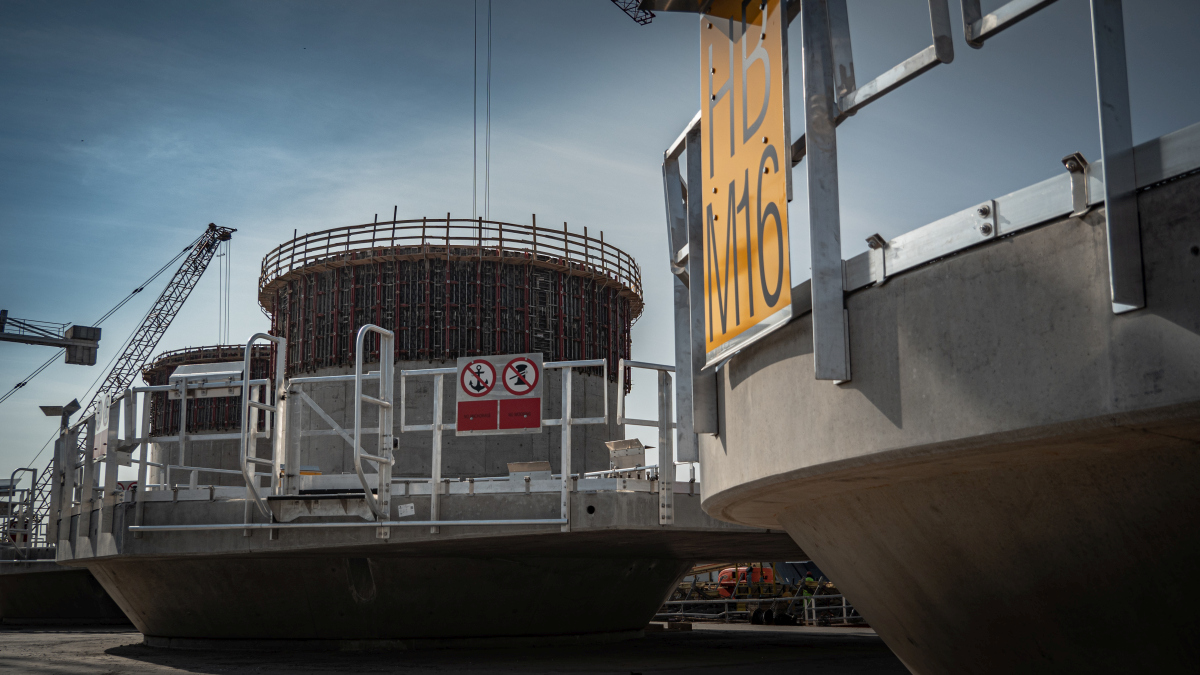

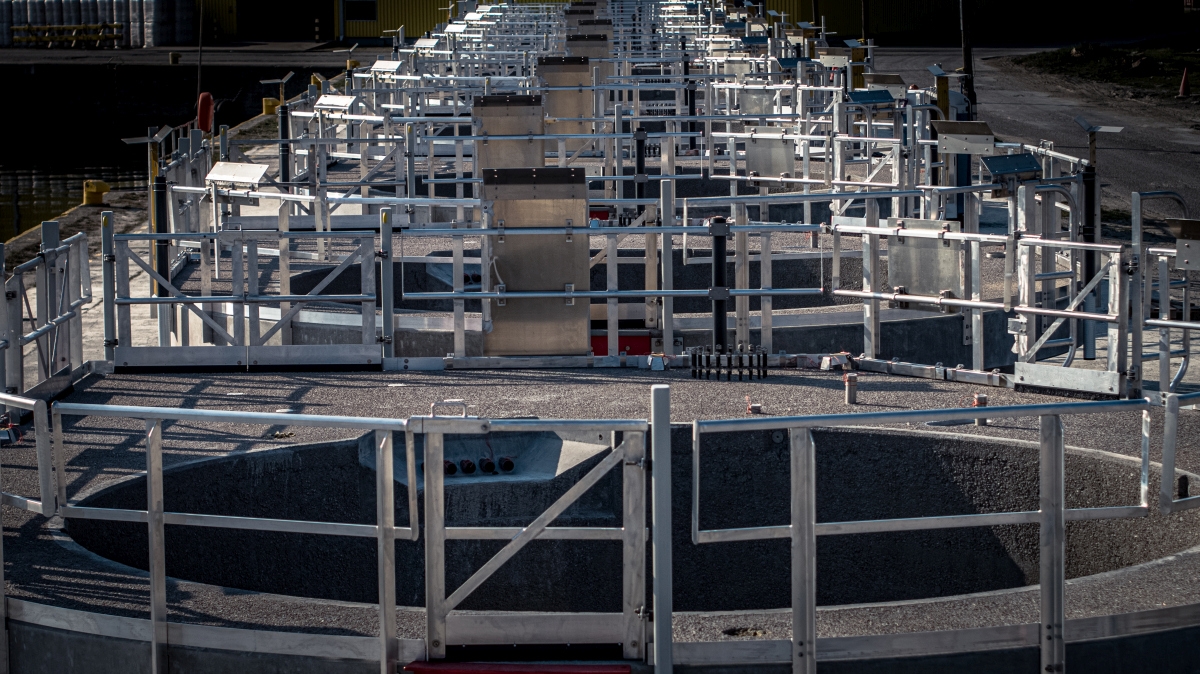

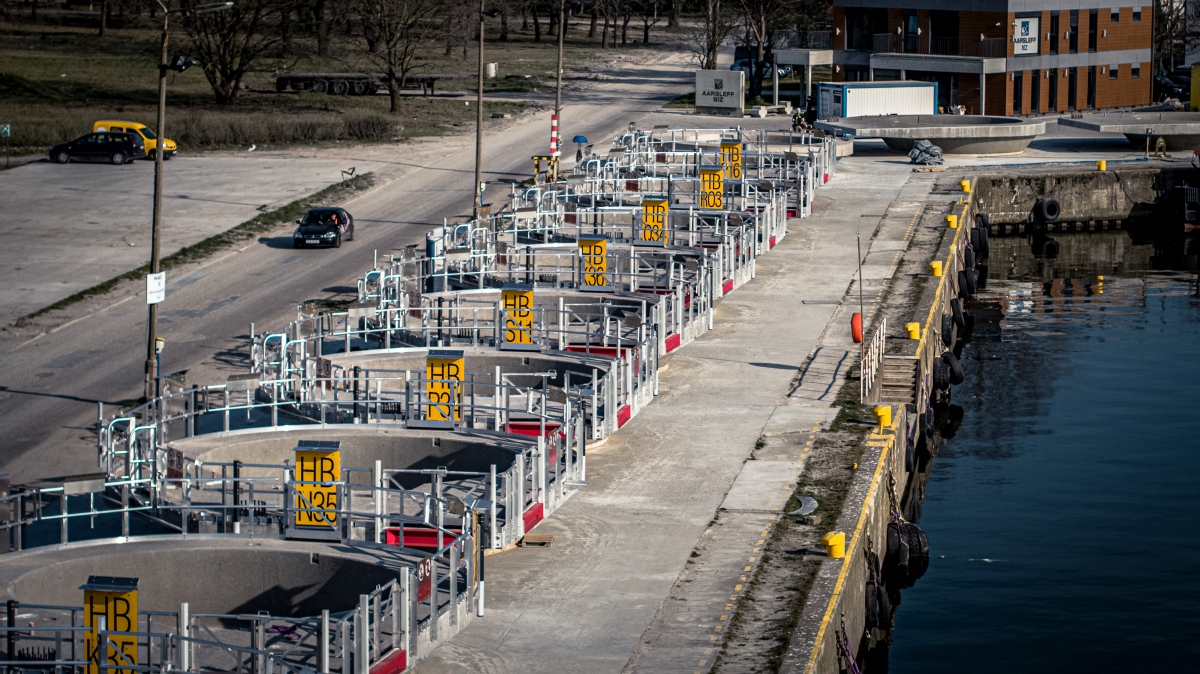

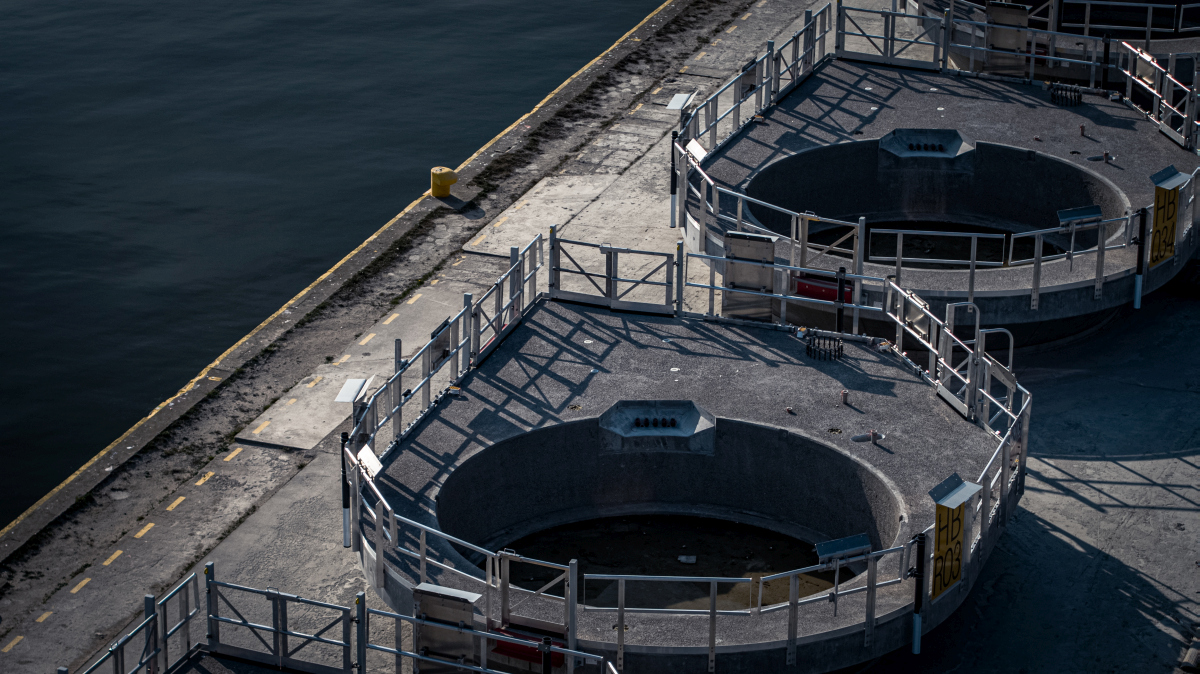

Railings for offshore wind turbines

Railings for offshore wind turbines Aluminium Constructions Offshore

About:

We are a producer of aluminum railings with steel elements mounted on offshore wind farms. We have the necessary knowledge, skills and certificates to design, implement and manufacture such components.

We have delivered and installed our constructions on projects such as:

  • Borkum Riffgrund II
  • Hornsea I
  • Borssele
  • Hornsea II

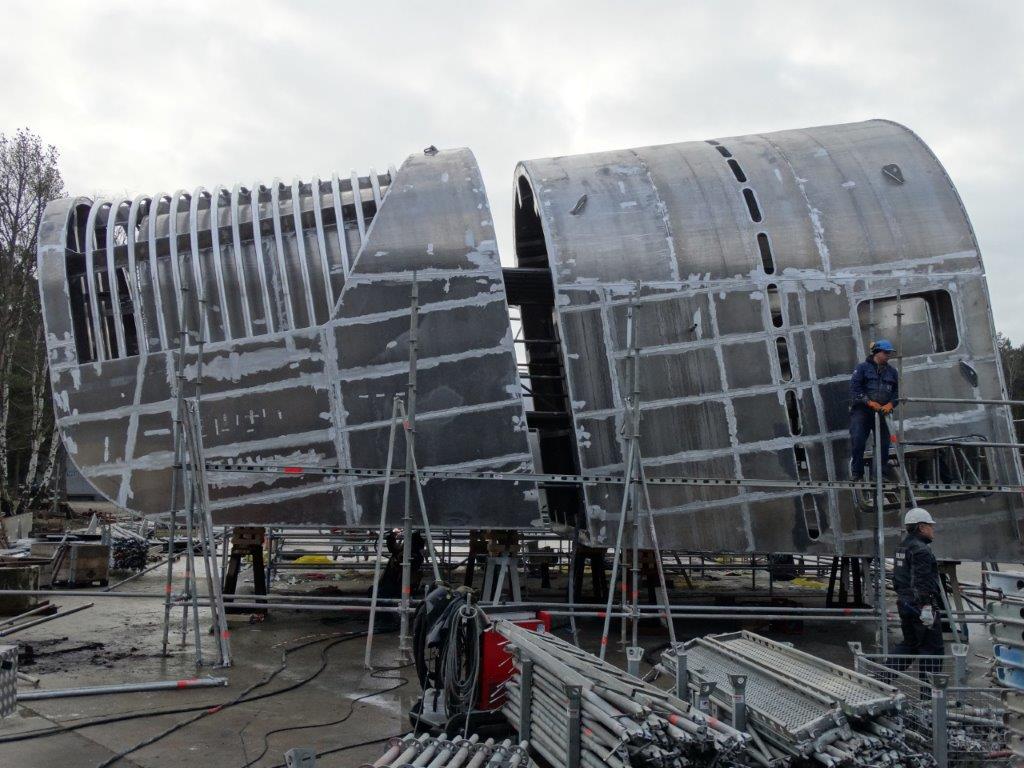

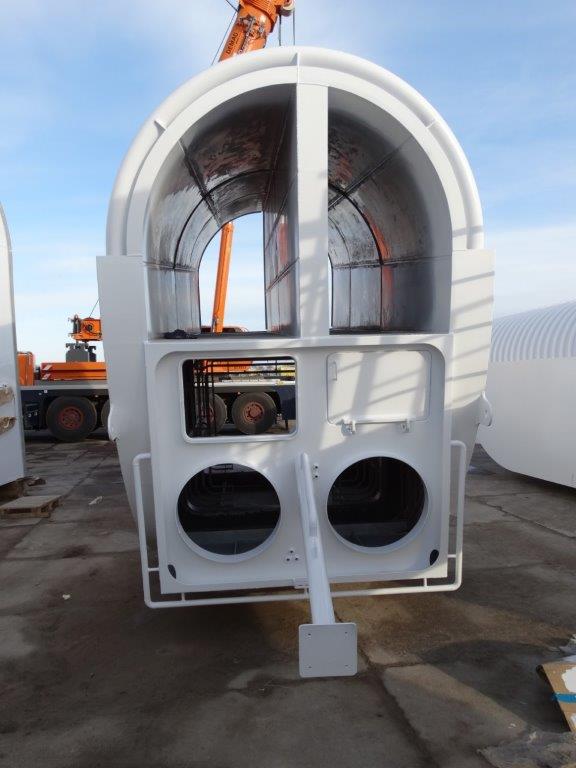

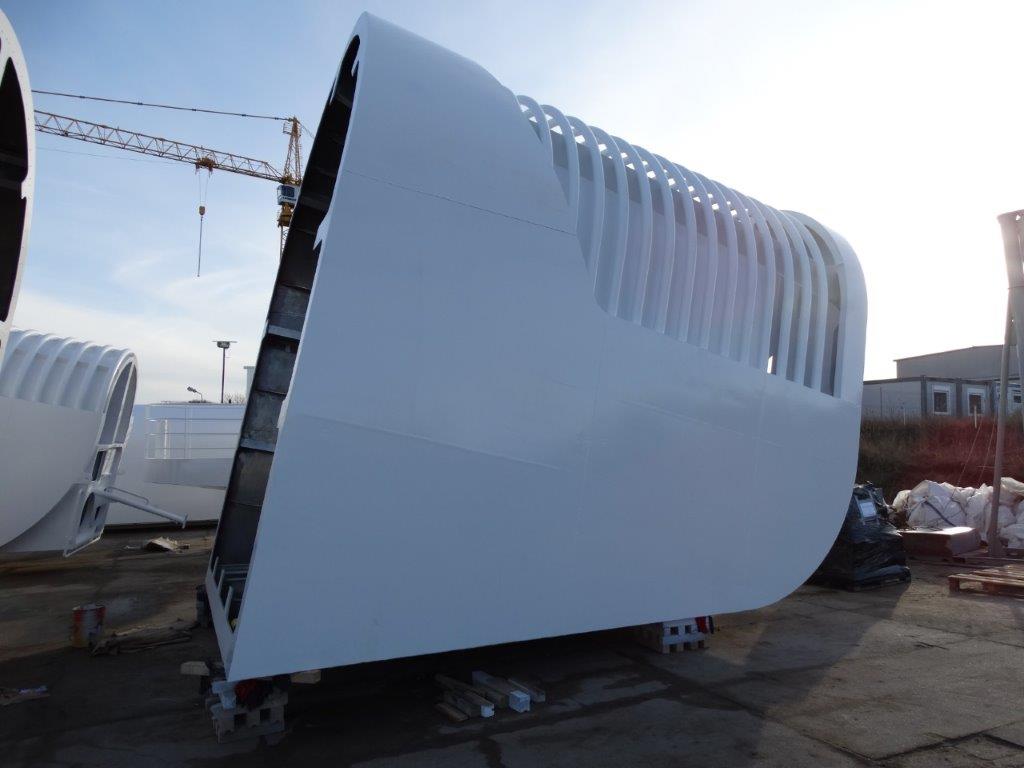

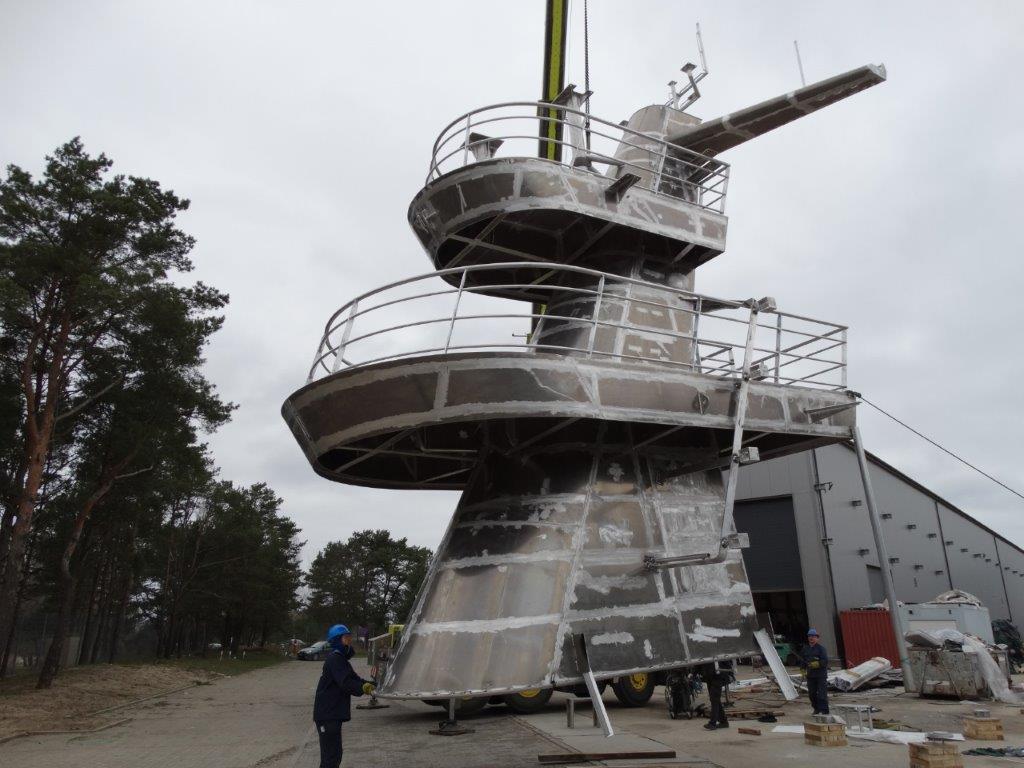

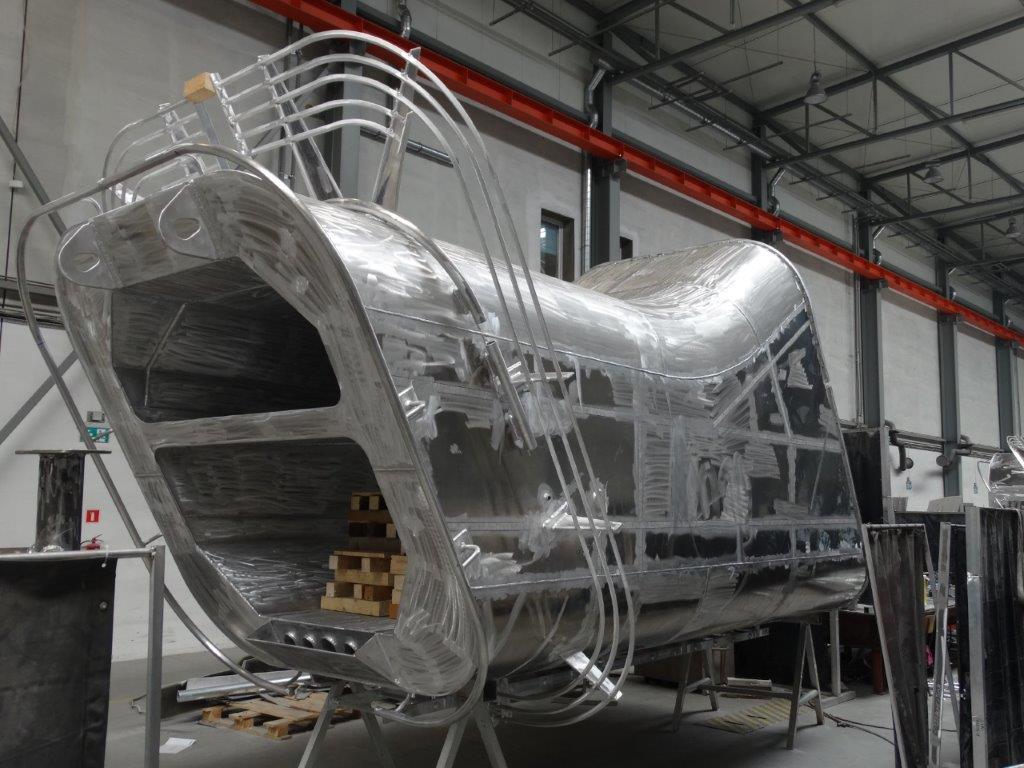

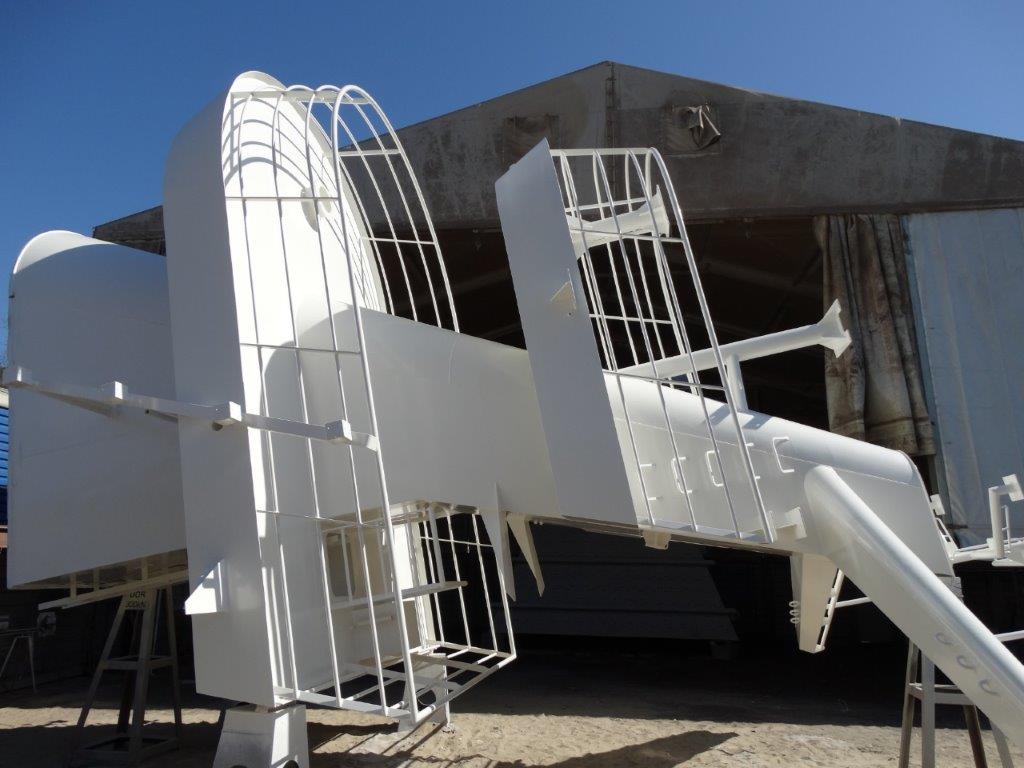

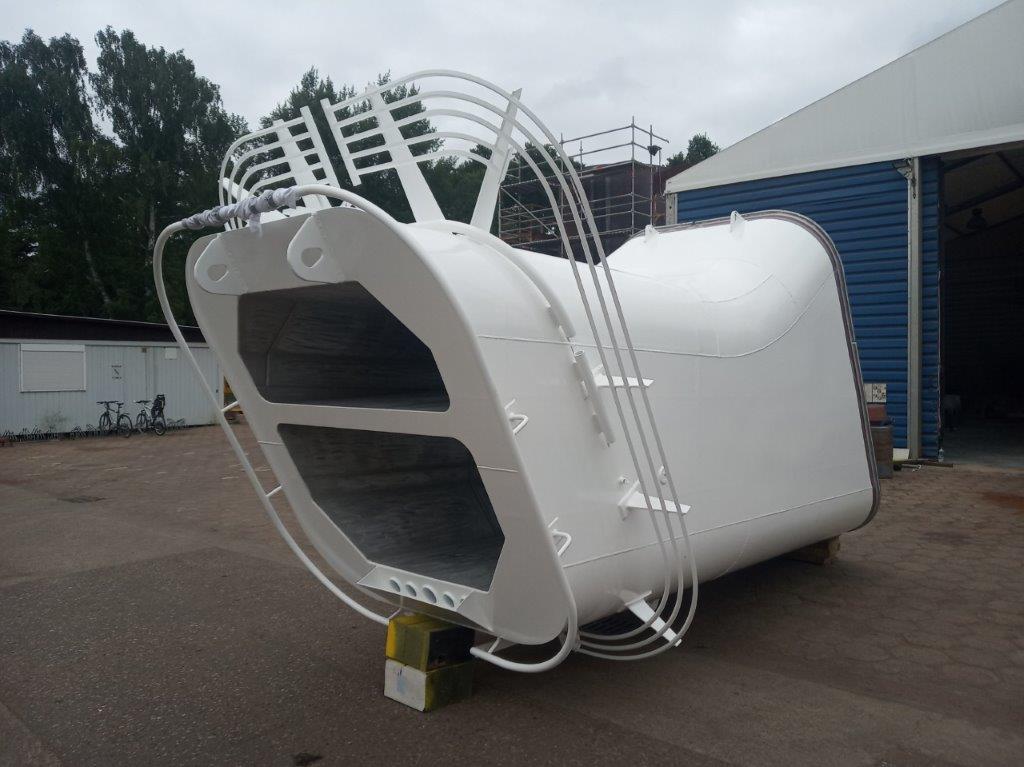

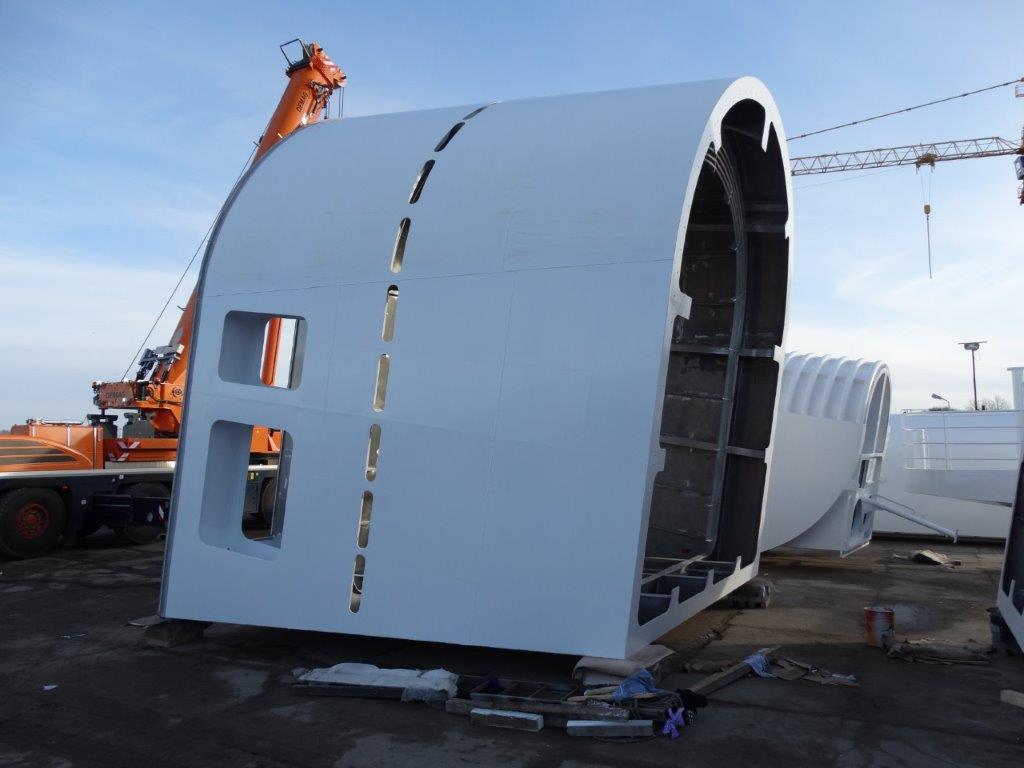

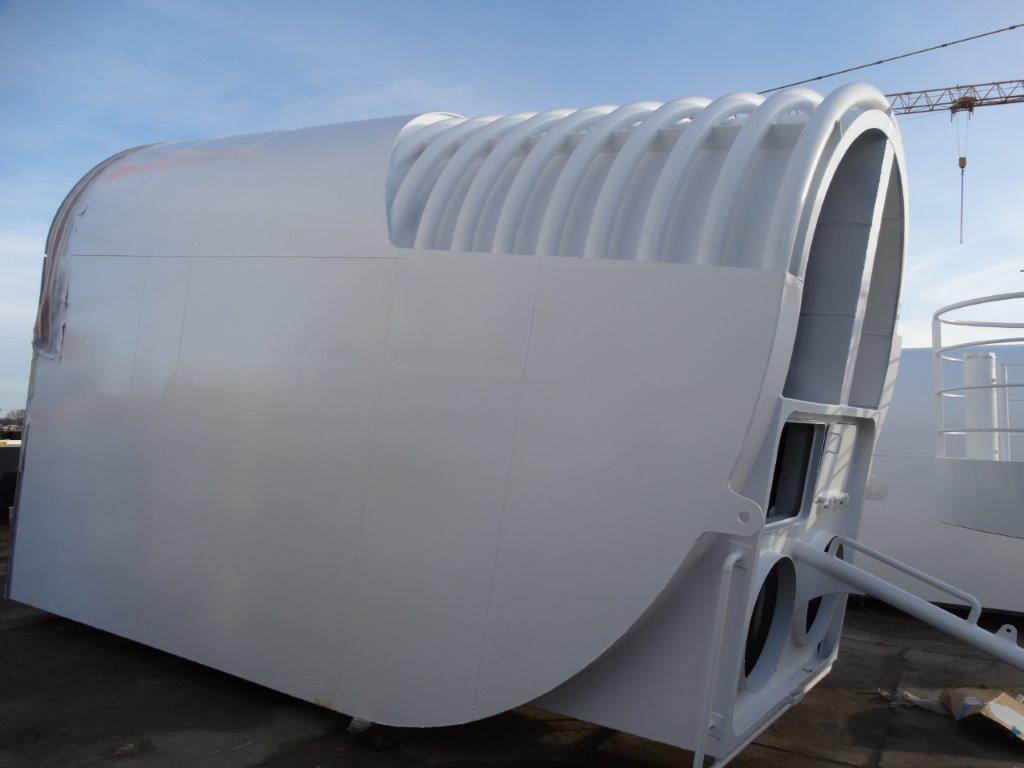

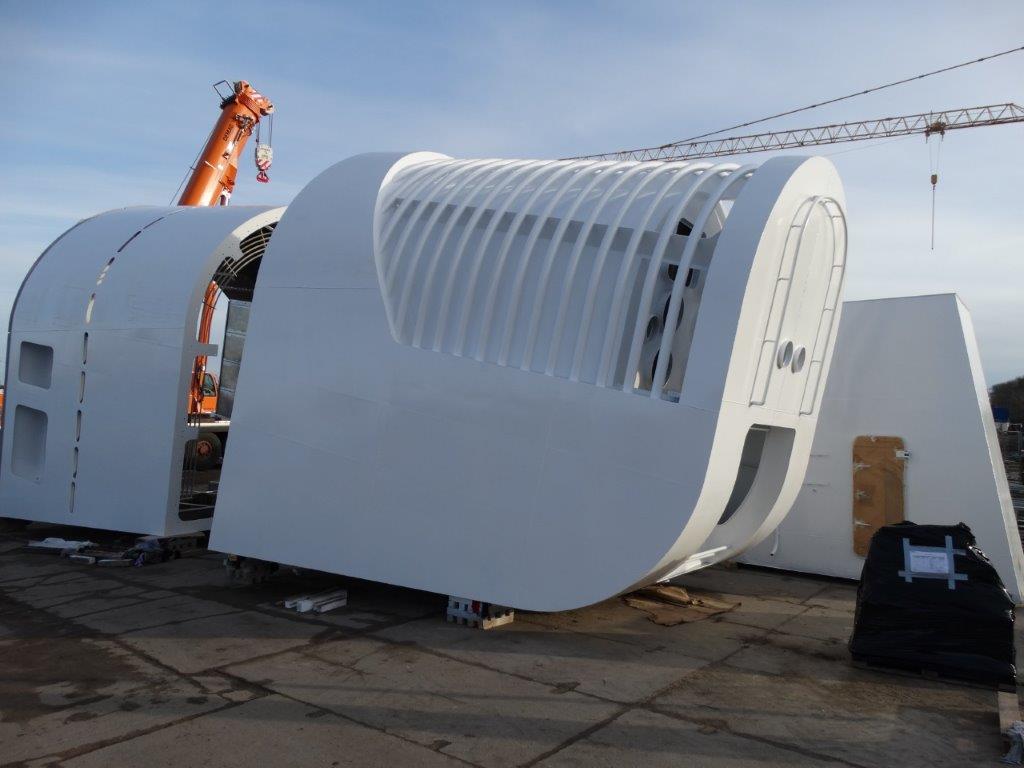

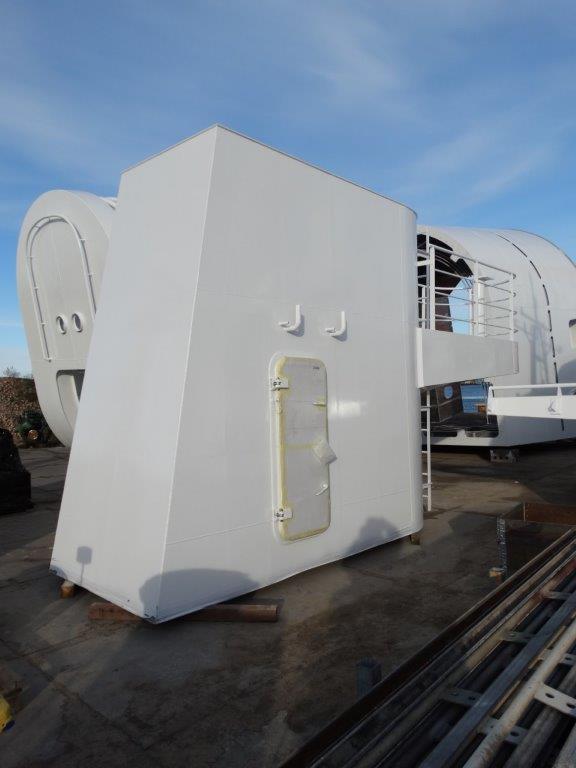

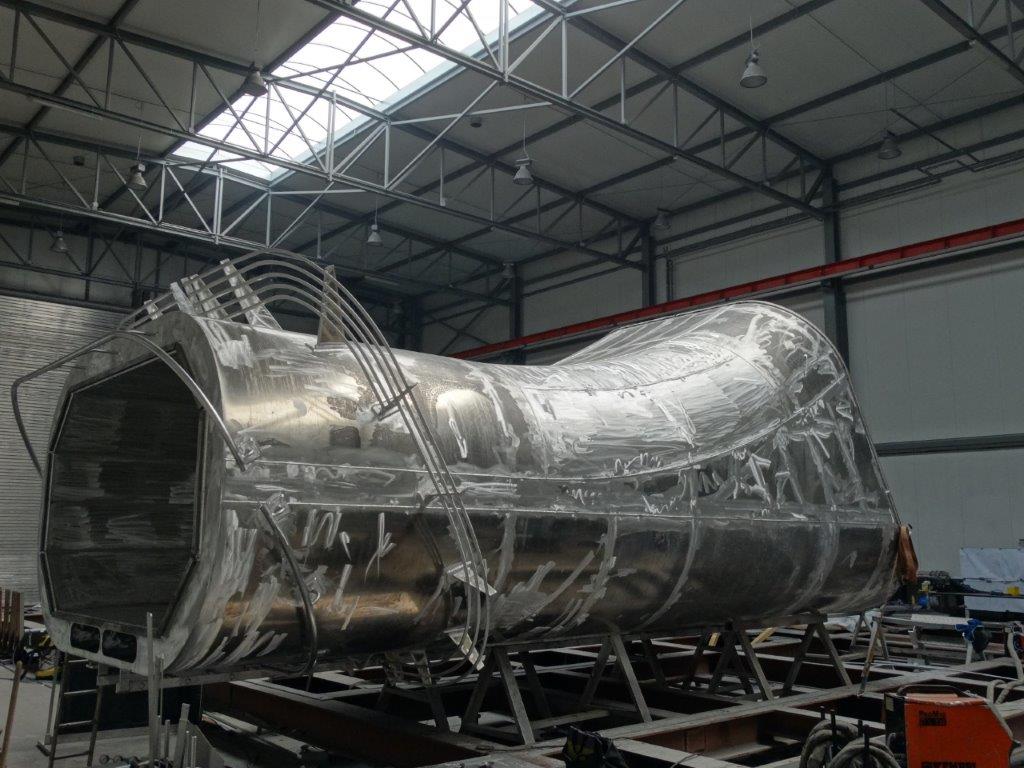

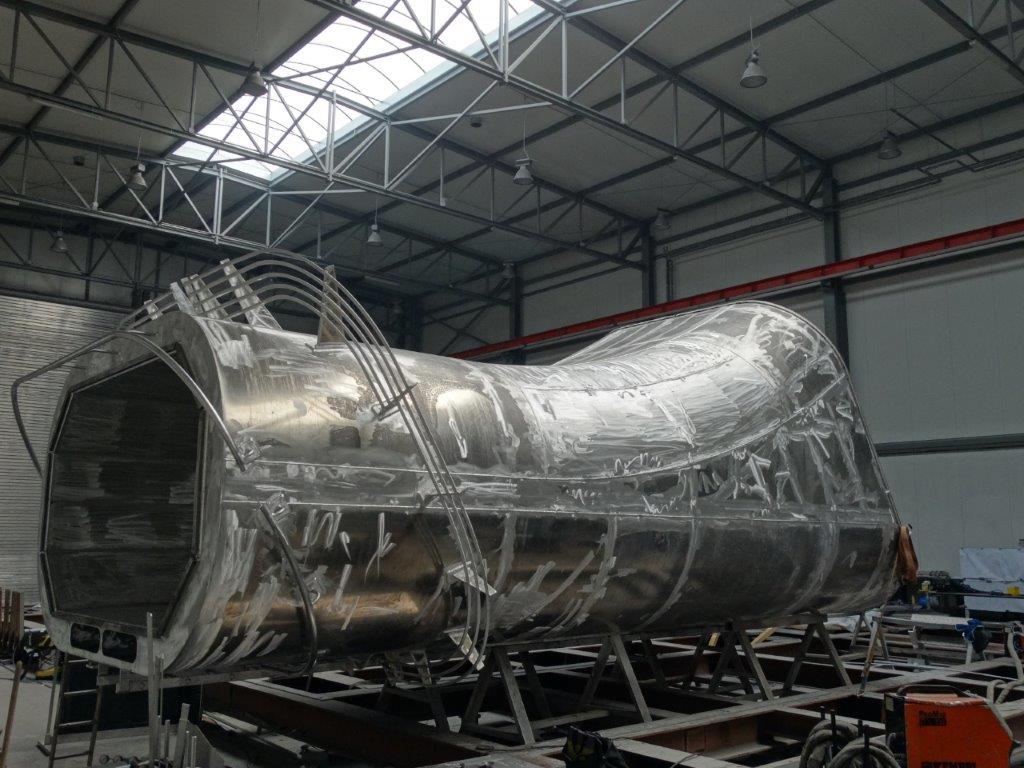

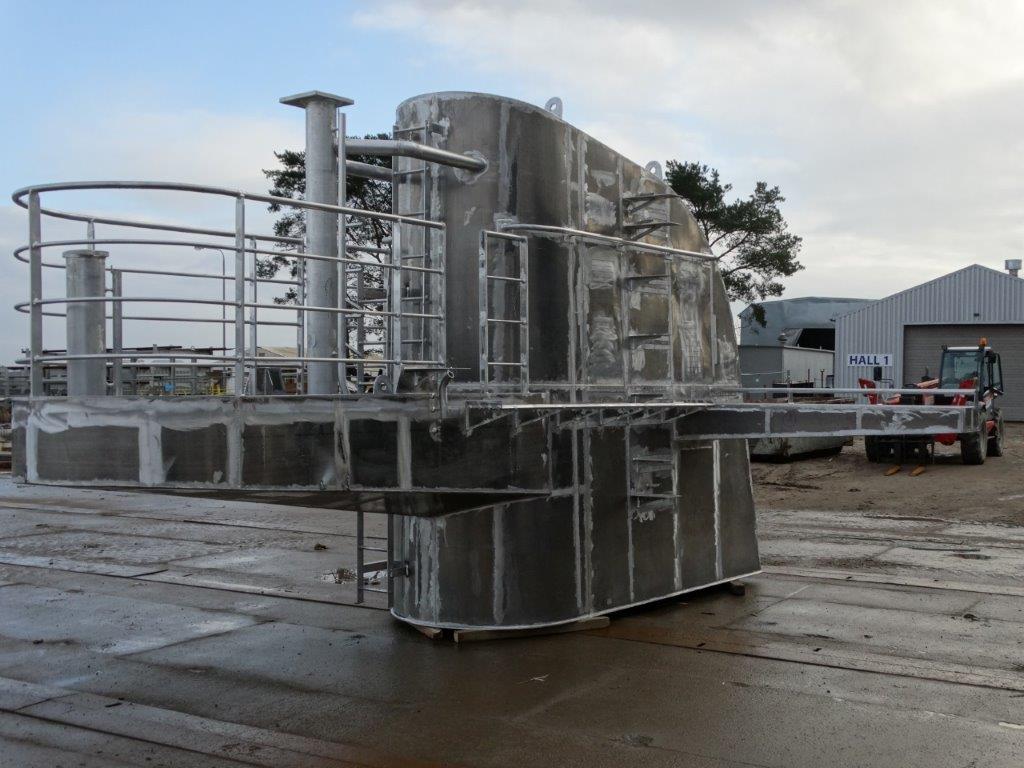

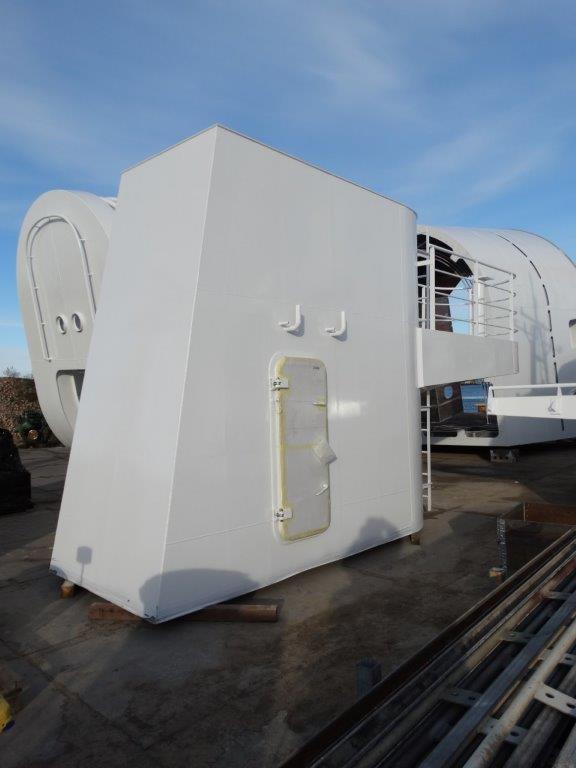

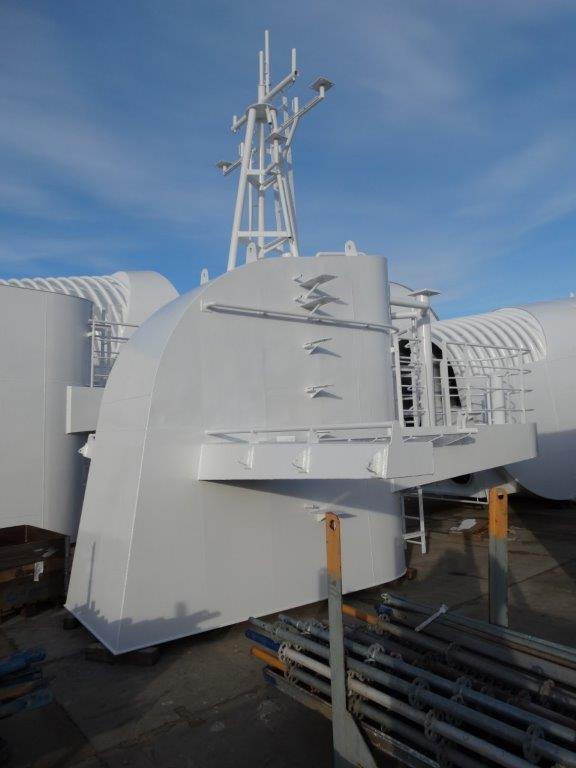

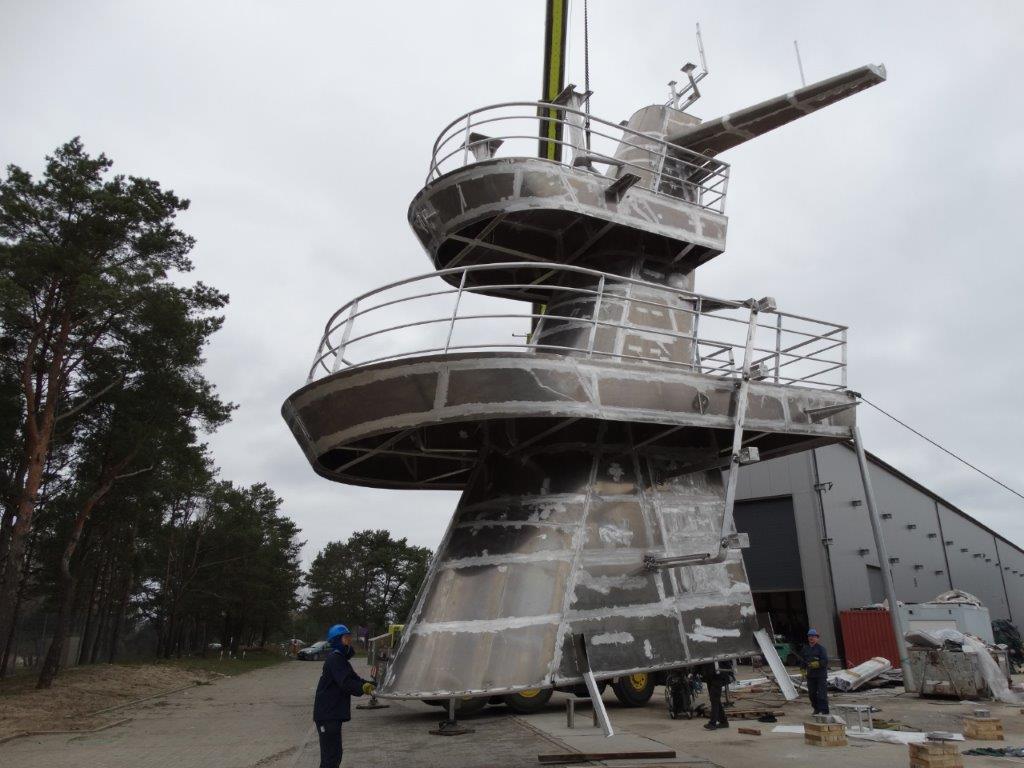

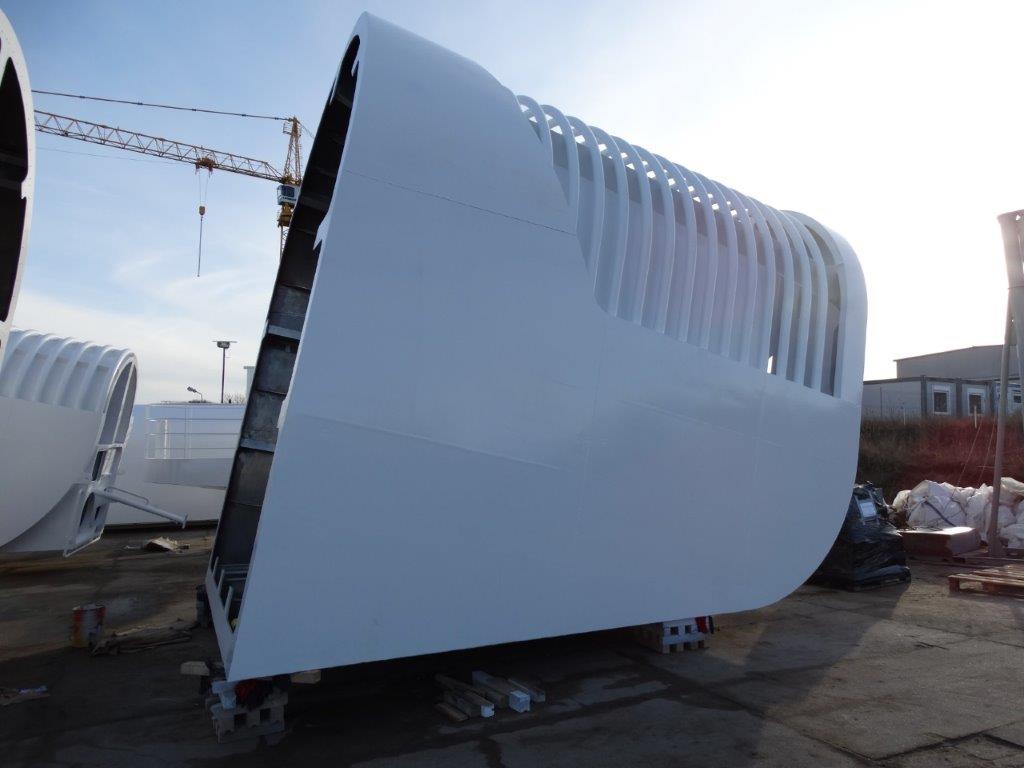

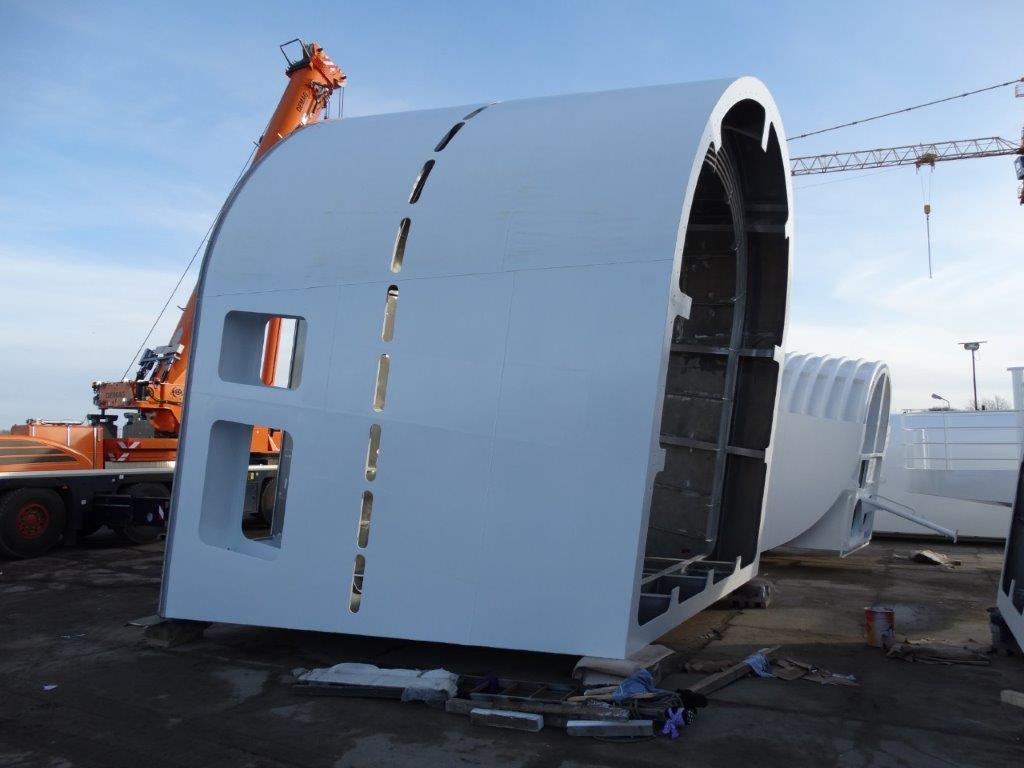

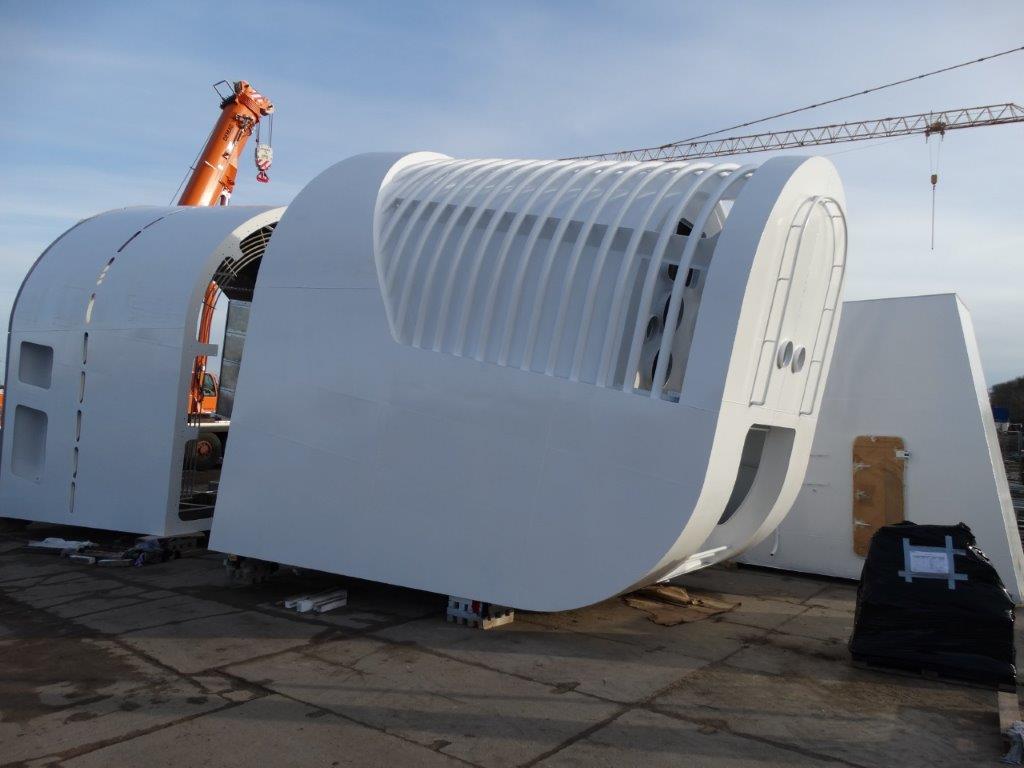

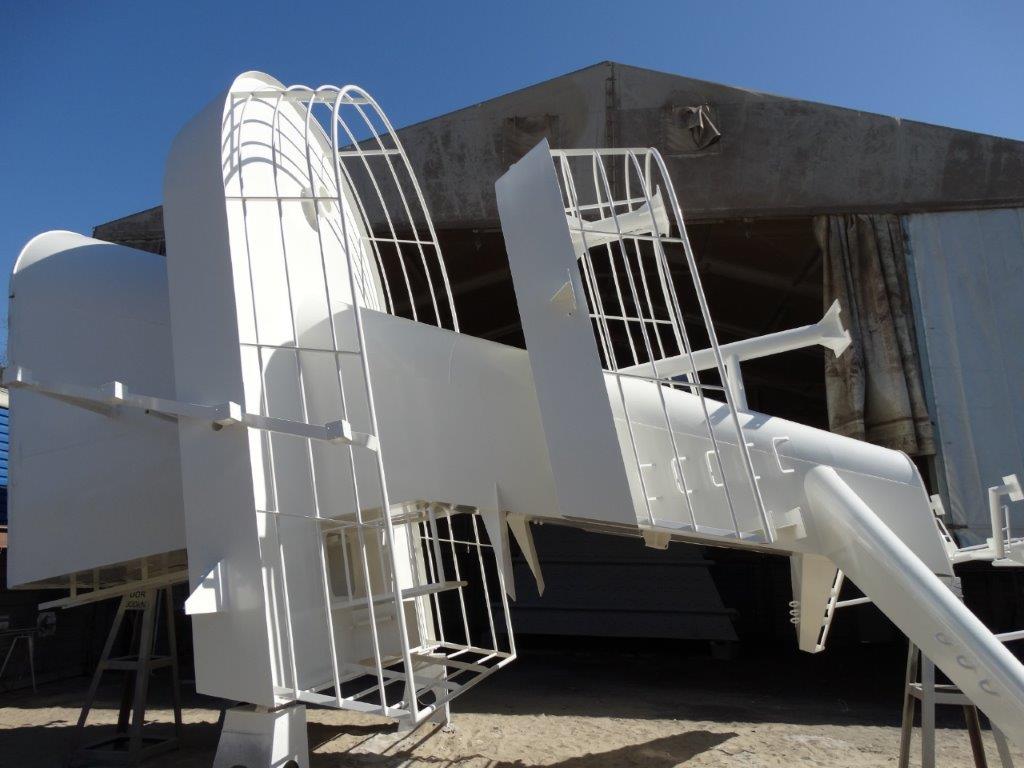

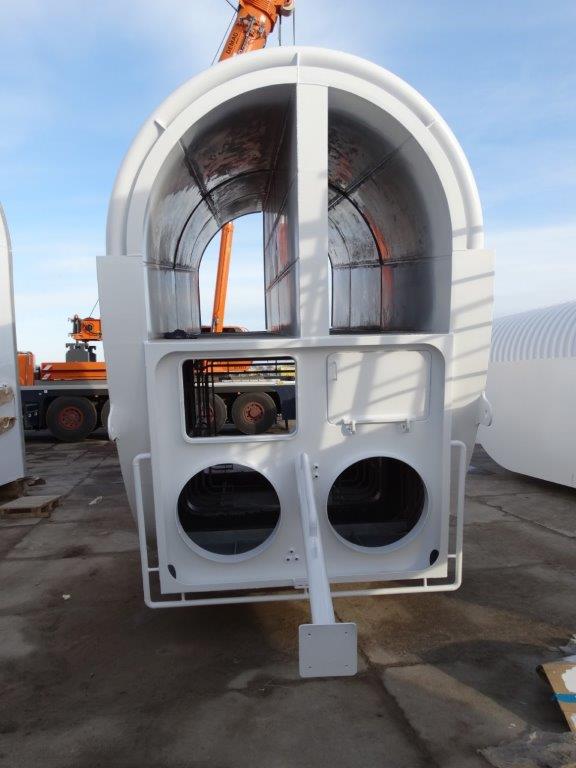

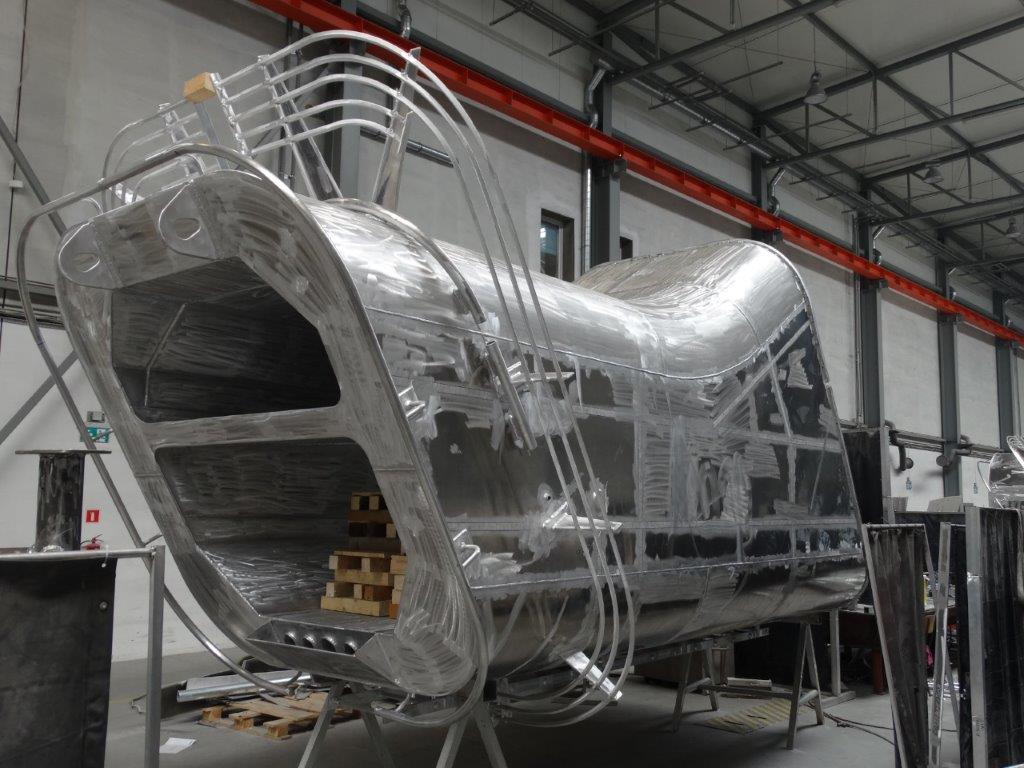

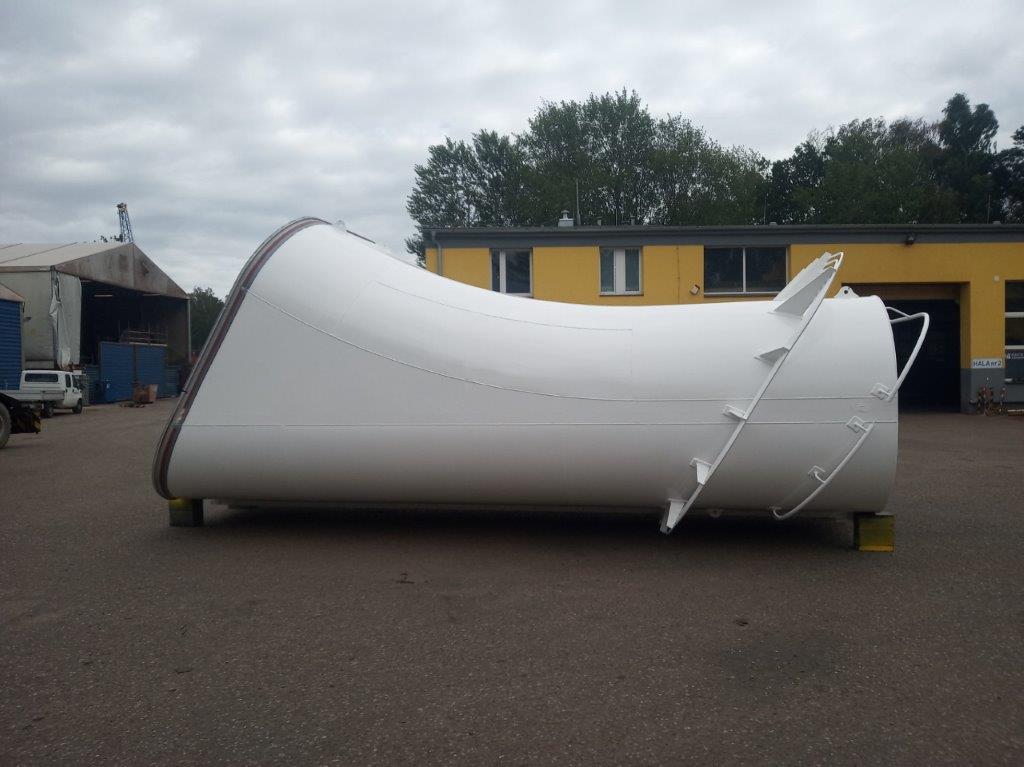

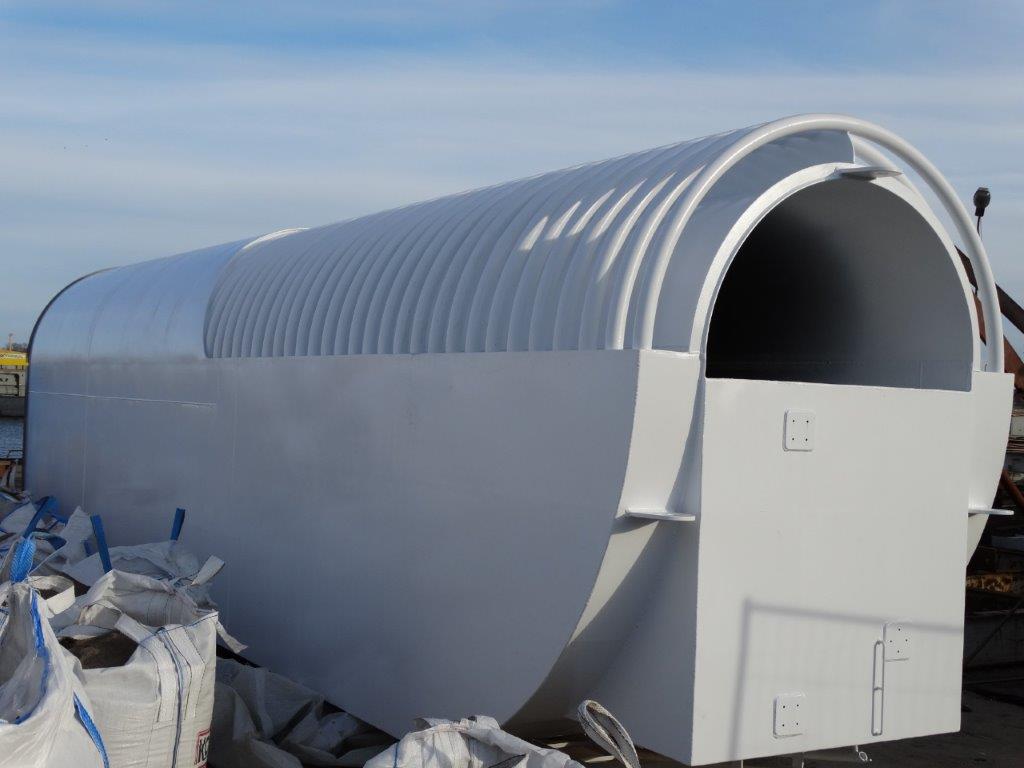

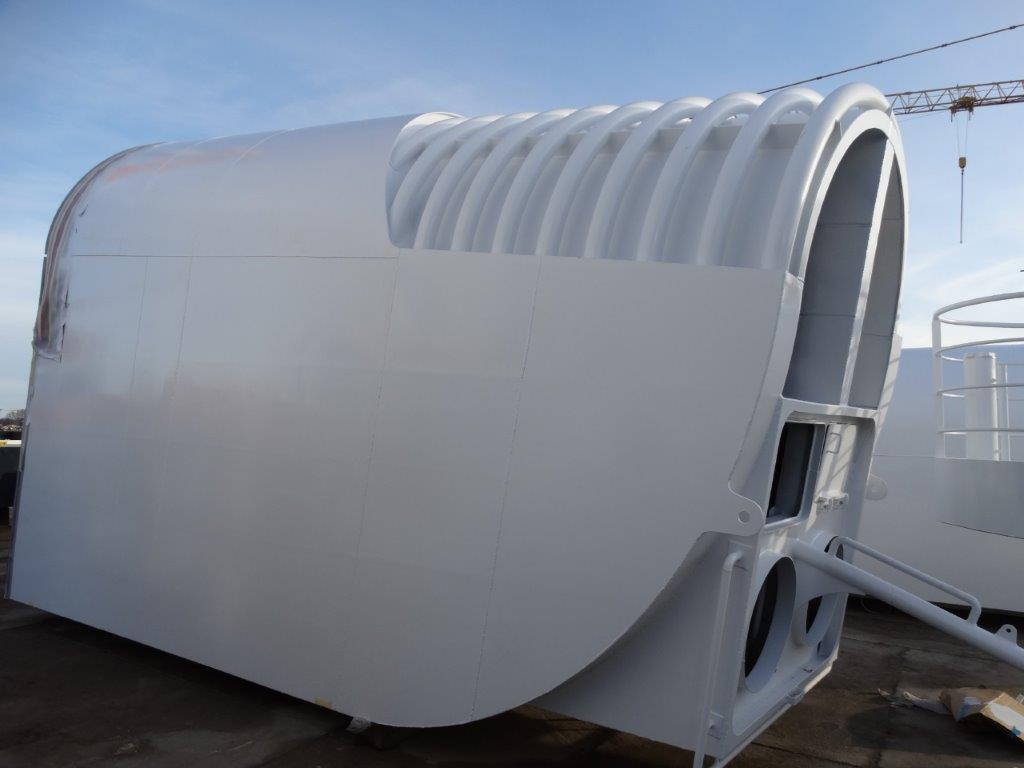

Signal masts and ventilation funnels

Signal mast and ventilation funnels Aluminium Constructions Masts & Funnels

About:

Signal masts, ventilation funnels and exhaust masts dedicated for passenger cruise liners built for German client. Different sizes and constructions. Fully made of aluminium or coated steel alloy with a high resistance to the marine environment.

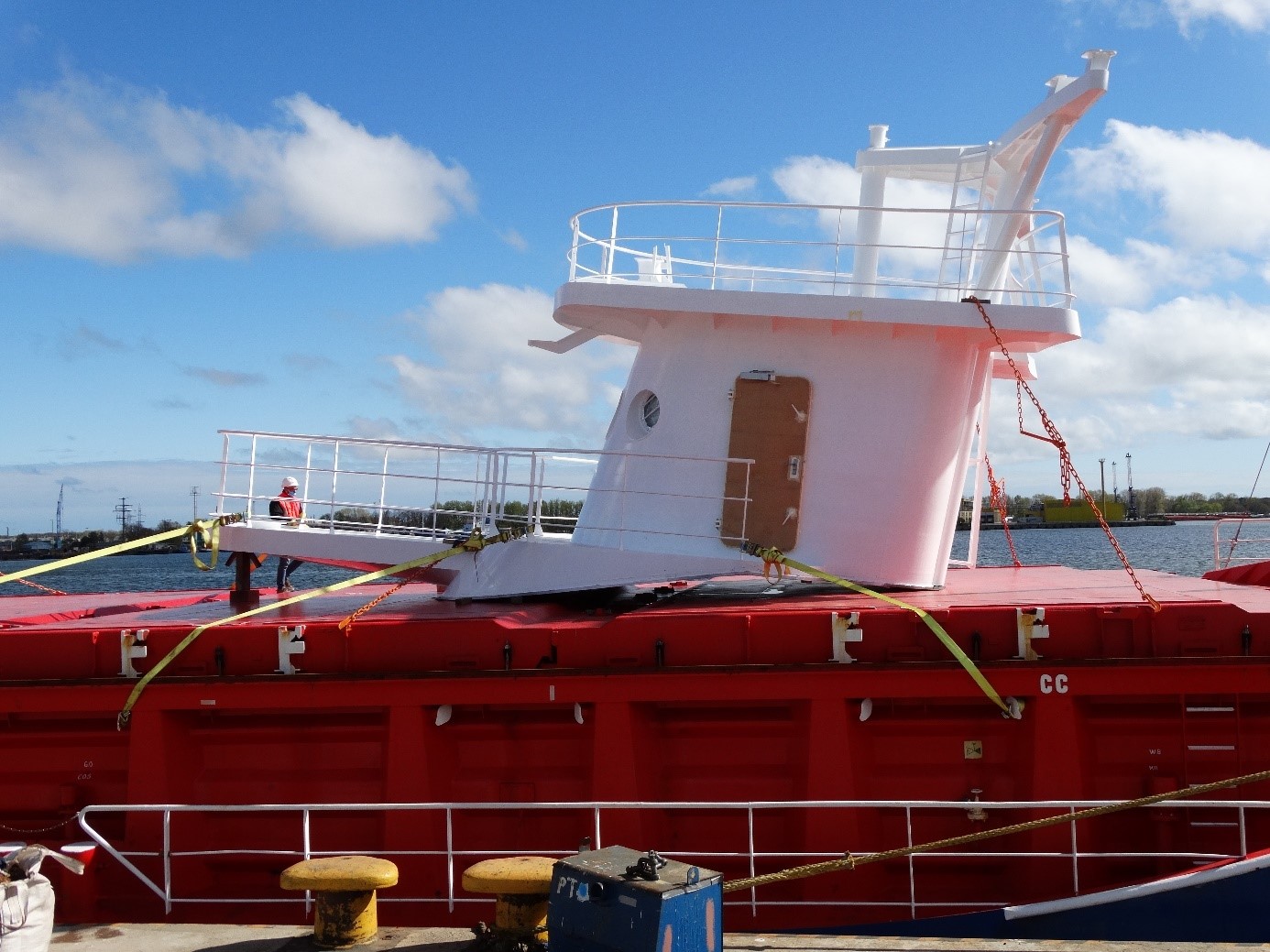

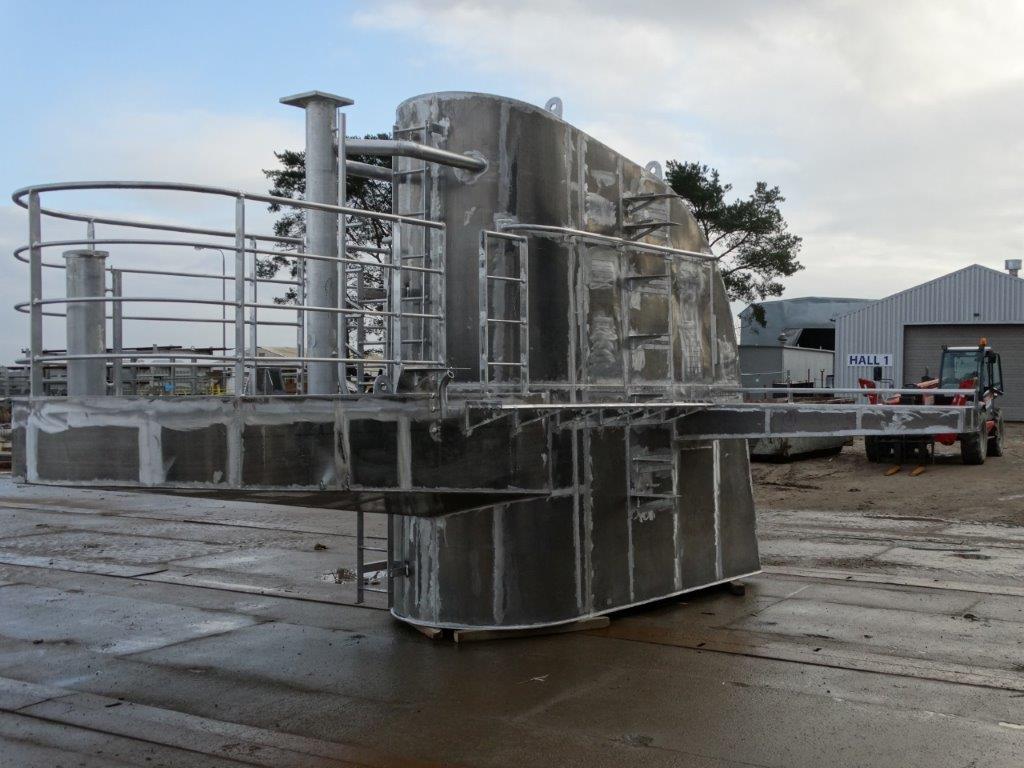

Base for signal mast

Base for signal mast Aluminium Constructions Masts & Funnels

About:

Base for Signal mast for German shipyard building passenger cruisers.
Fully made of aluminium alloy with a high resistance to the marine environment.


Turnkey built vessel: Axel M

Turnkey built vessel: Axel M Aluminium Constructions Turnkey Vessels

Axel M – general

The vessel's main duty will be berthing and other ship handling in harbour and coastal waters such as:

  • Mooring and unmooring vessels
  • Rope running
  • Towing
  • Deck load without tow



The hull is divided into four watertight compartments.

1.         The aft peak is hold and a steering gear compartment.
2.         The engine room has wing tanks for fuel oil
3.         Forward of the engine room is accommodation for two men.

A bulwark is placed all around the main deck and the superstructure is placed well inboard. Aft of the superstructure there is a crane foundation and two towing hooks and a large work deck. The vessel shall have one CP propeller connected to a gear and a diesel engine. One hydraulic pump shall be mounted on PTO of the engine. Clutch and CP also to be operated from the wheelhouse. In the lay-out of this vessel practical usefulness and simple operation are design features. All work will be done on deck without steps or ladders. All equipment on top of the wheelhouse as; radar, search light, etc. shall be protected. The wheelhouse shall have all around view with big windows. The hull is designed for easy manoeuvrability and it is strengthened beyond the class requirements. The vessel is equipped with wet exhaust.

Dimensions

Length over all: 12,00 m
Length p.p.: 10,00 m
Breadth on frame: 4,80 m
Depth to deck: 2,20 m
Frame spacing: 0,50 m

Speed/bollard pull

Speed of the vessel with total output of approx. 450 hp to be approximate 9 knots without tow. Bollard pull to be about 5 tonnes.

Accommodation

The vessel shall have accommodation for 2 persons in one cabin.

Turnkey built vessel: Axel M Aluminium Constructions Turnkey Vessels

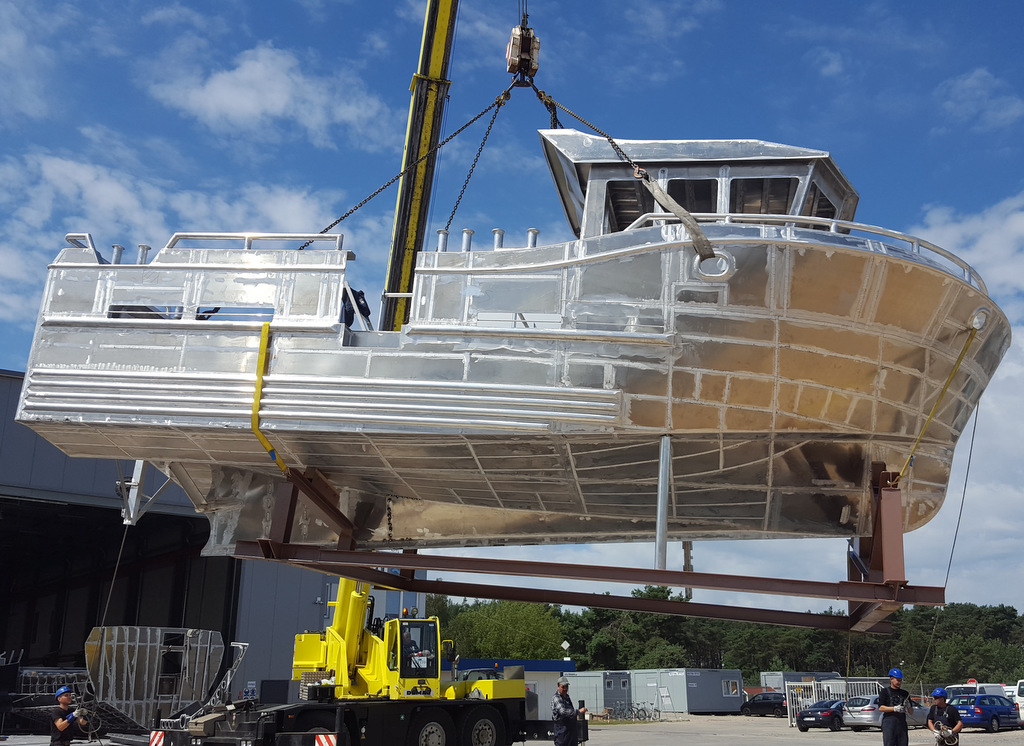

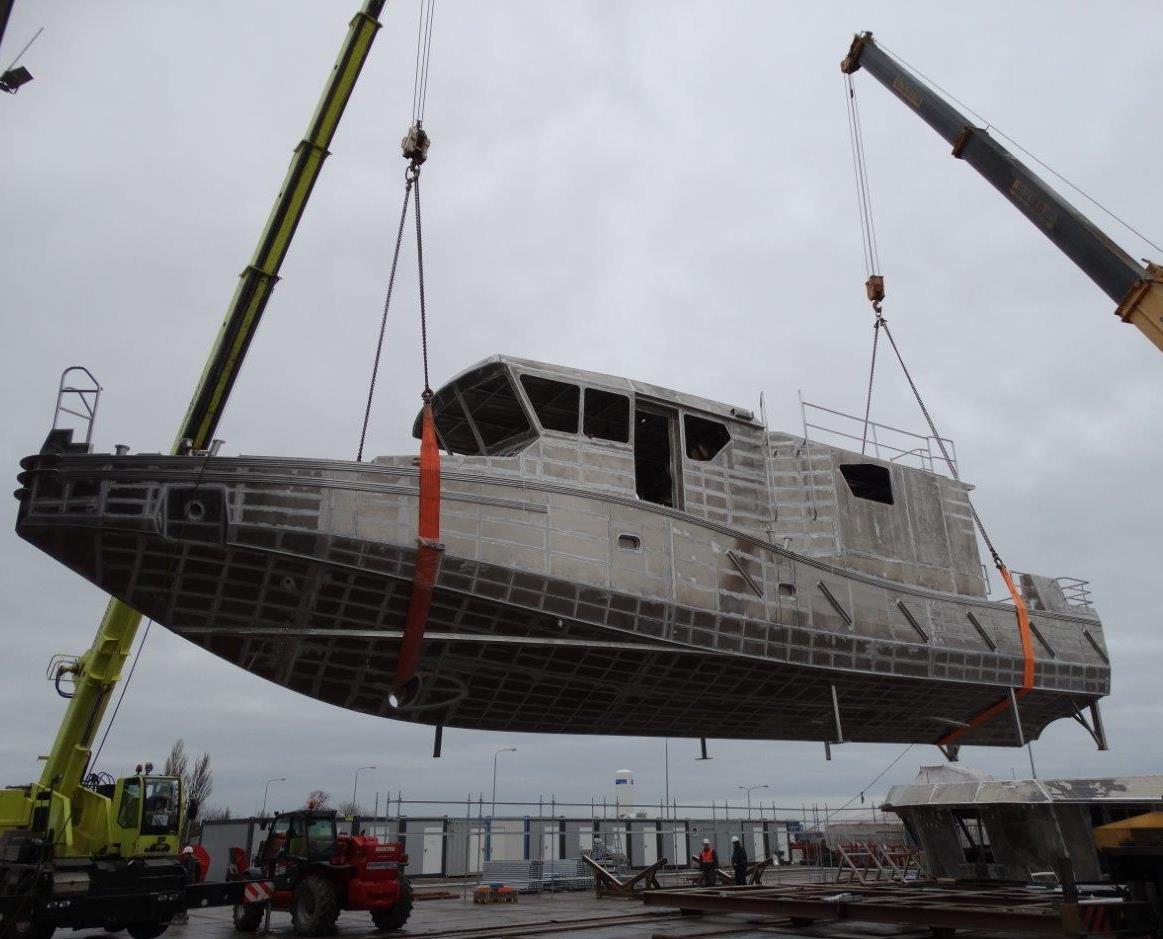

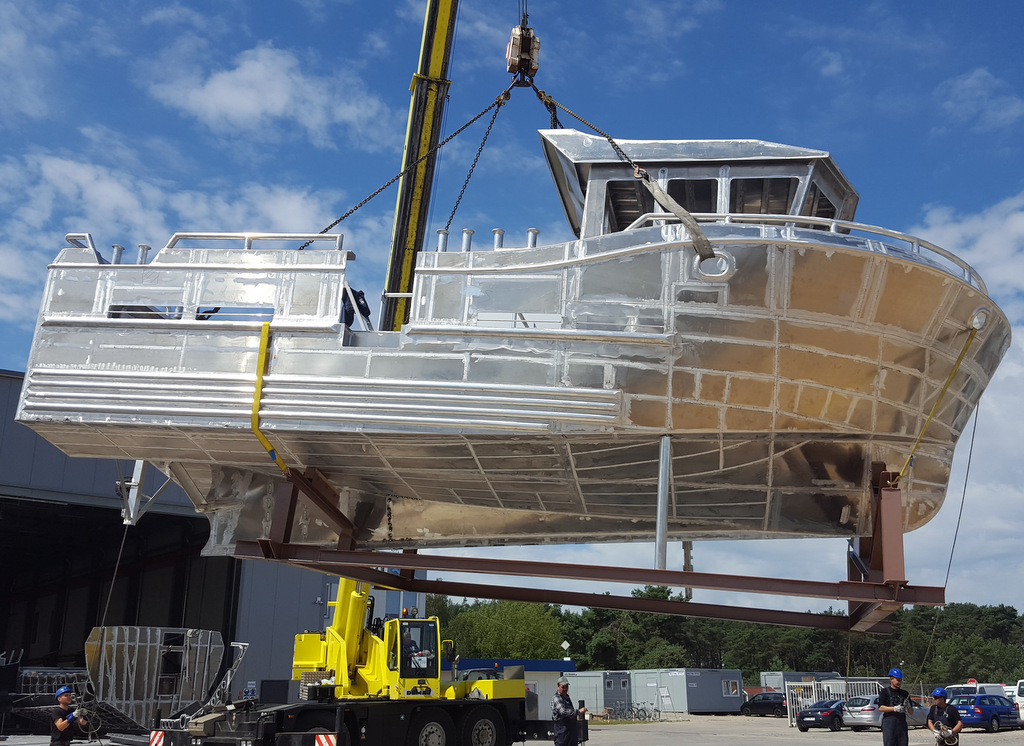

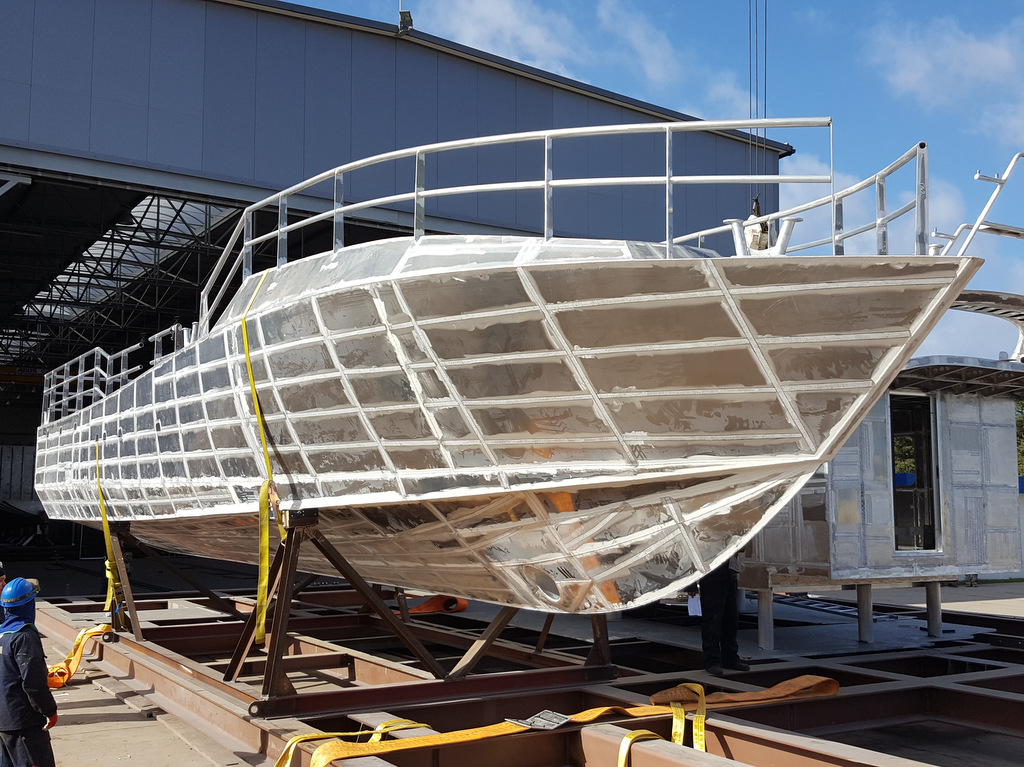

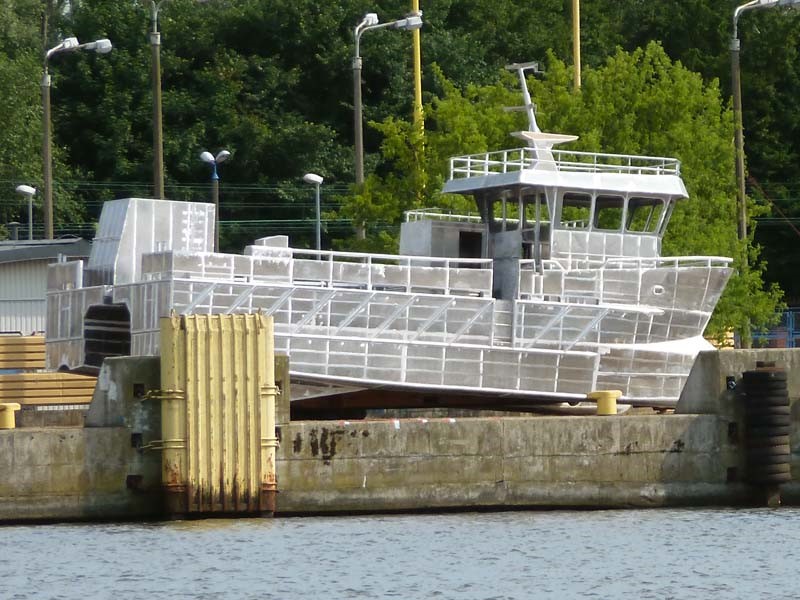

Workboats

Workboats Aluminium Constructions Workboats

About:

Five service units whose final customer was a Norwegian shipowner. These units will be used to carry out maintenance work on fish farms in Norway. Work on the aluminium hulls was completed in November 2016.

Length: 10.4 m
Width: 4.8 m
Weight: 6,100 kg

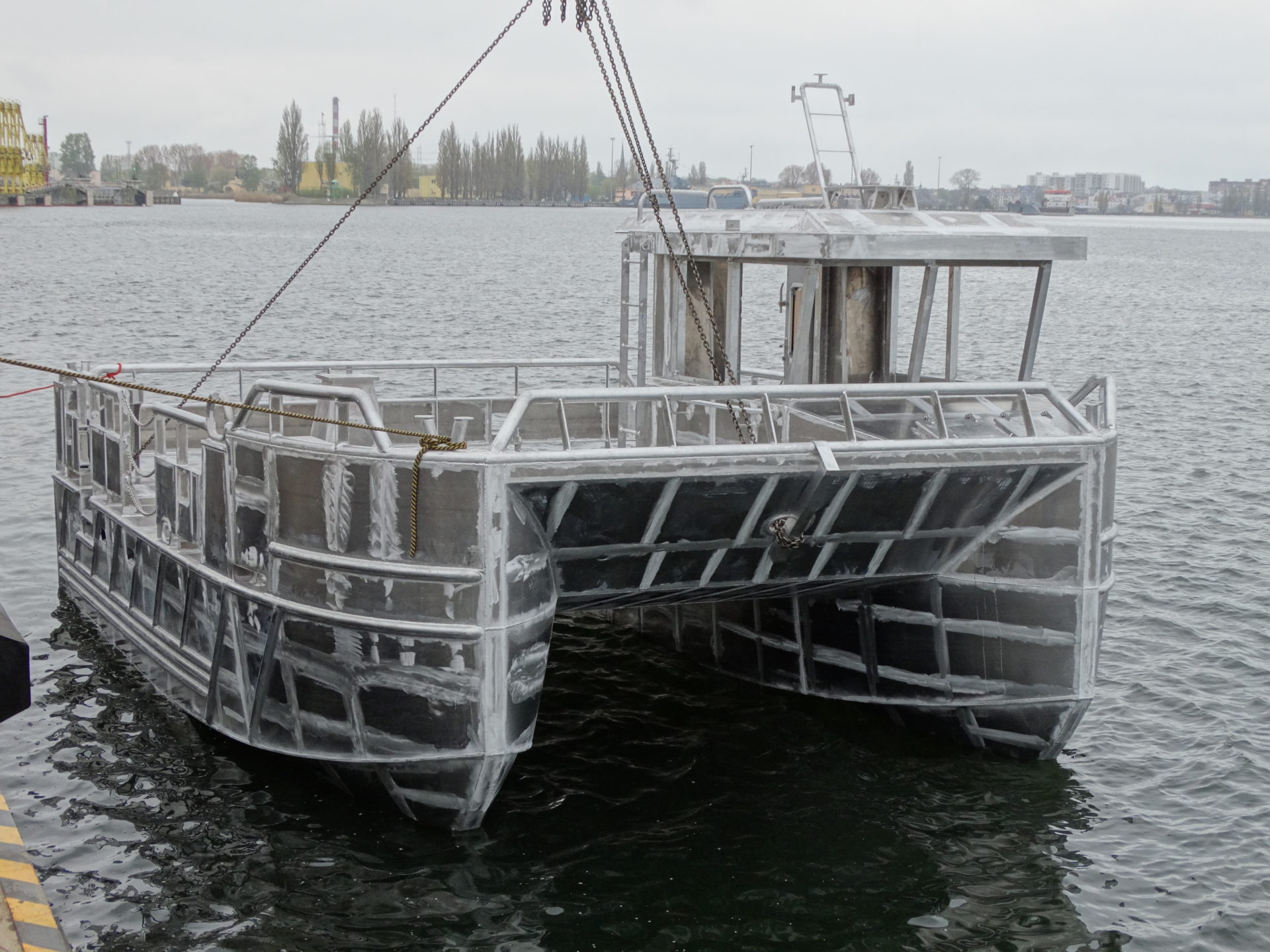

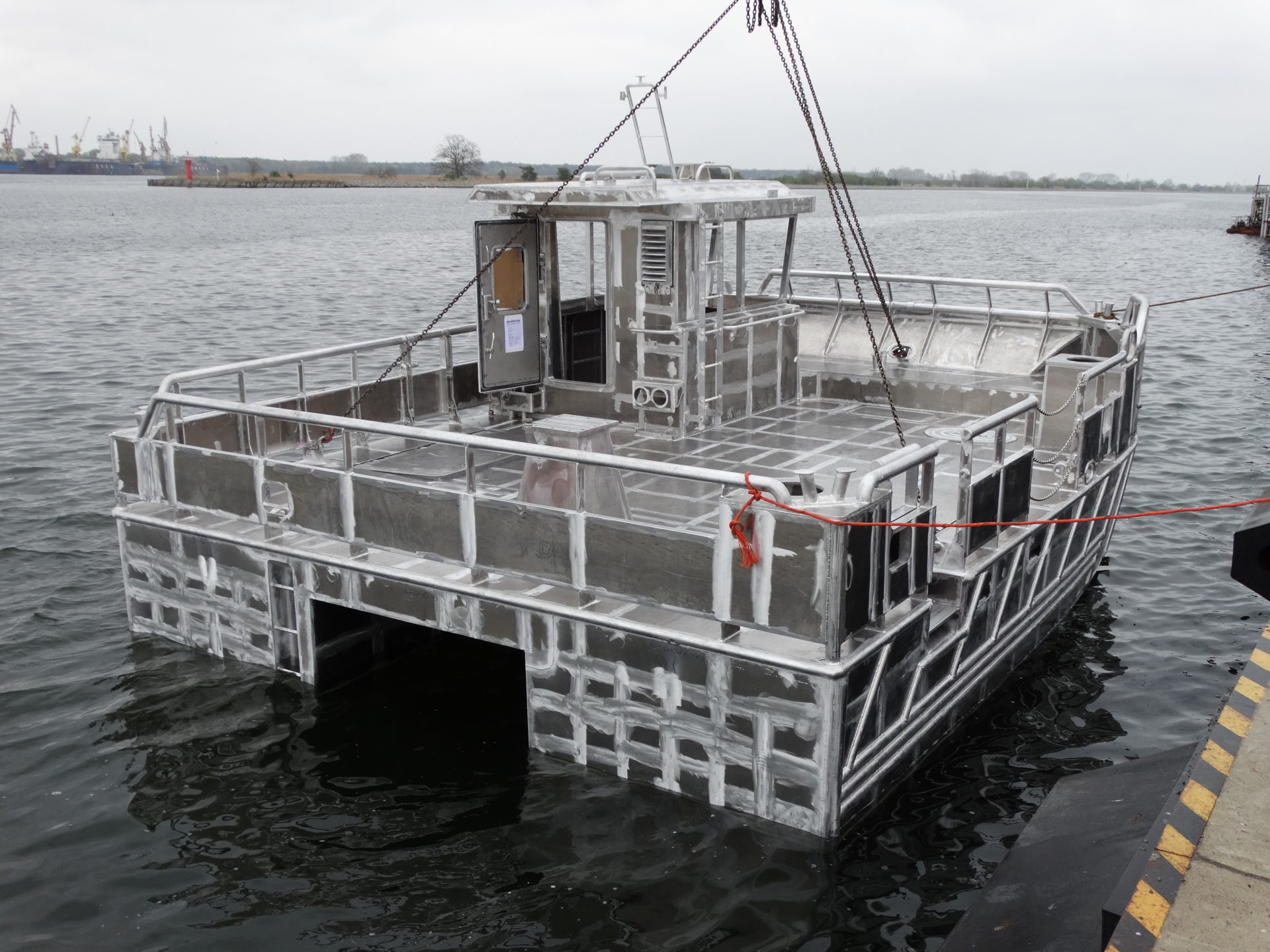

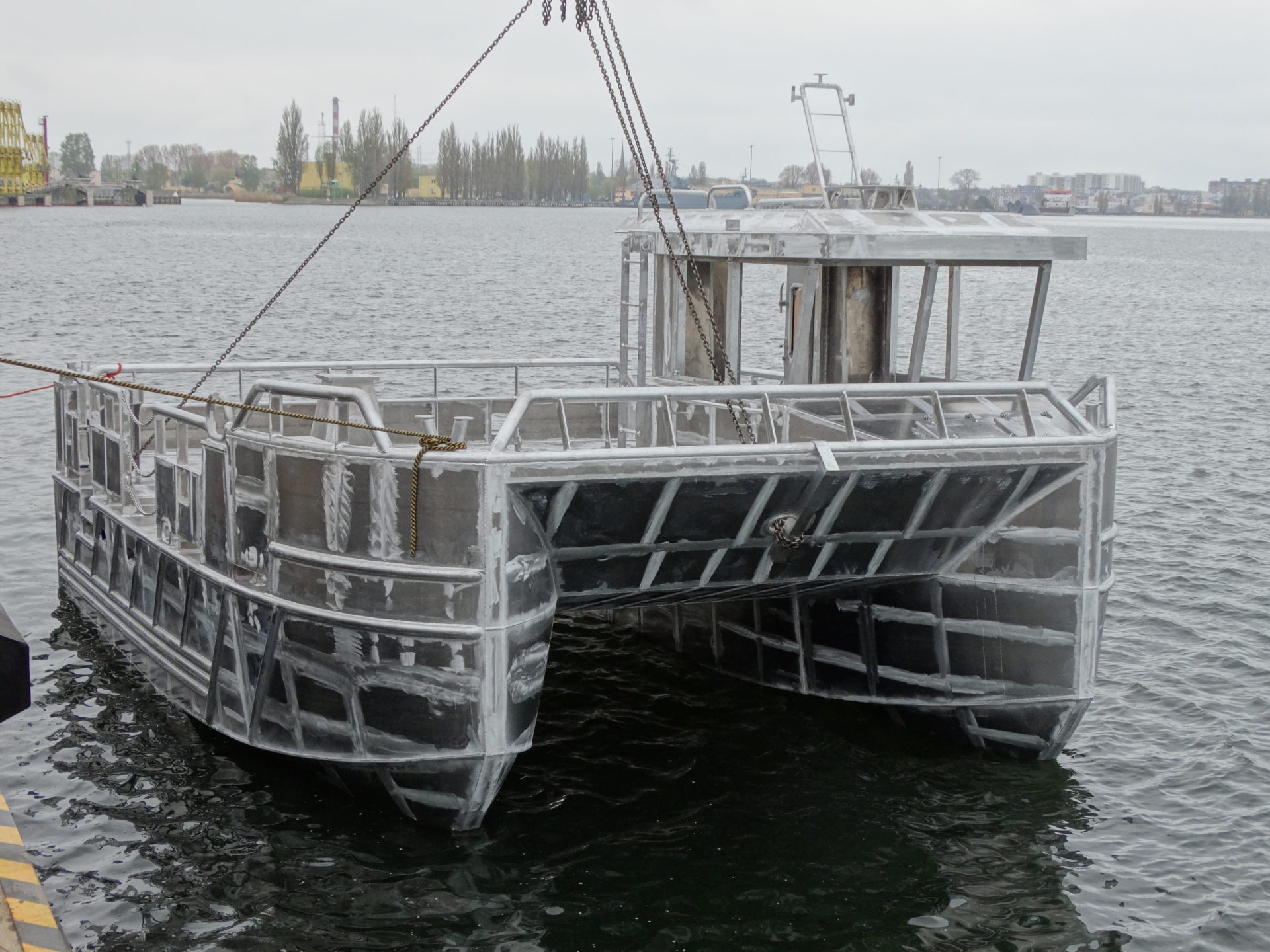

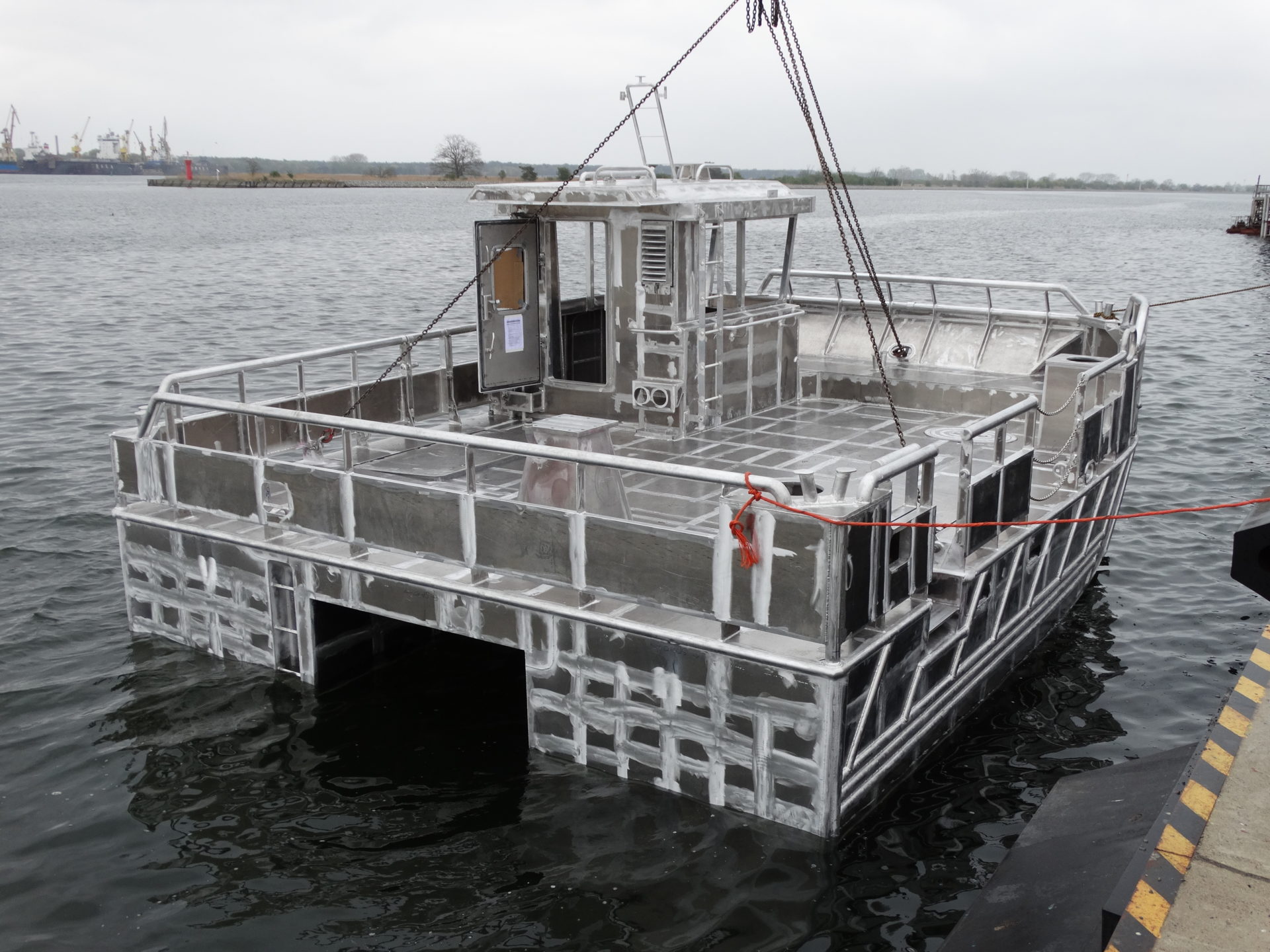

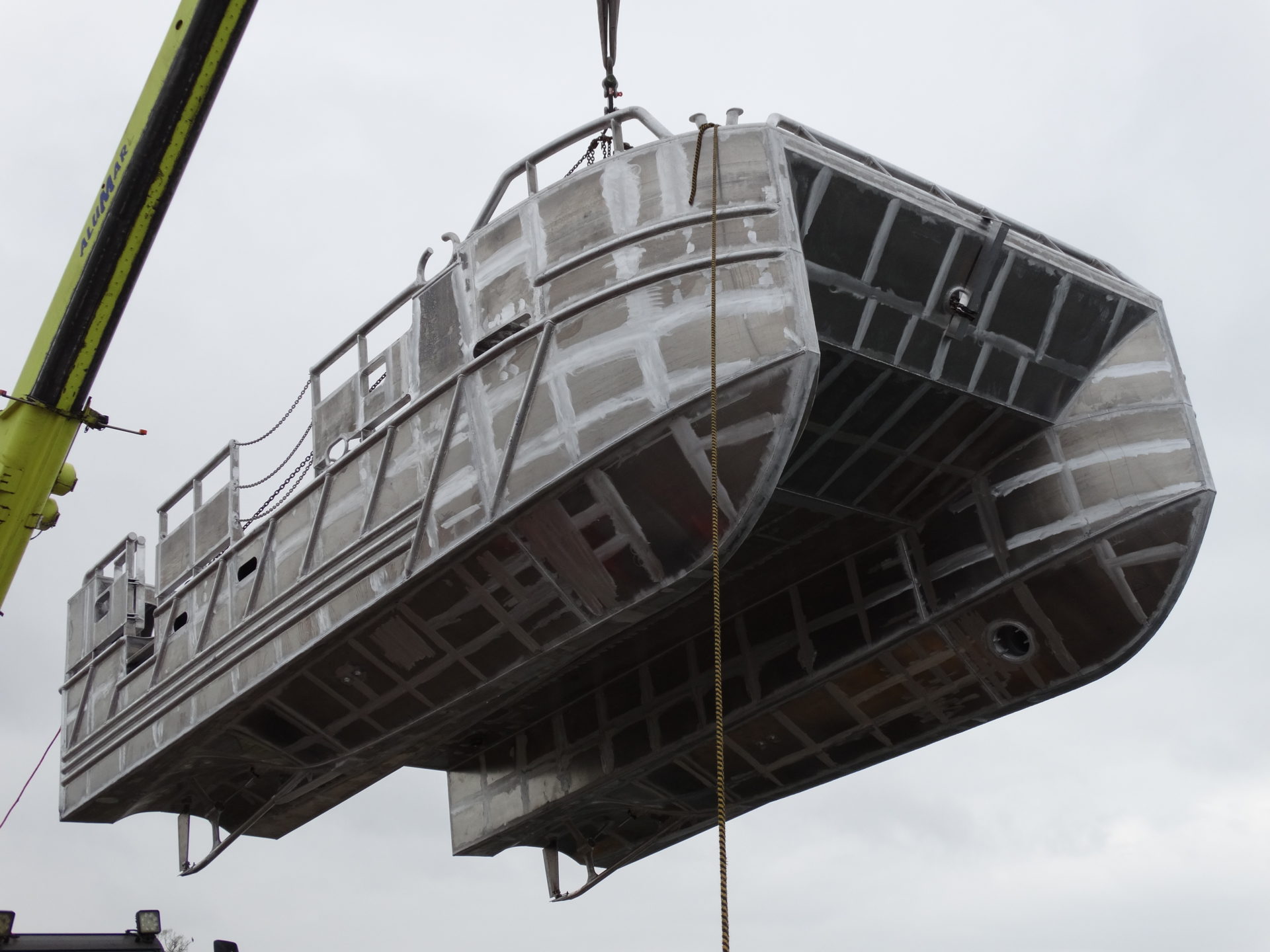

Aluminum catamaran

Aluminum Catamarans Aluminium Constructions Catamarans

About:

Work catamaran designated for servicing fish farms. Could be used as fishing cruises for anglers or any jobs, by port authorities, institutions. Built 4 pieces for Norwegian client.

  • Length: 7,95,
  • Width:5,70,
  • Weight 5.200 kg

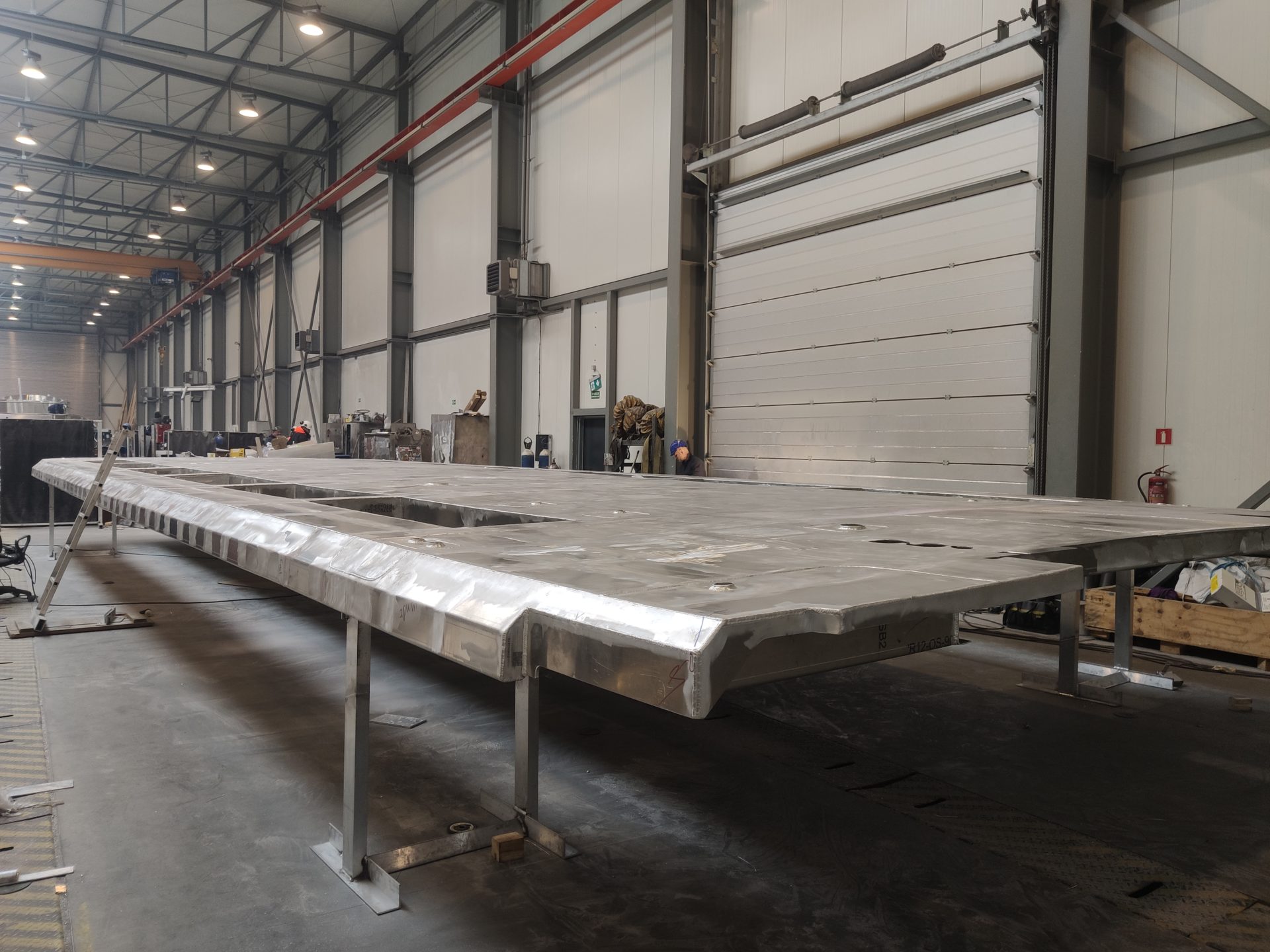

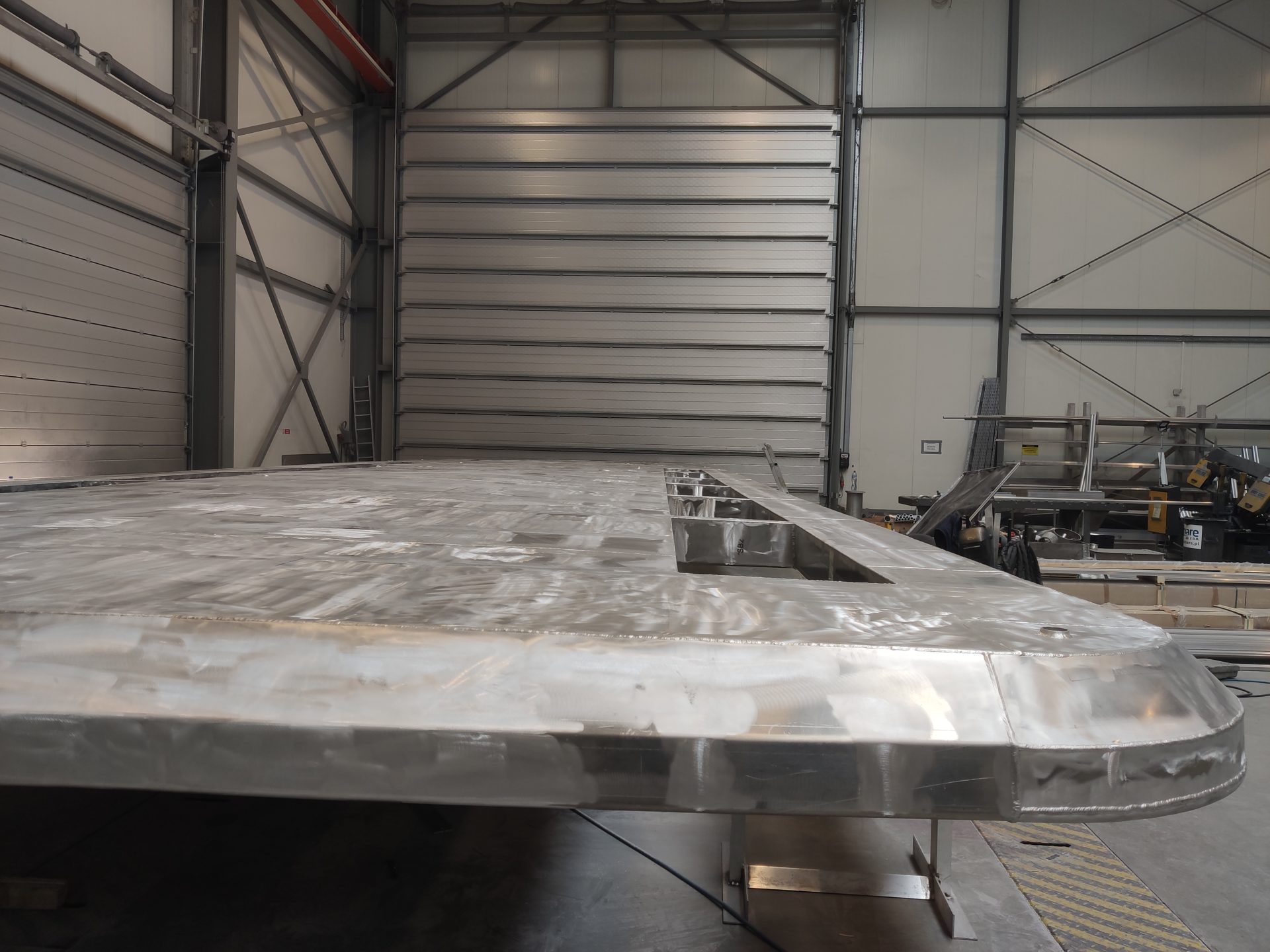

Ship Roof Elements

Ship Roof Elements Aluminium Constructions Constructions

About:

Aluminum light roof element for touristic river ferries. Made from thin aluminum plates and transported as oversize on truck. Built 5 pieces.

Dimensions: 16x5,20m, 1.500 kg




Speedboat Alusafe 2000

Speedboat Alusafe 2000 Aluminium Constructions Speedboats

About:

  • 21,90m x 5,60m
  • 12.500 kg

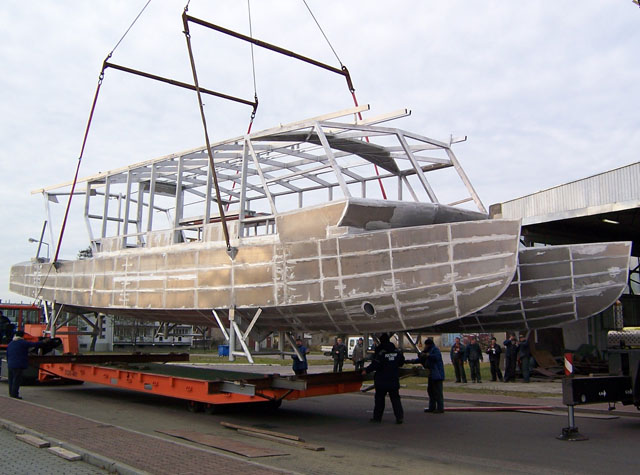

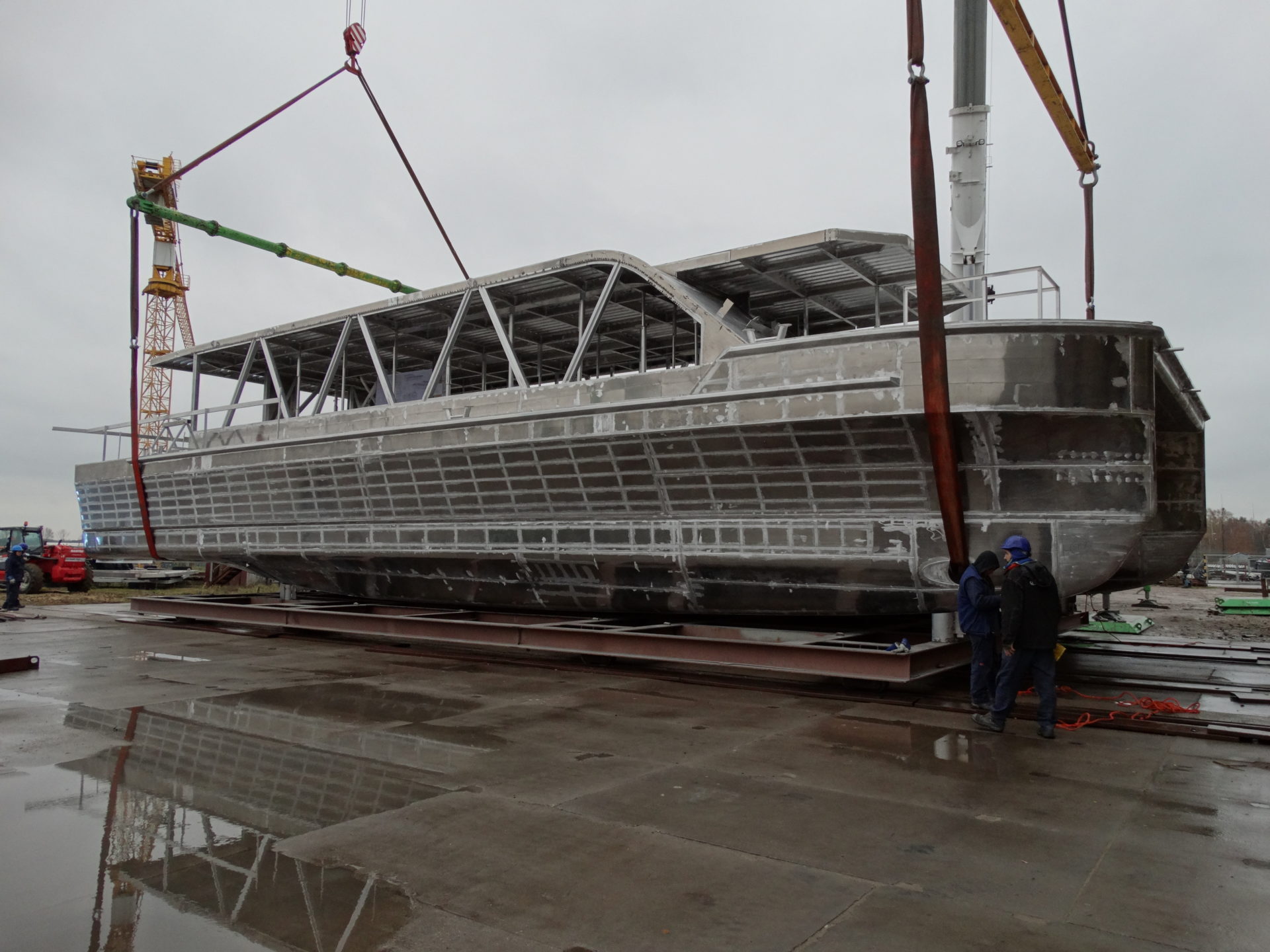

Sunpowered catamaran

Sunpowered catamaran Aluminium Constructions Catamarans

About:

Passenger catamaran used for recreation purposes or workers transportation on lakes and rivers by using only natural sources for electrical power (conversion of solar radiation energy into electricity as a result of photovoltaic phenomenon). Built 2 pieces for German client.

  • Lenght: 18,0 m
  • Width: 5,0 m
  • Weight: 4 500 kg

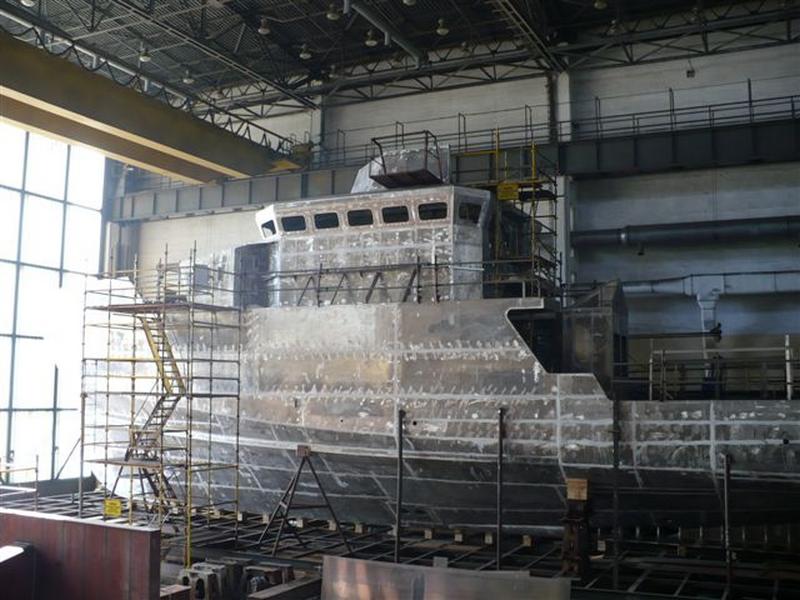

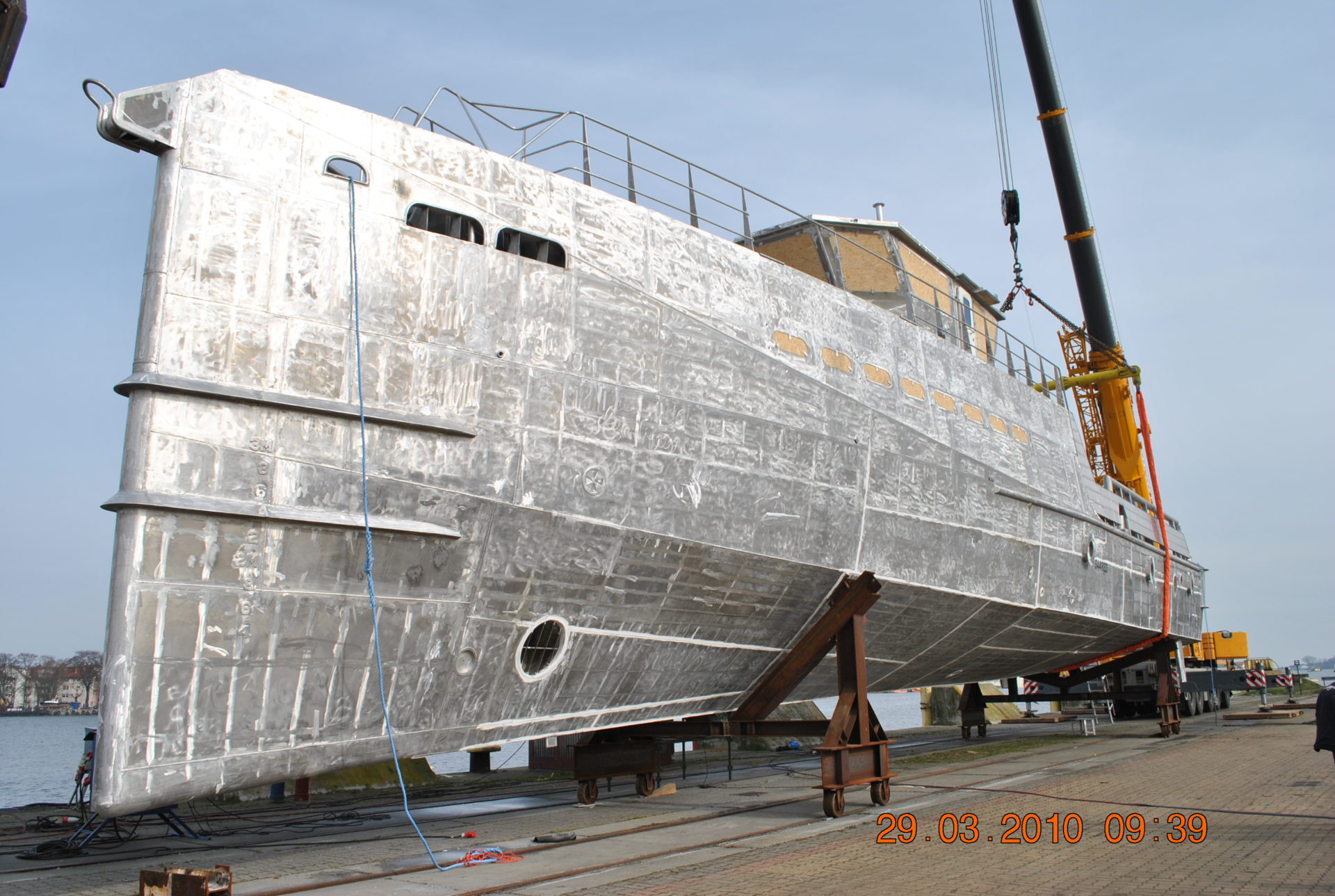

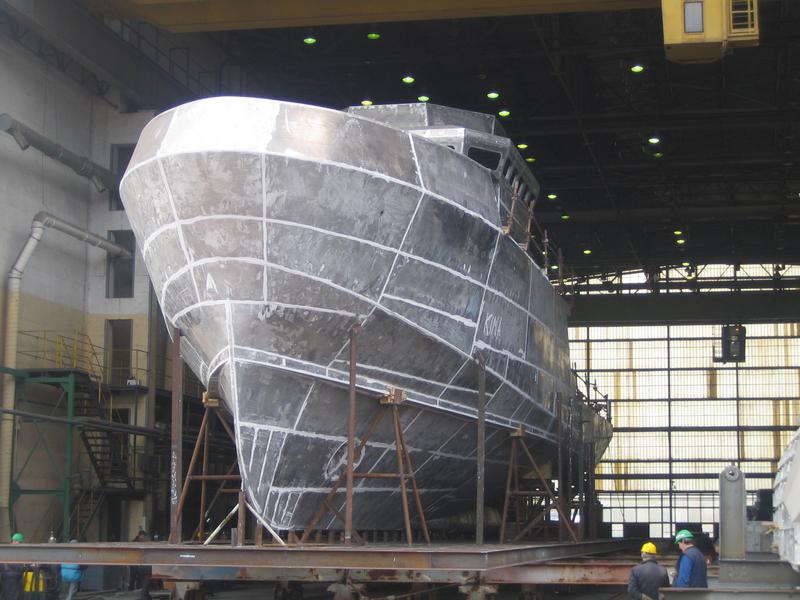

SAR 3000/1, SAR 3000/2

SAR 3000/1, SAR 3000/2 Aluminium Constructions Speedboats

About:

aluminum hull with a superstructure and the wheelhouse

  • Length: 36,9 m
  • Width: 8,1 m
  • Weight: 54 000 kg

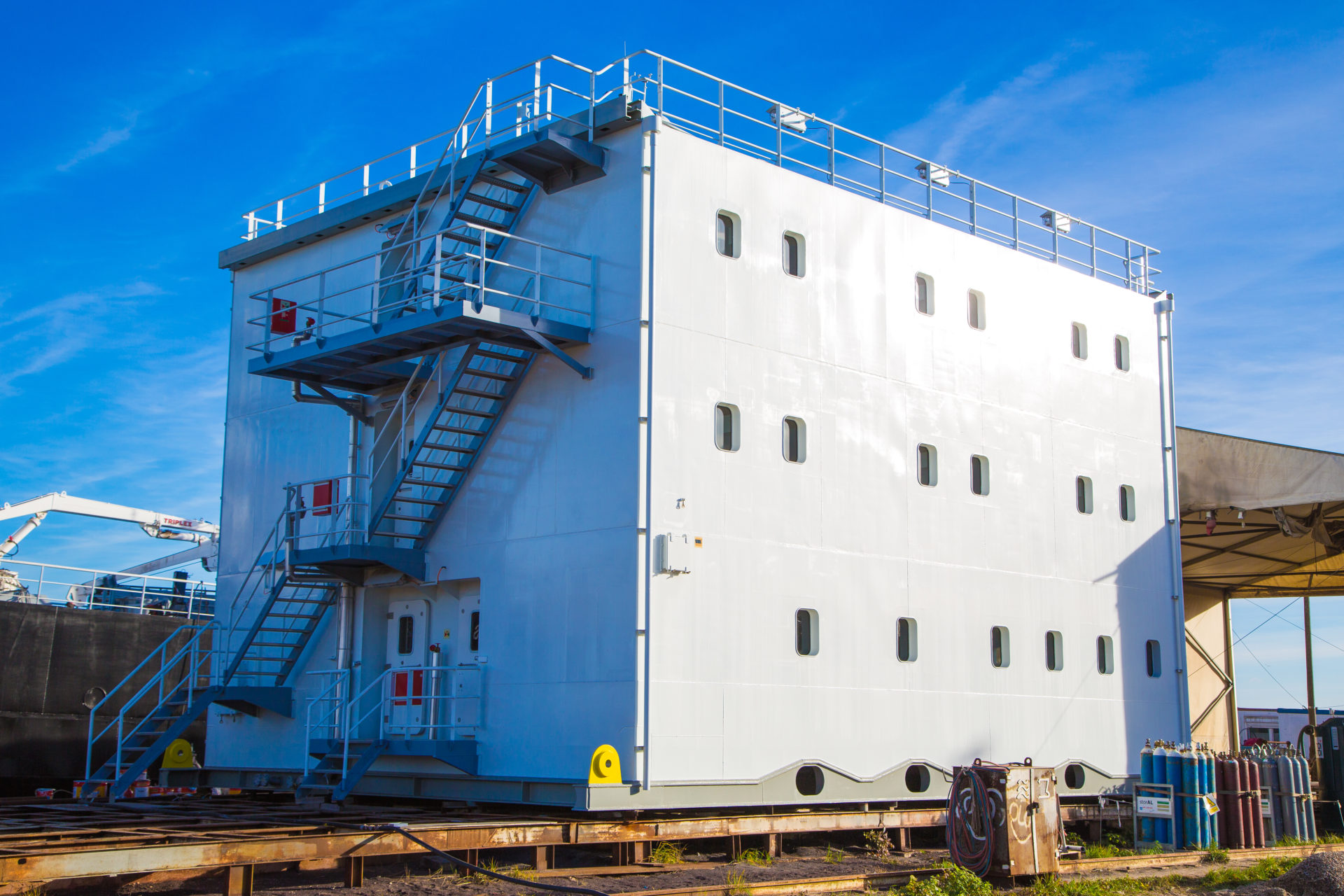

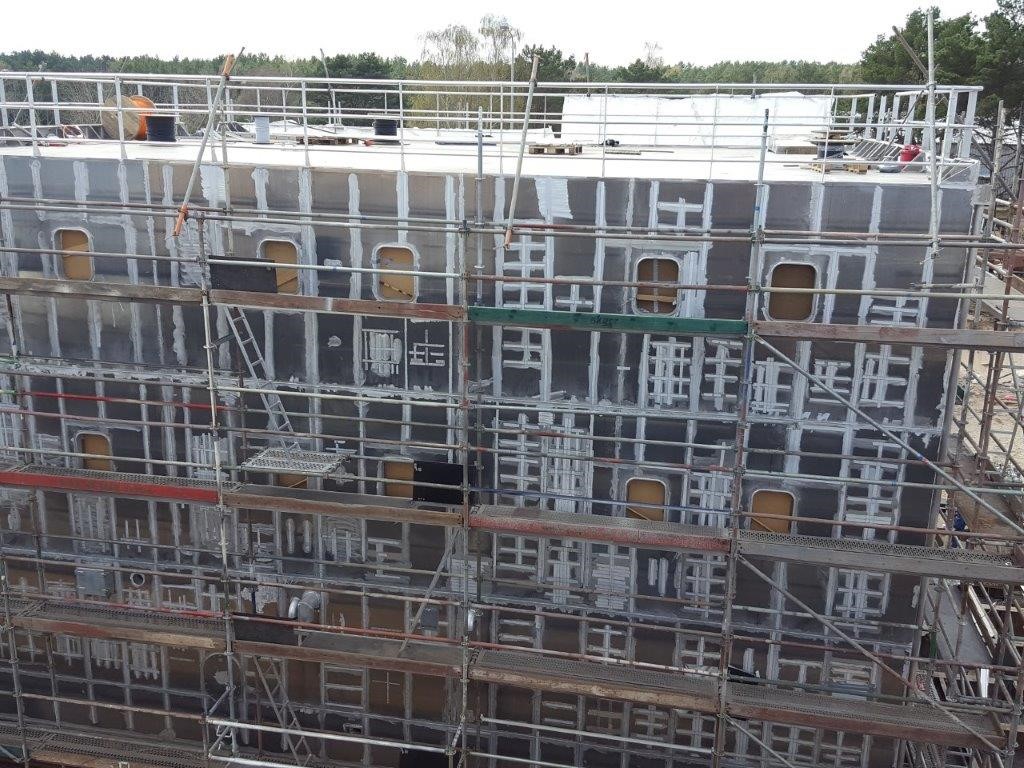

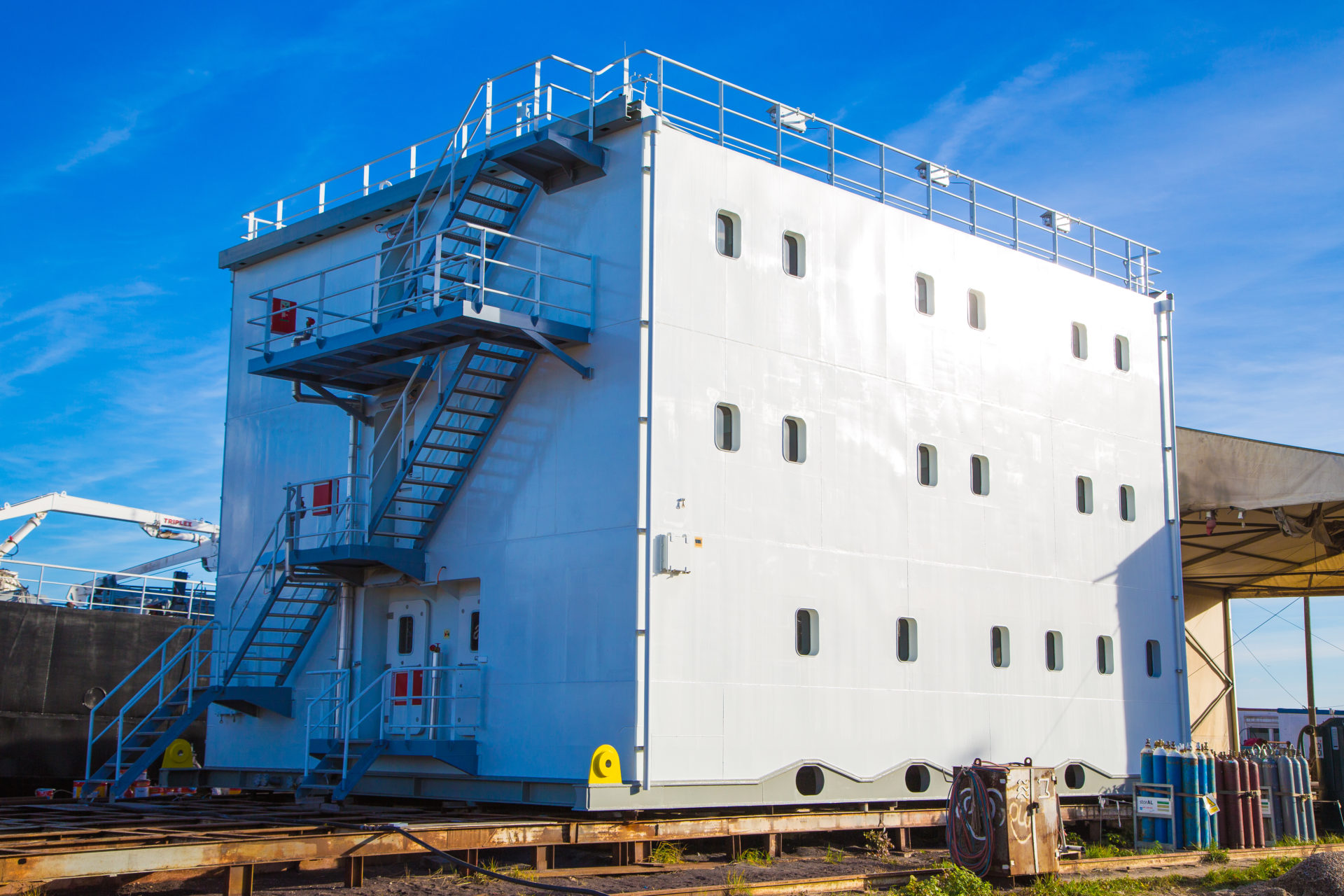

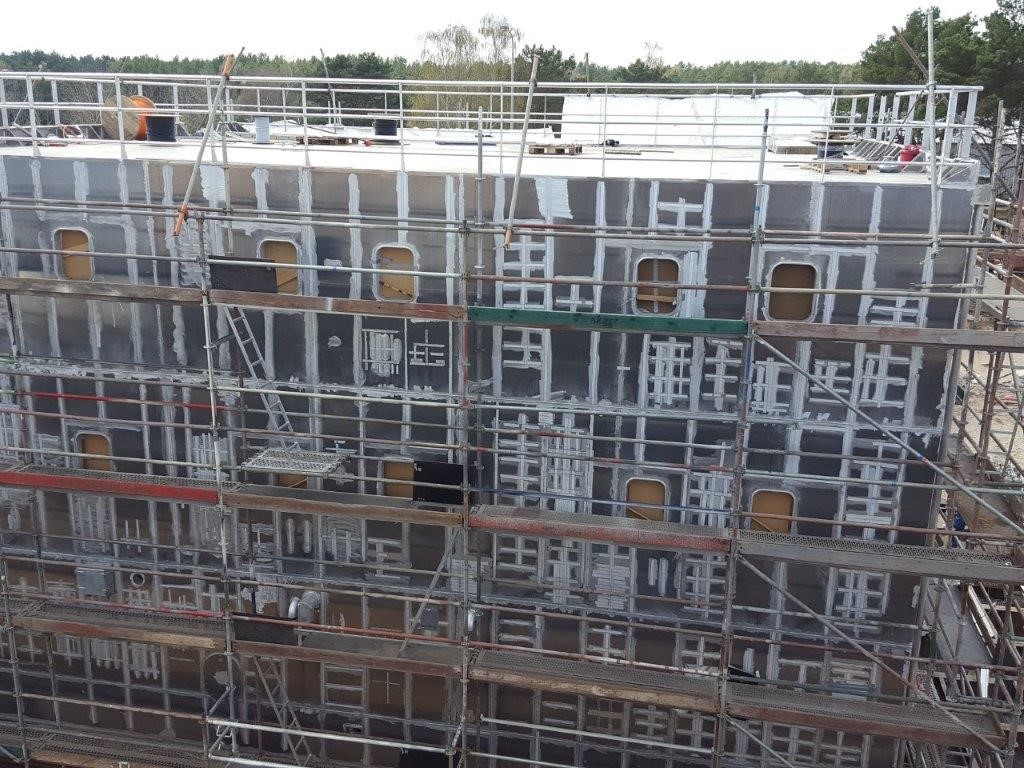

Accomodation module

Accomodation module Aluminium Constructions Offshore

About:

Built for Norwegian client. To be used on offshore platform.

Dimensions: 16x12x9m, 40 ton

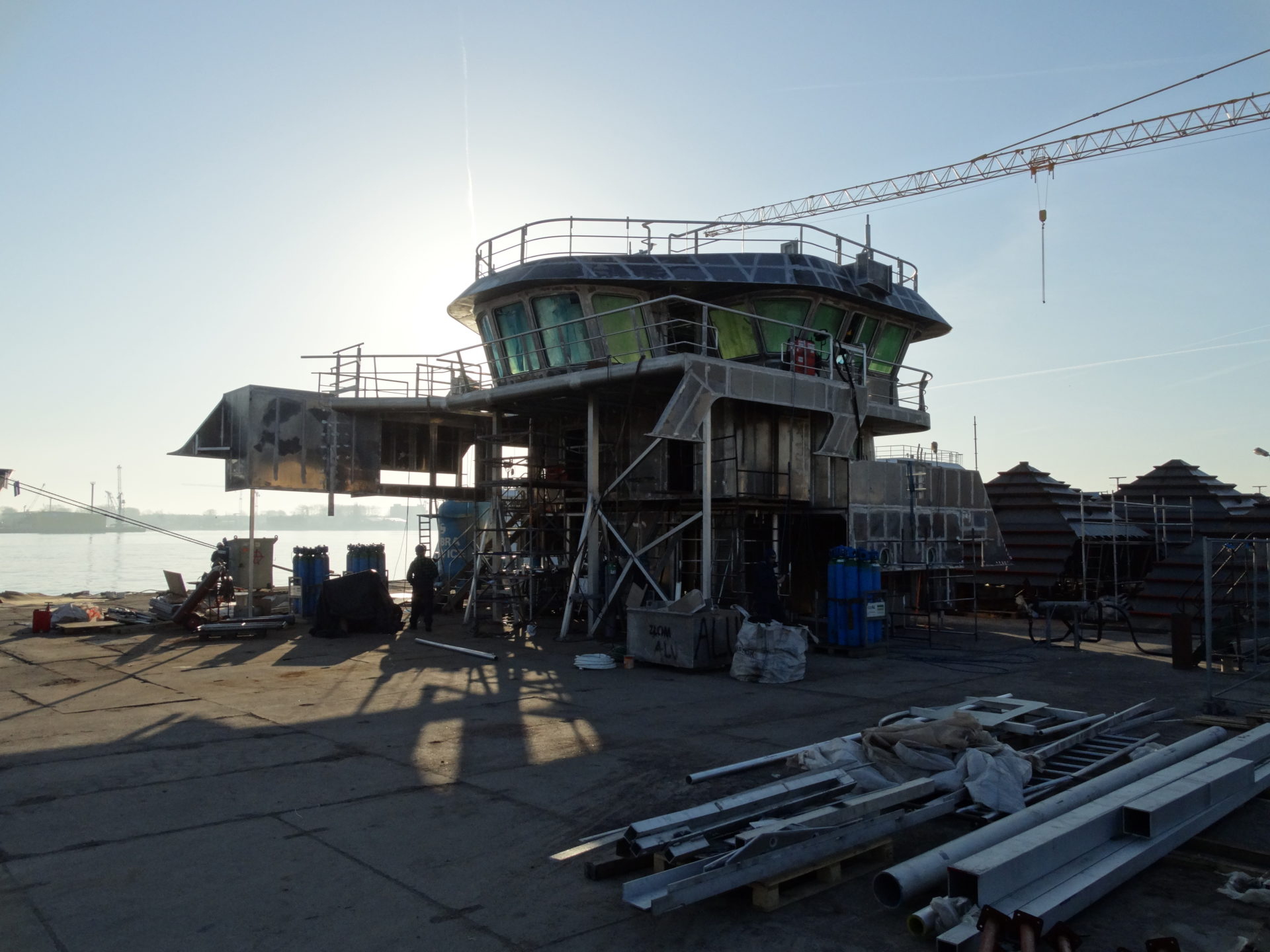

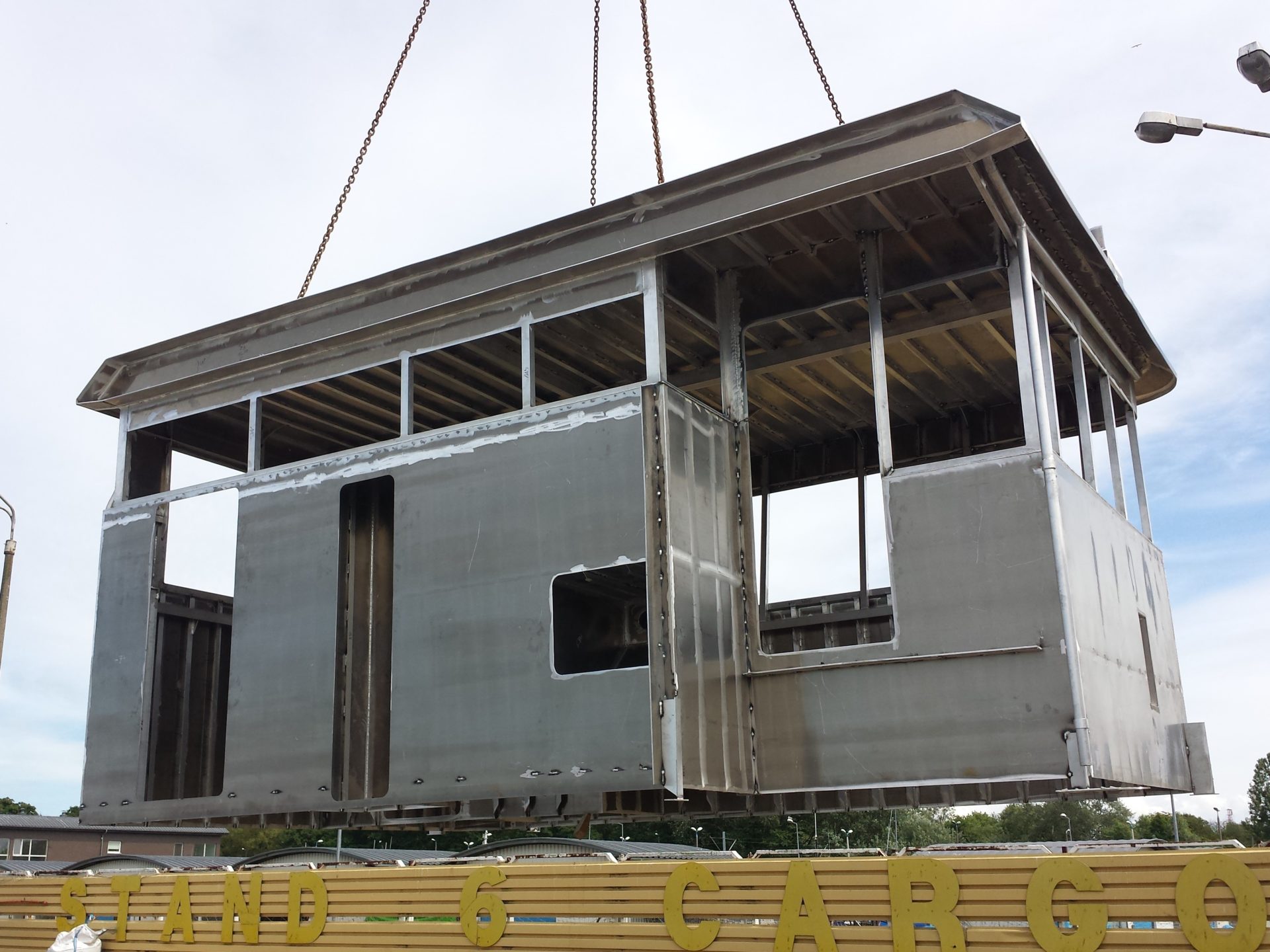

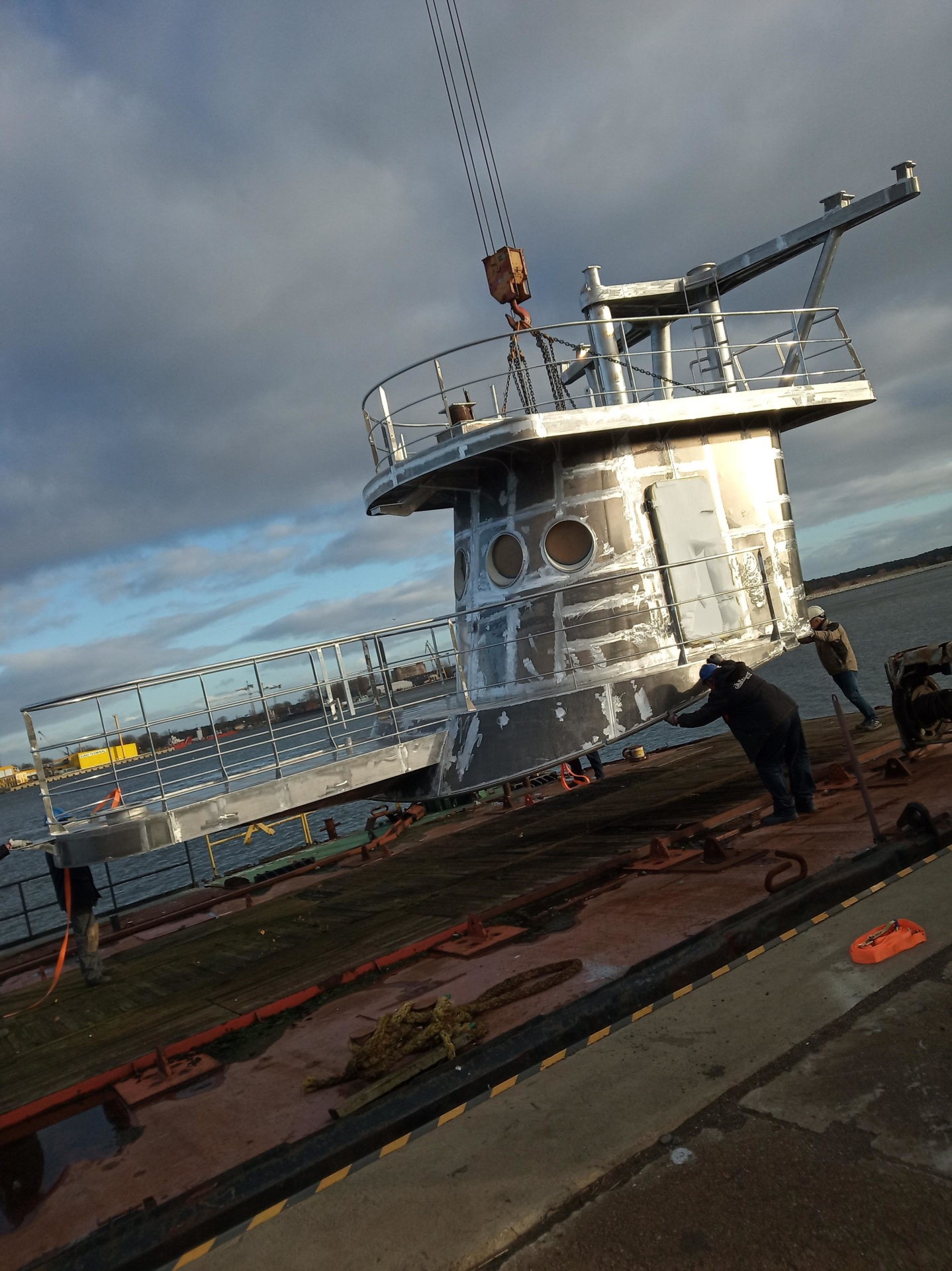

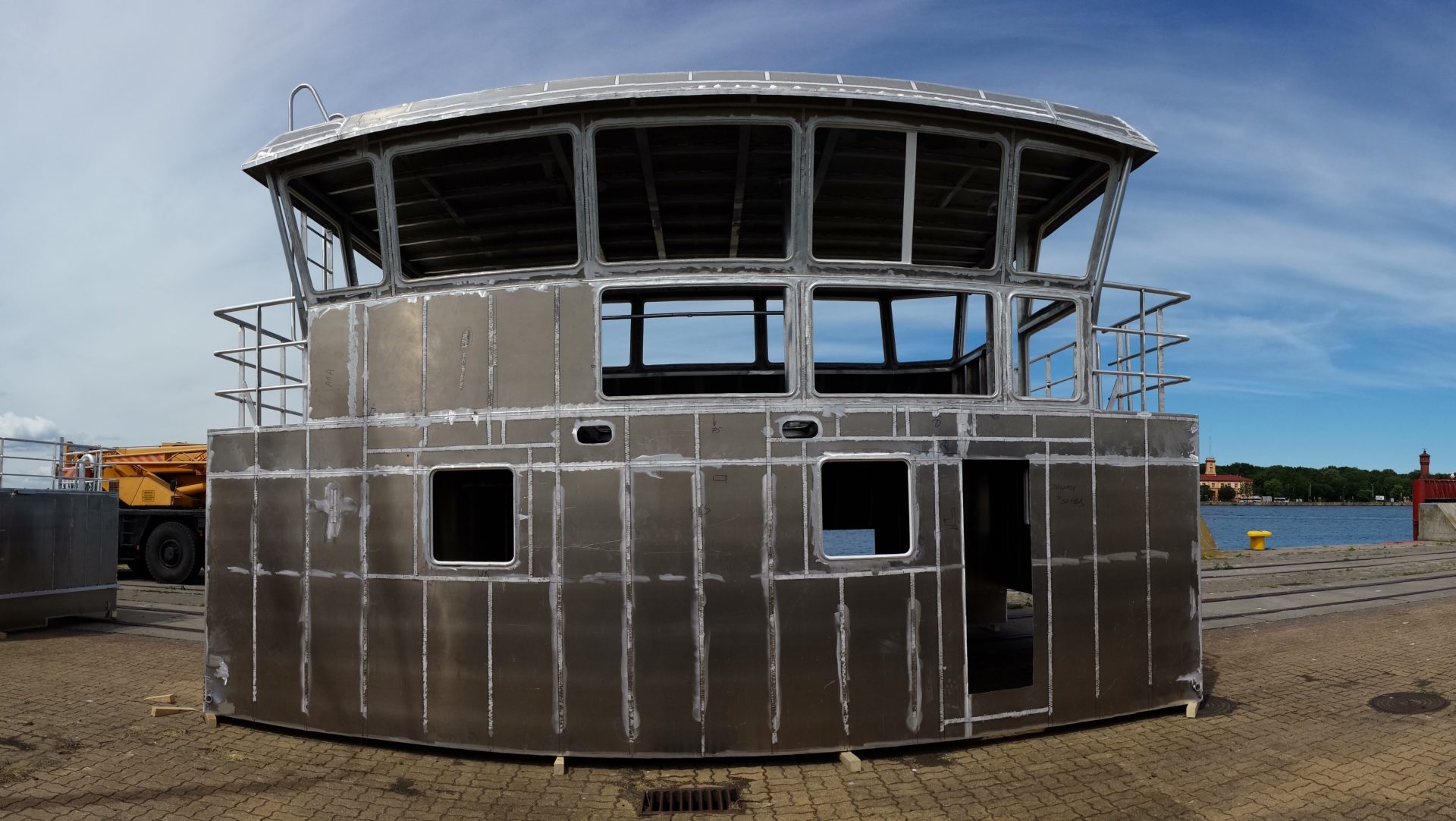

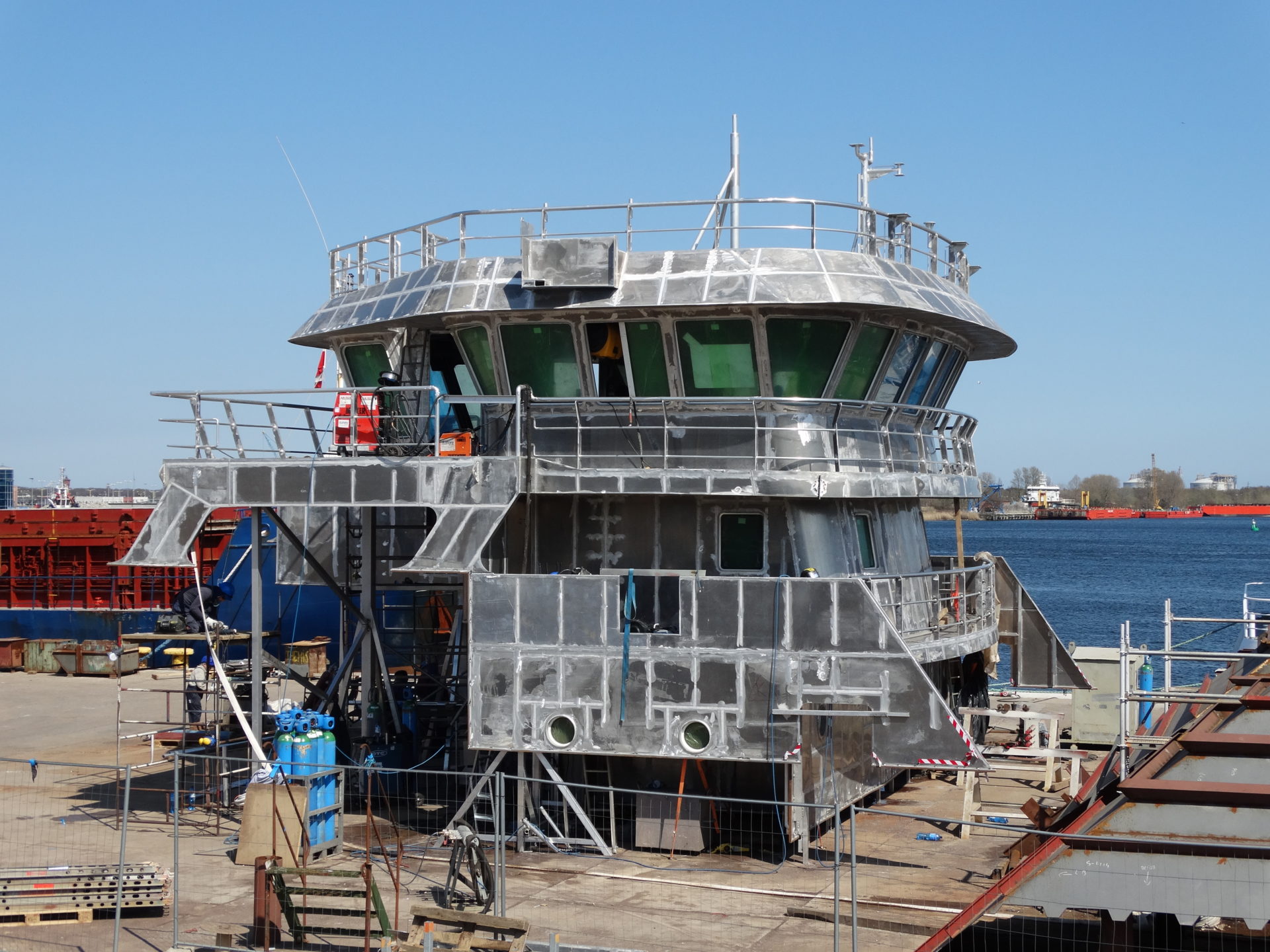

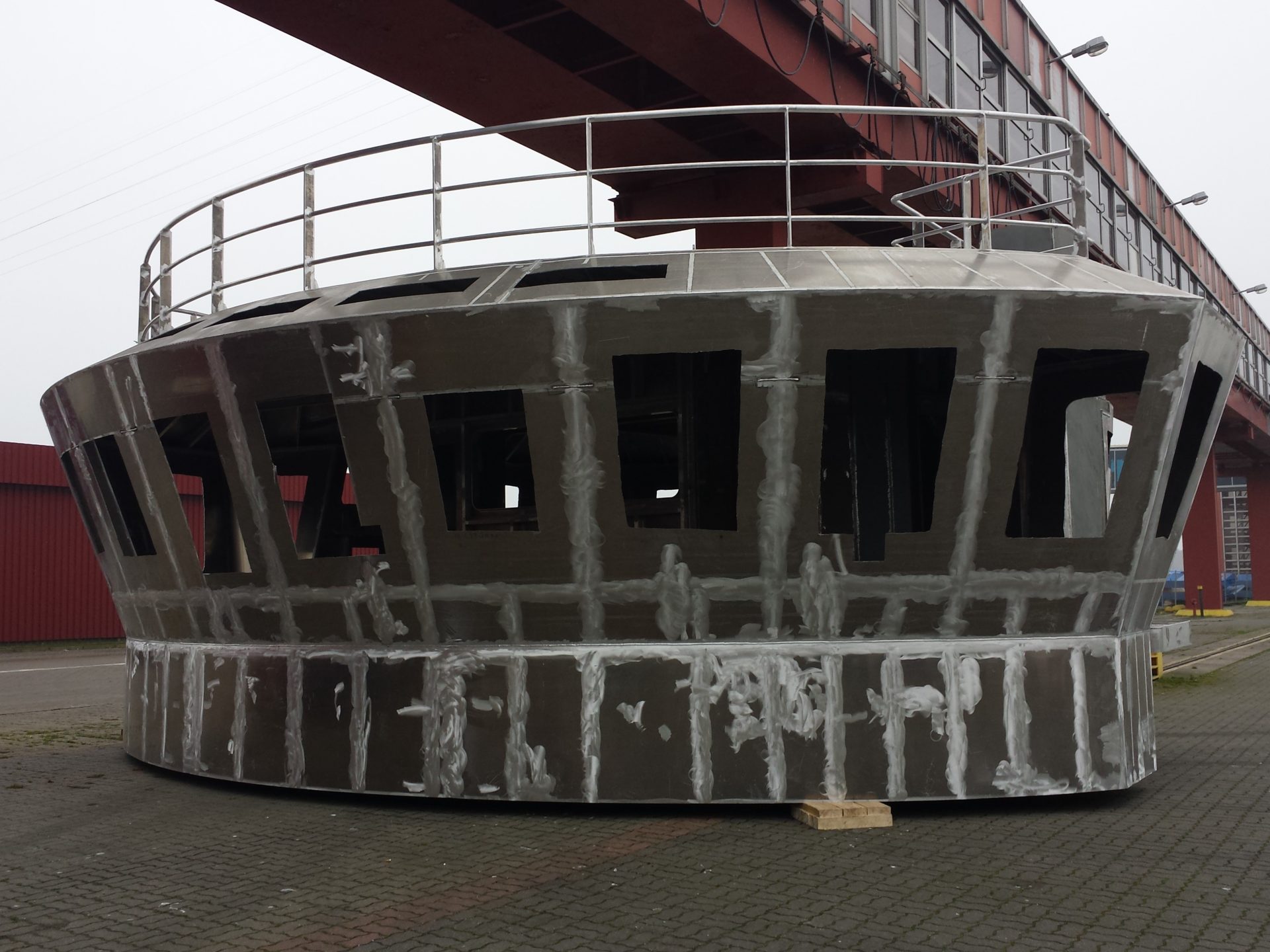

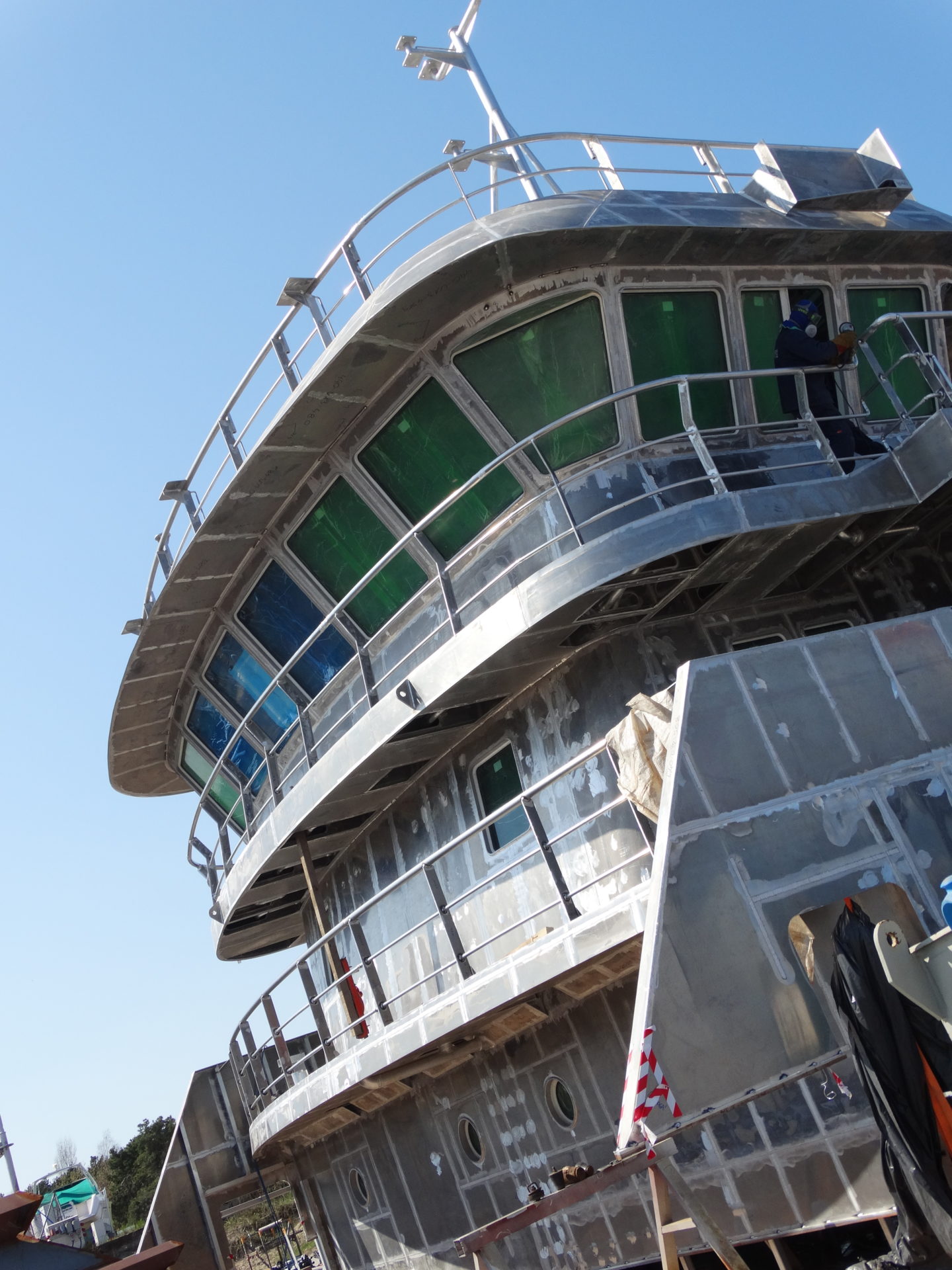

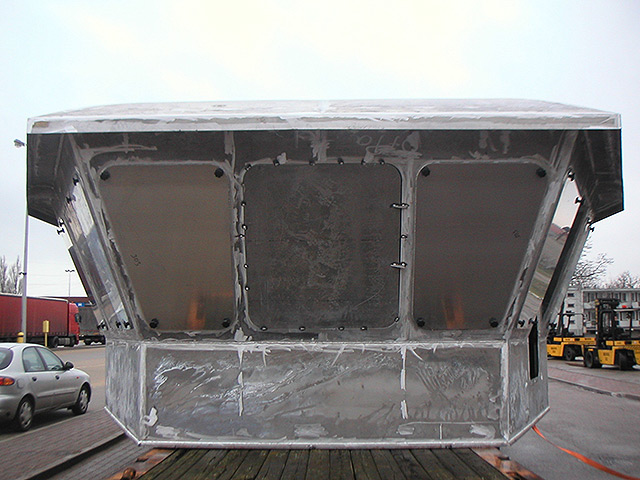

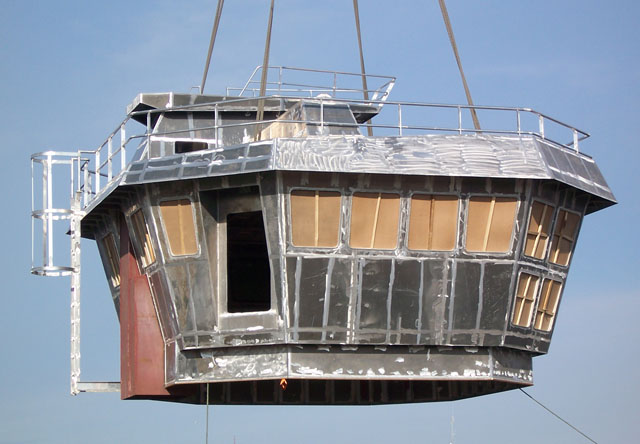

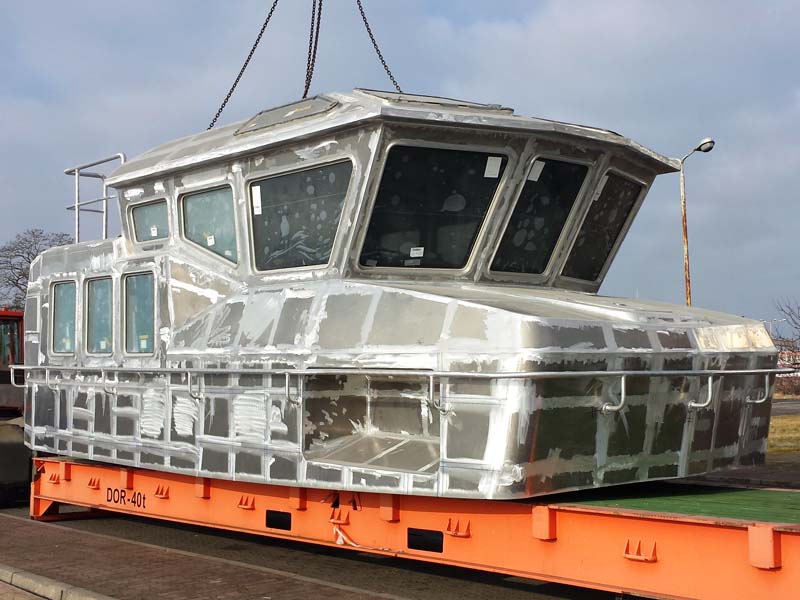

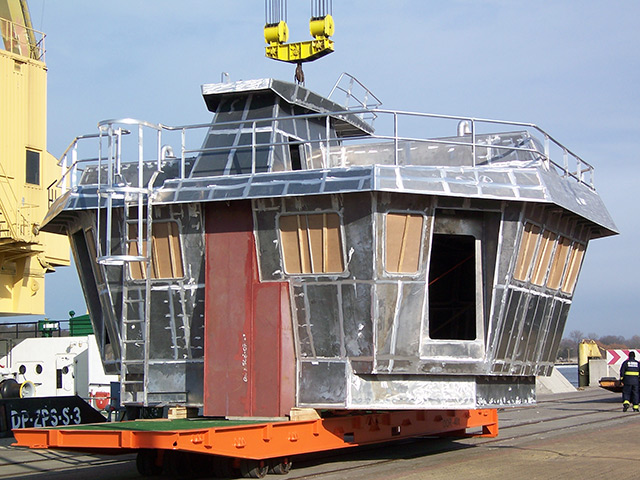

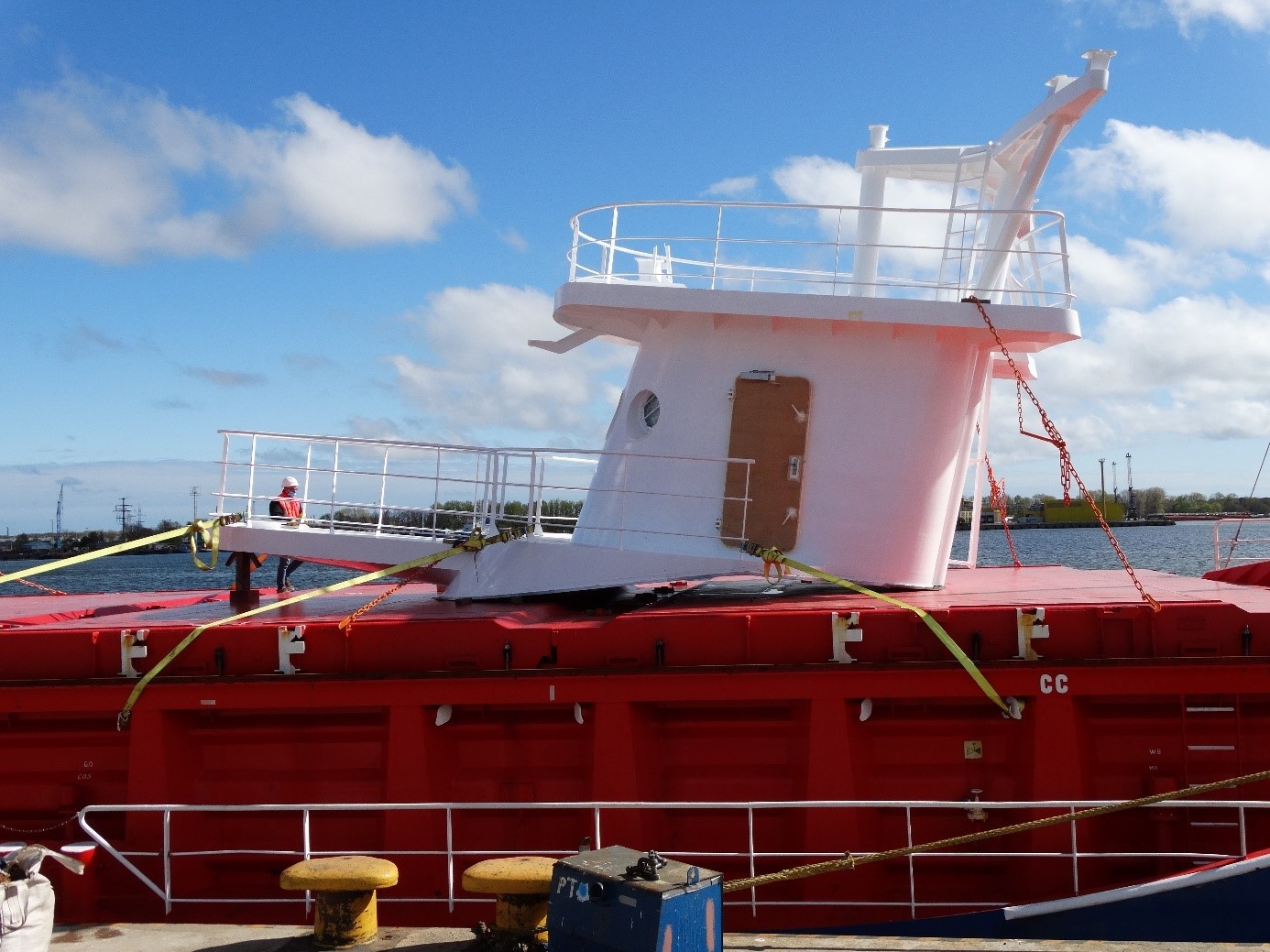

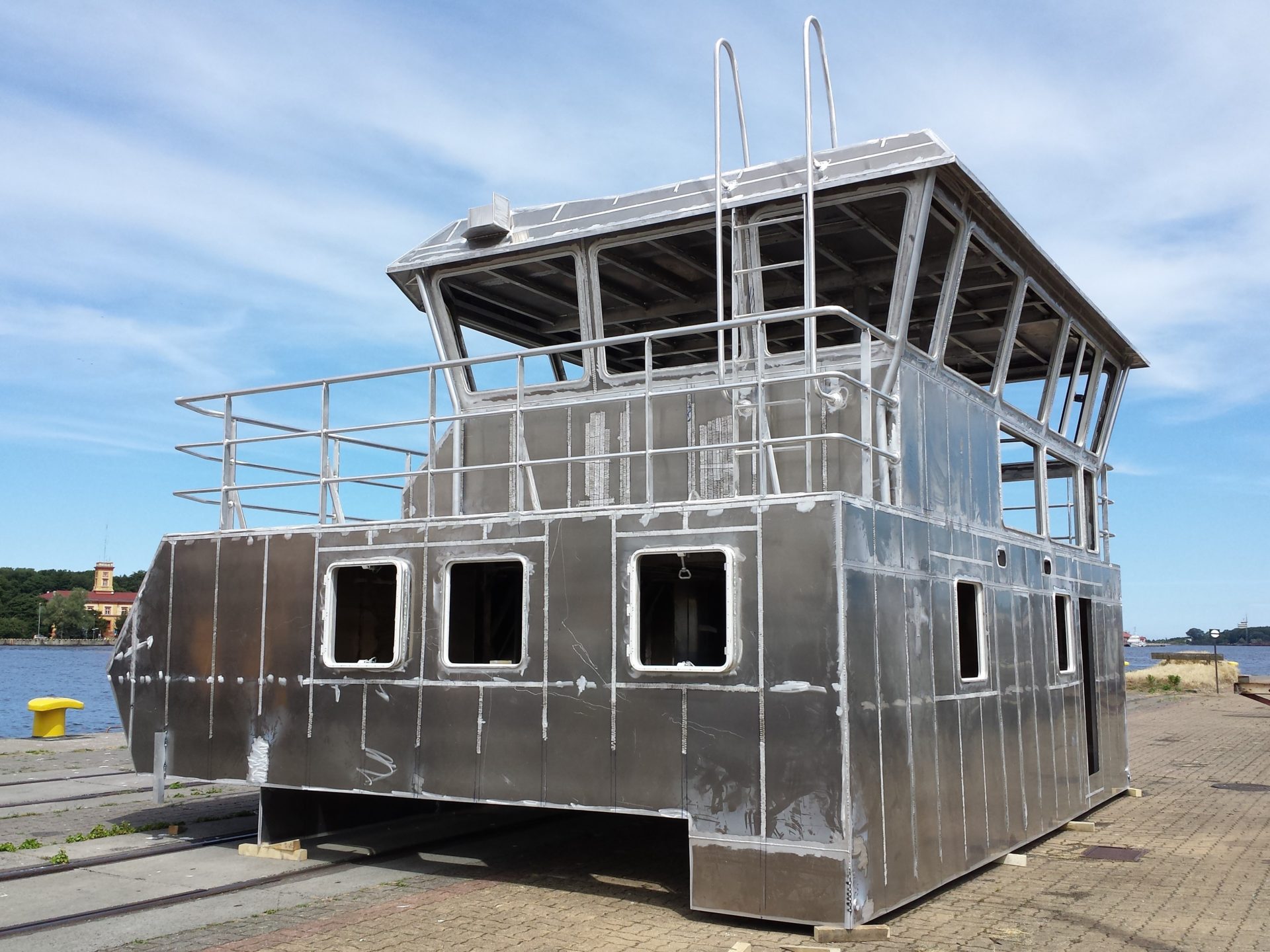

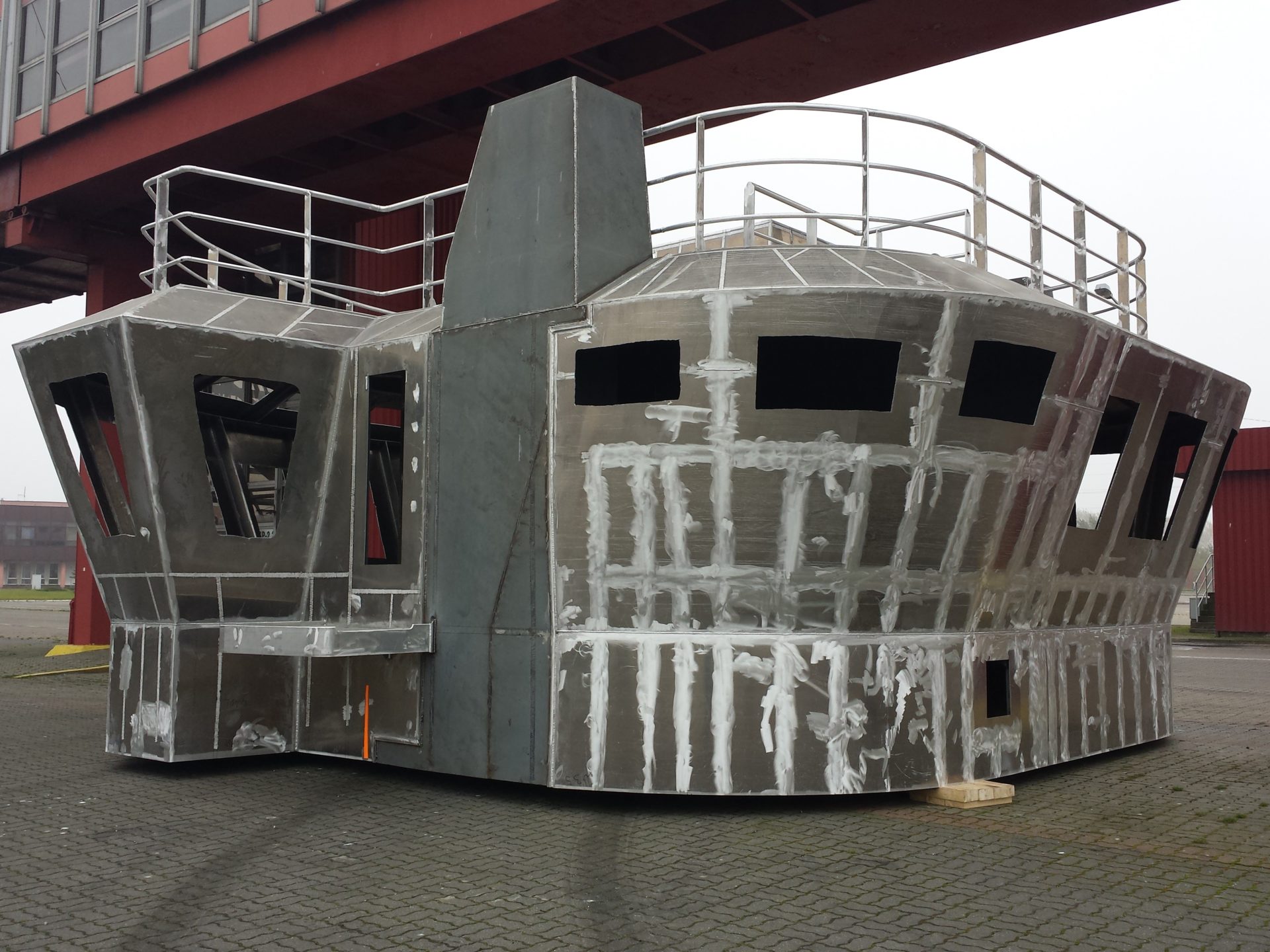

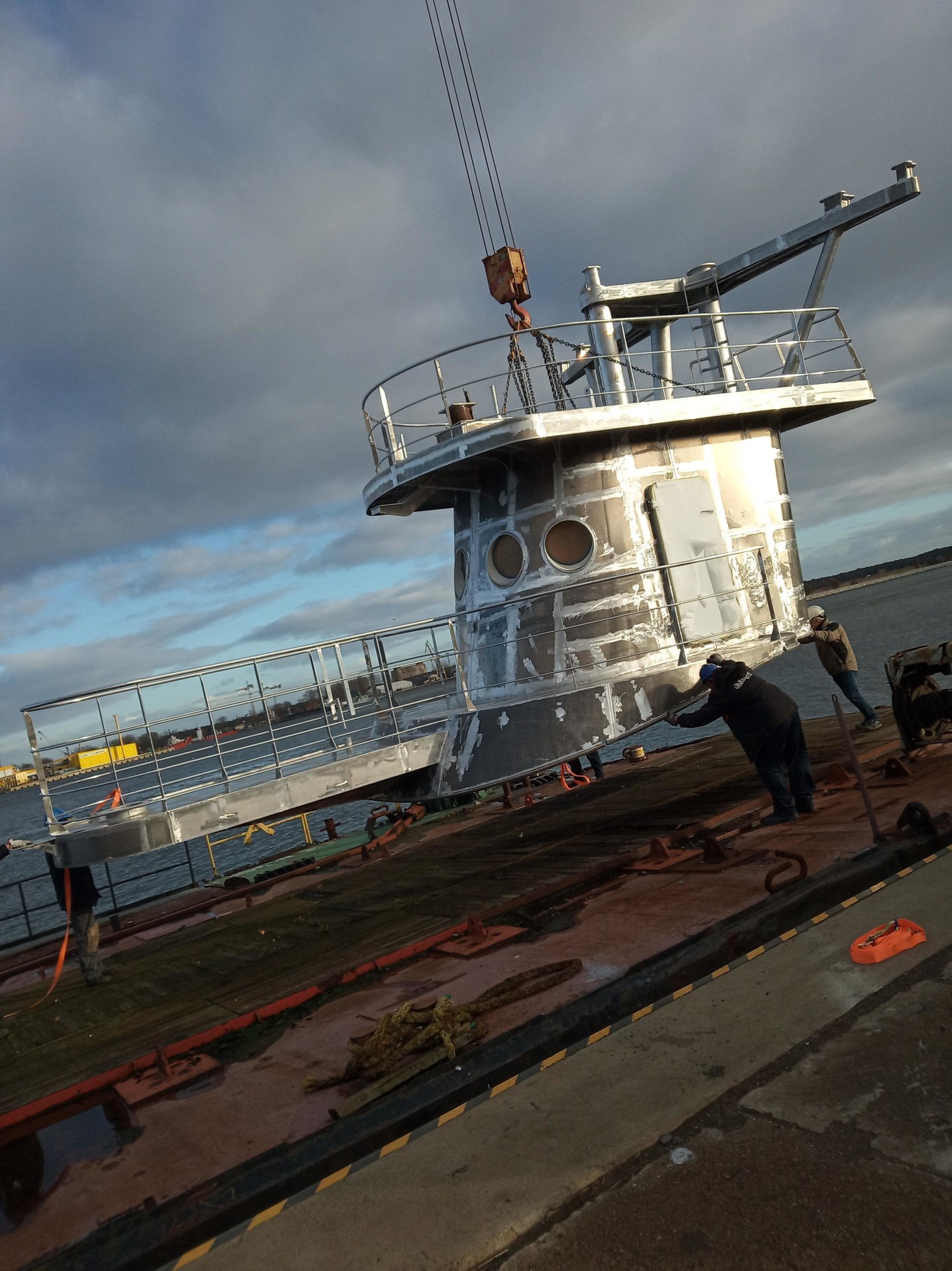

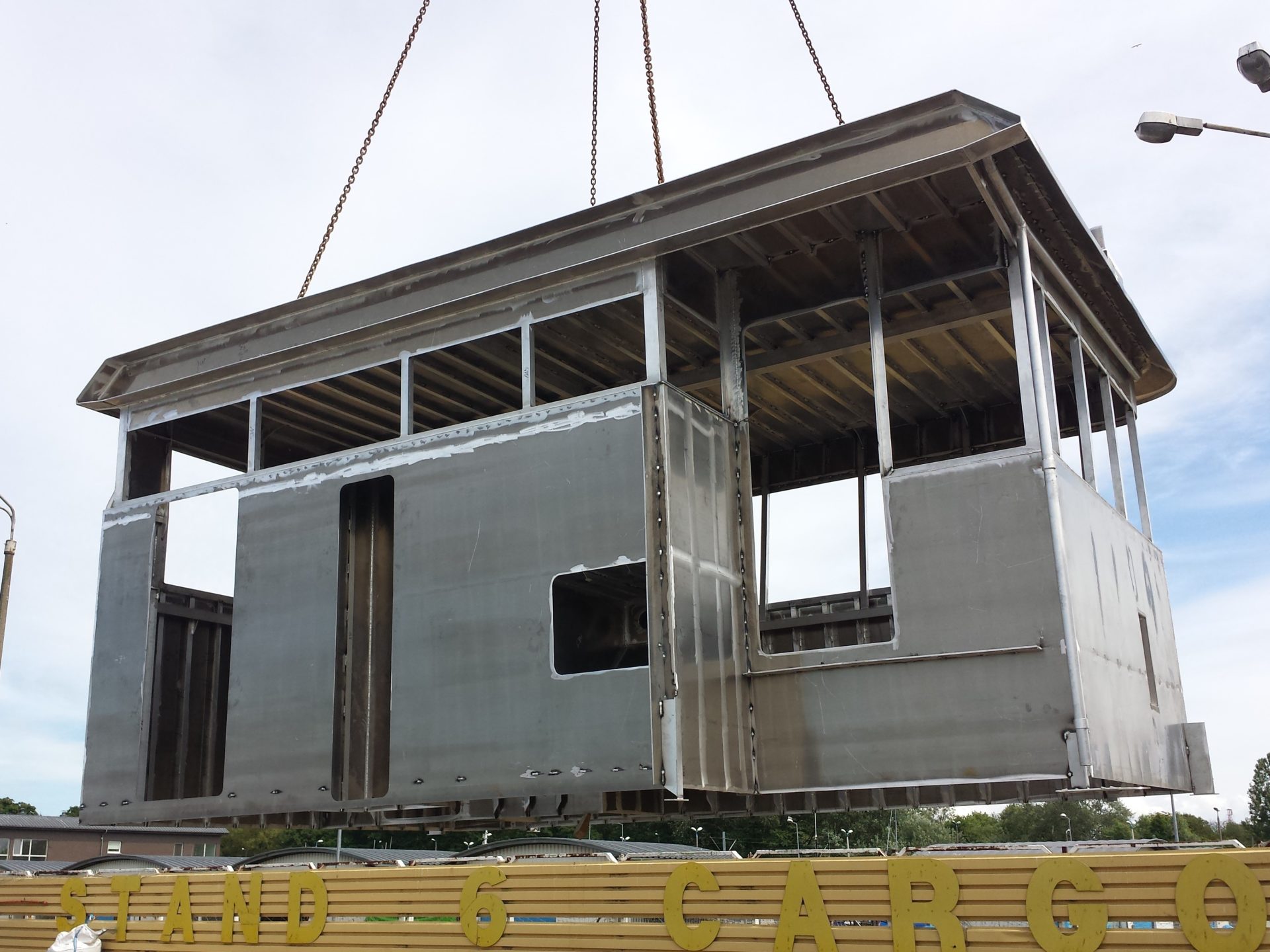

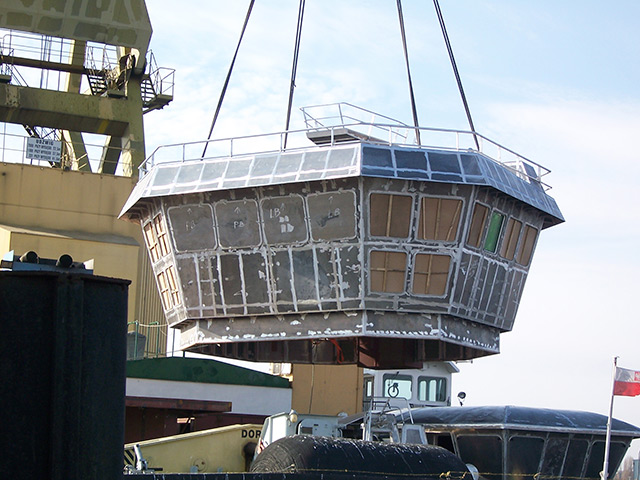

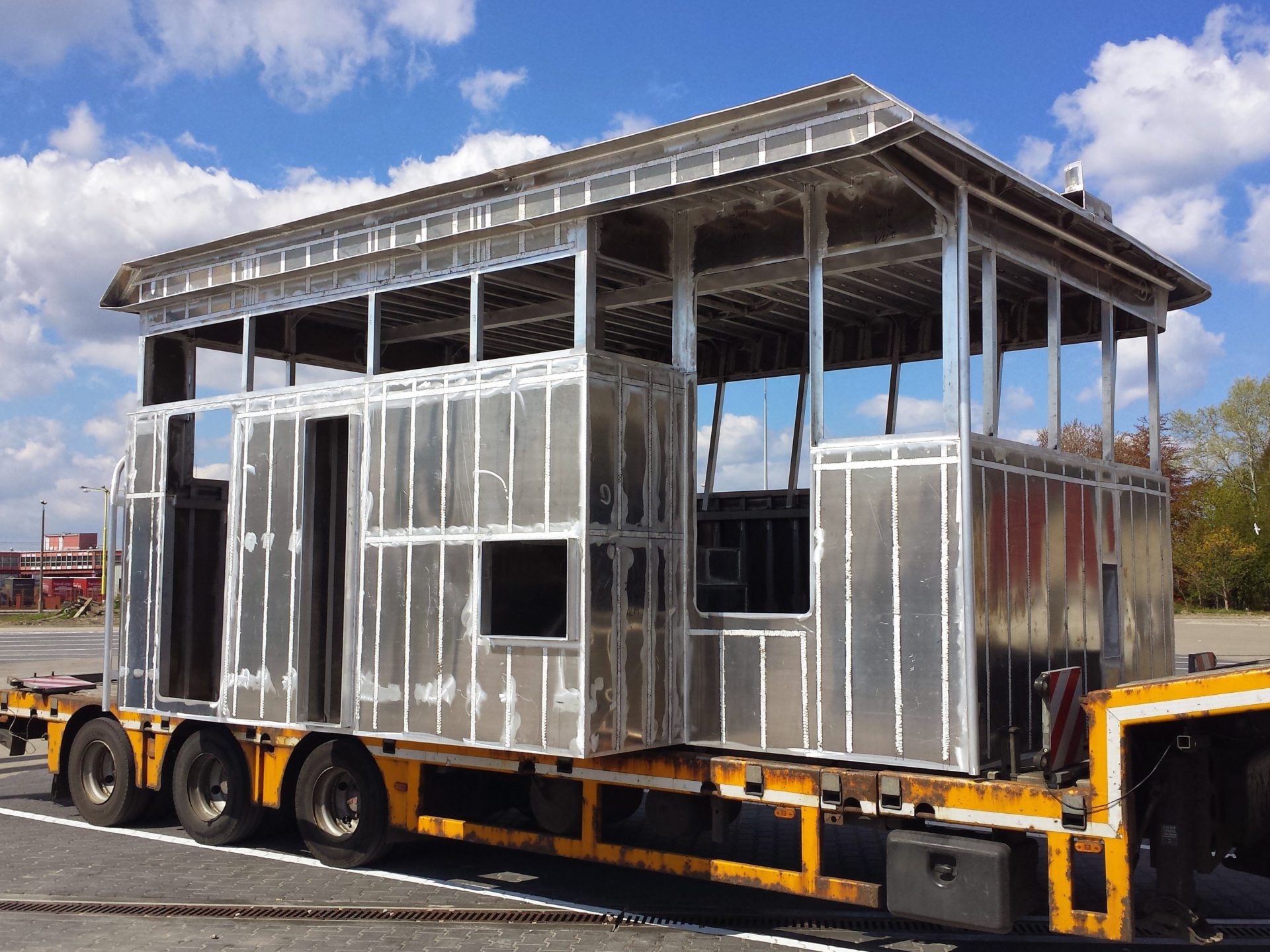

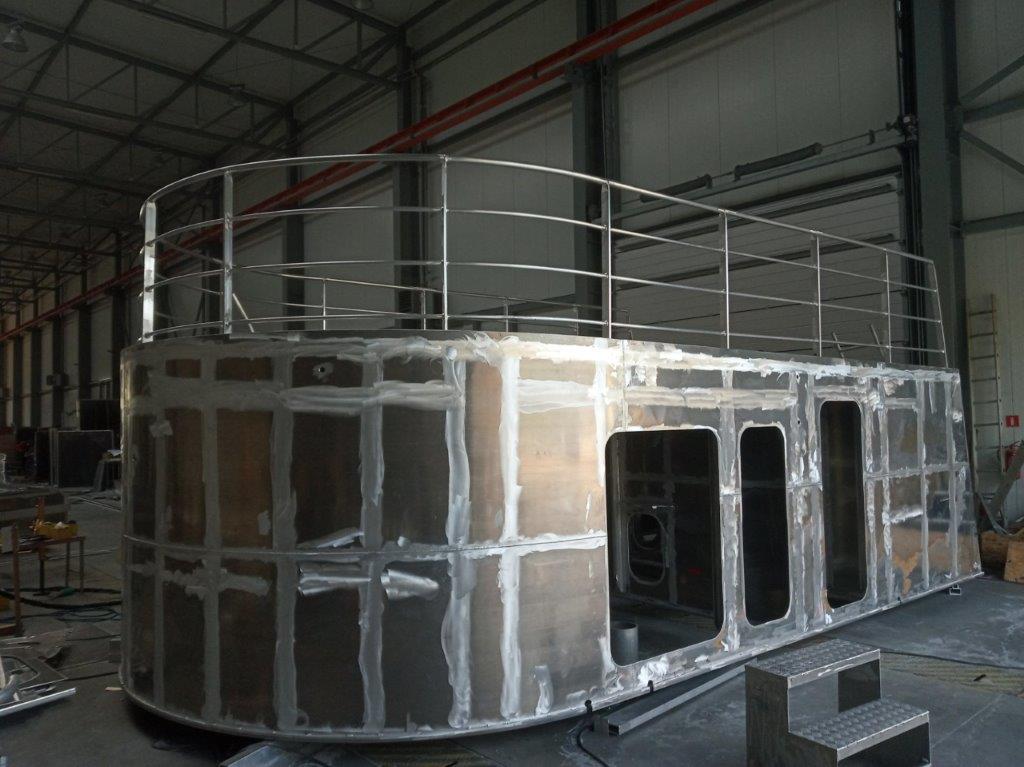

Aluminum wheelhouses

Aluminum wheelhouses Aluminium Constructions Superstructures

About:

Aluminium superstructure with trimetal bars  dedicated for steel hulls. Construction shipped by sea to final assembly on the steel hull on the client site.

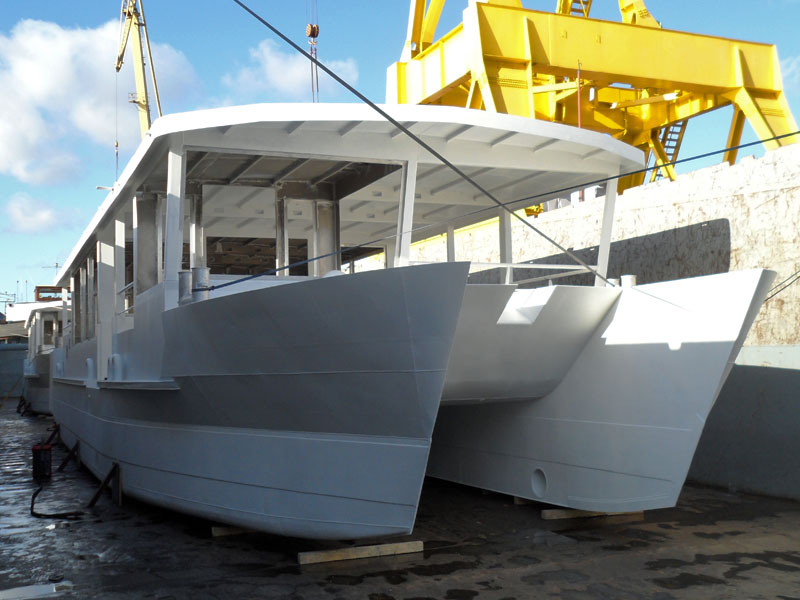

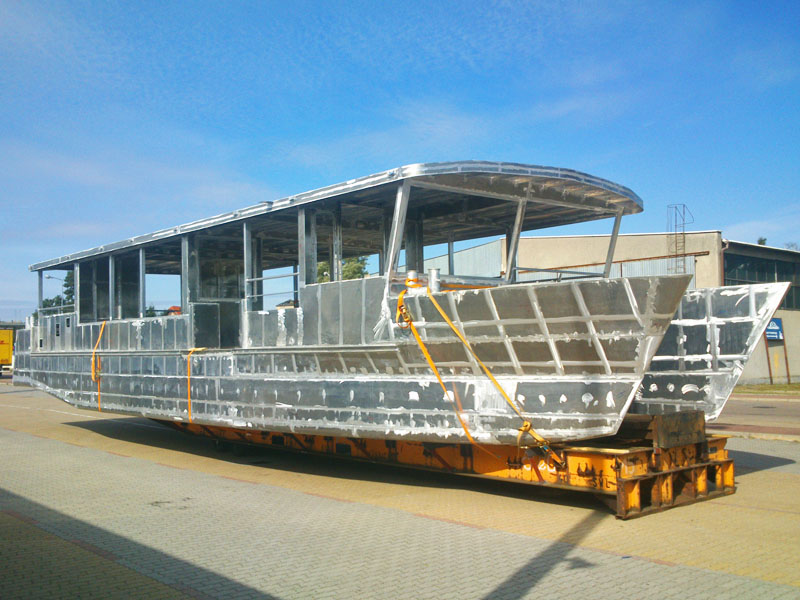

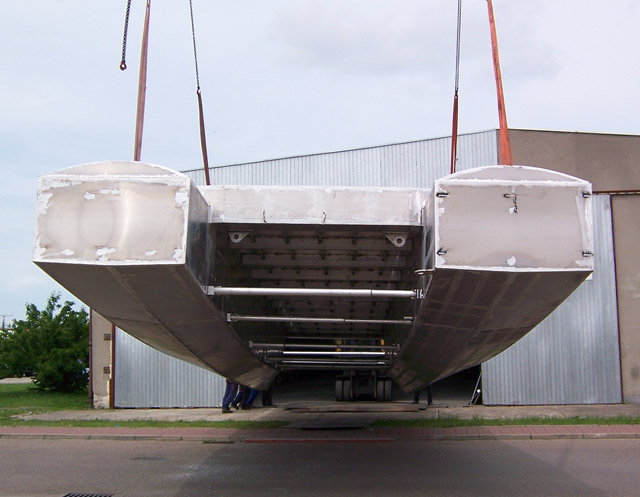

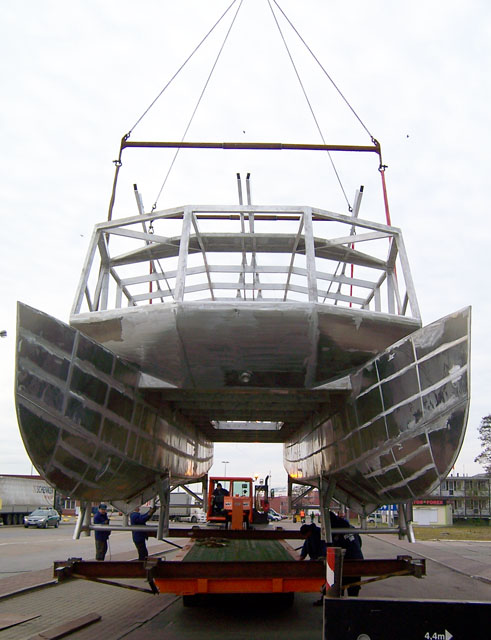

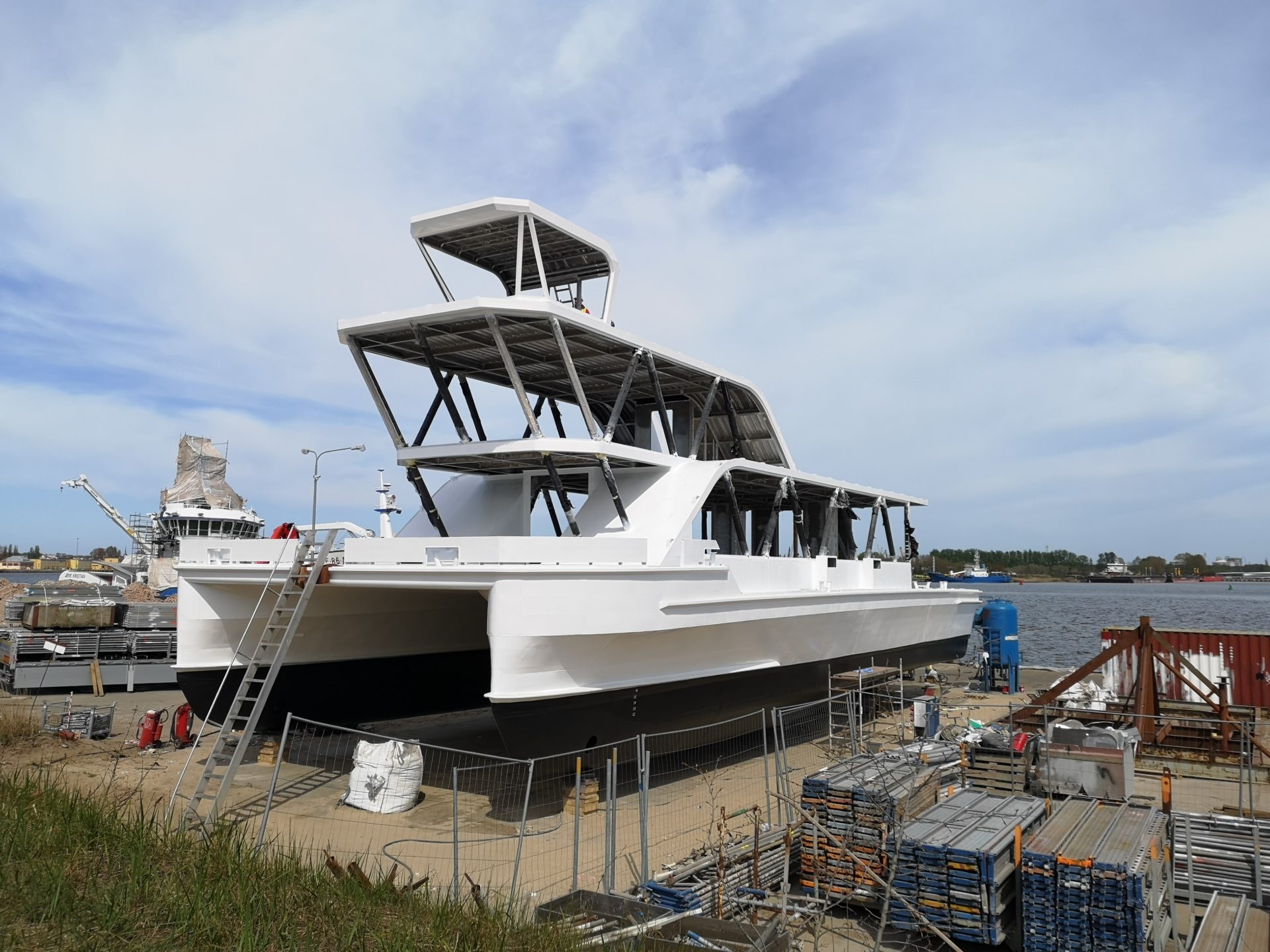

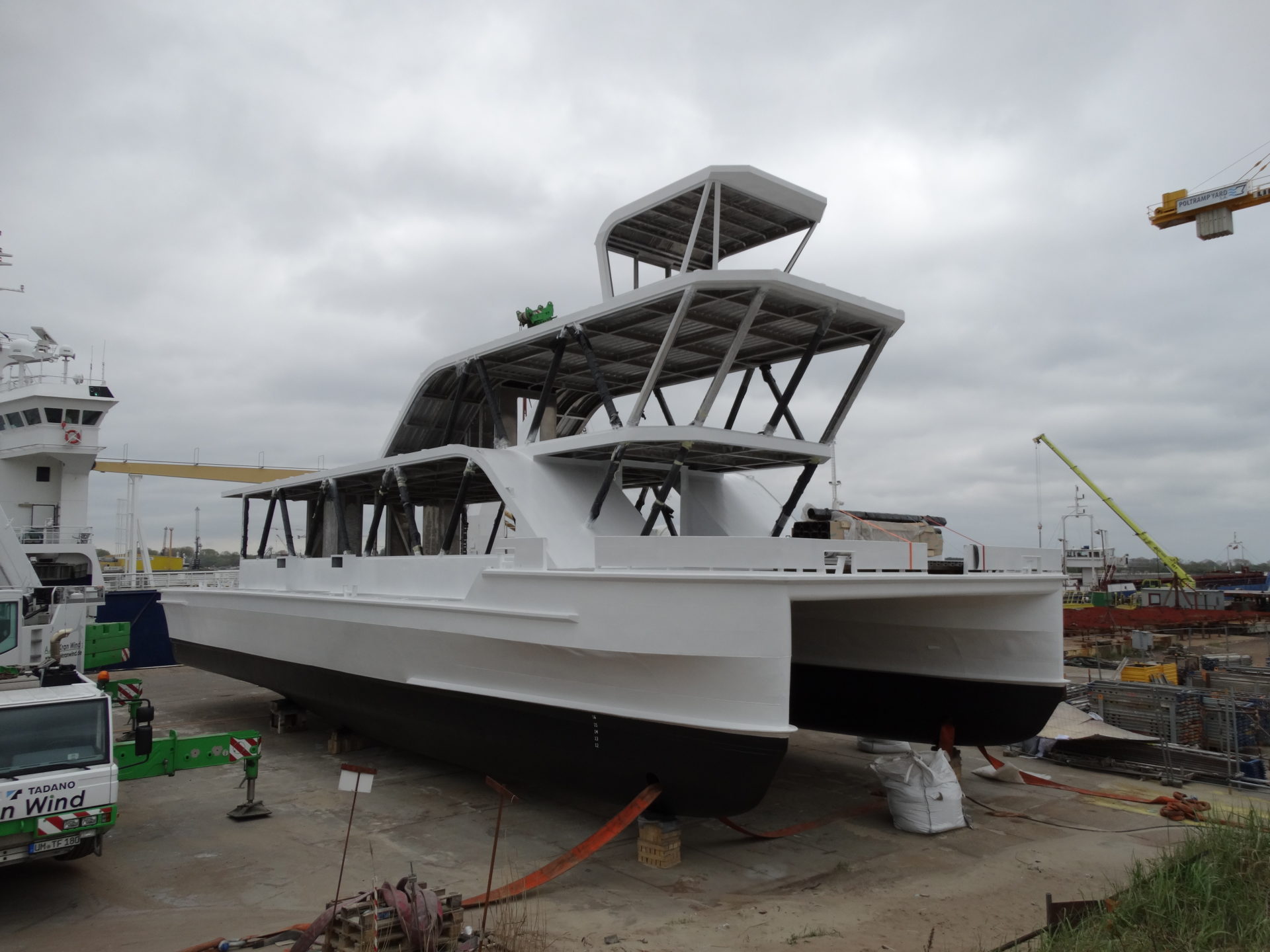

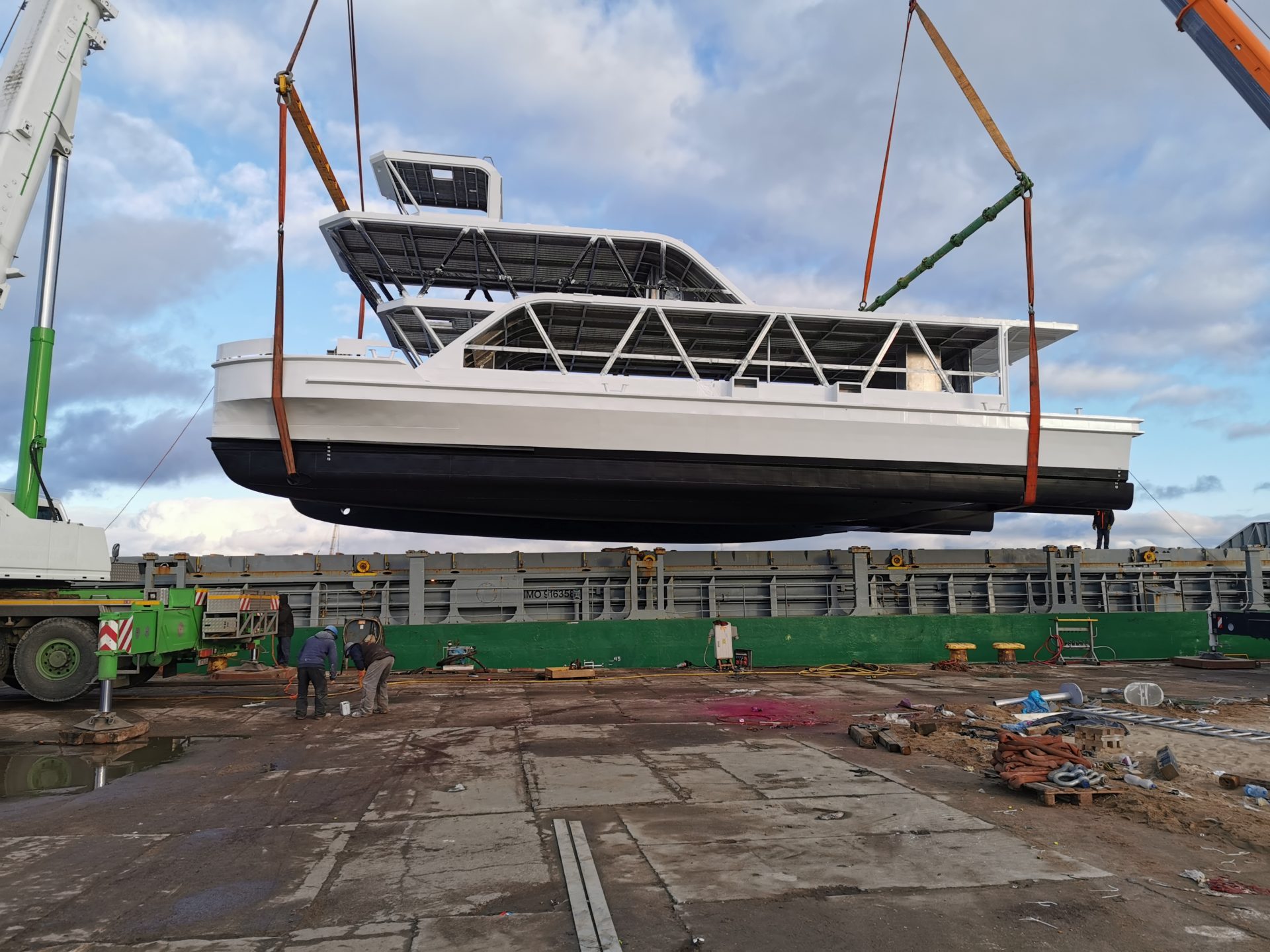

Solar catamarans

Solar catamarans Aluminium Constructions Catamarans

Passenger catamaran used for recreation purposes or workers transportation on lakes and rivers by using only natural sources for electrical power (conversion of solar radiation energy into electricity as a result of photovoltaic phenomenon). Built 2 pieces for German client.

  • Lenght: 18,5 m
  • Width: 5,2 m
  • Weight: 8 200 kg

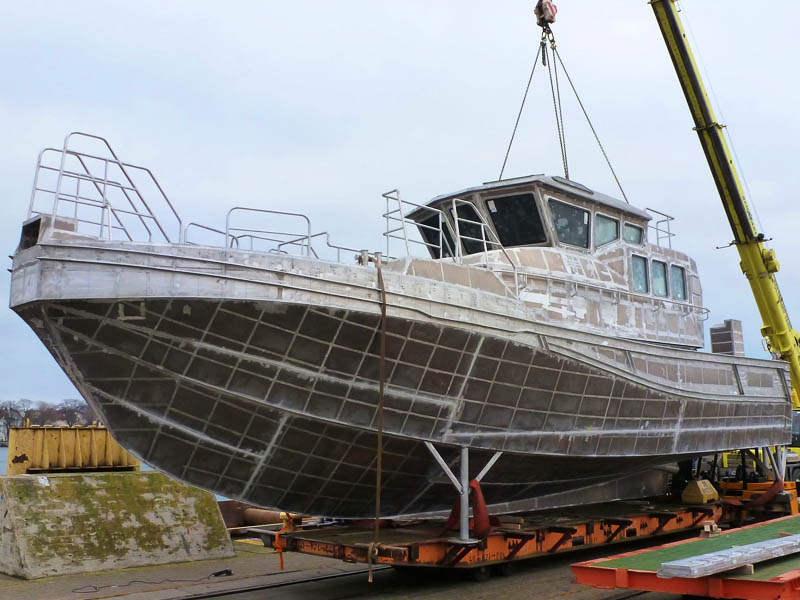

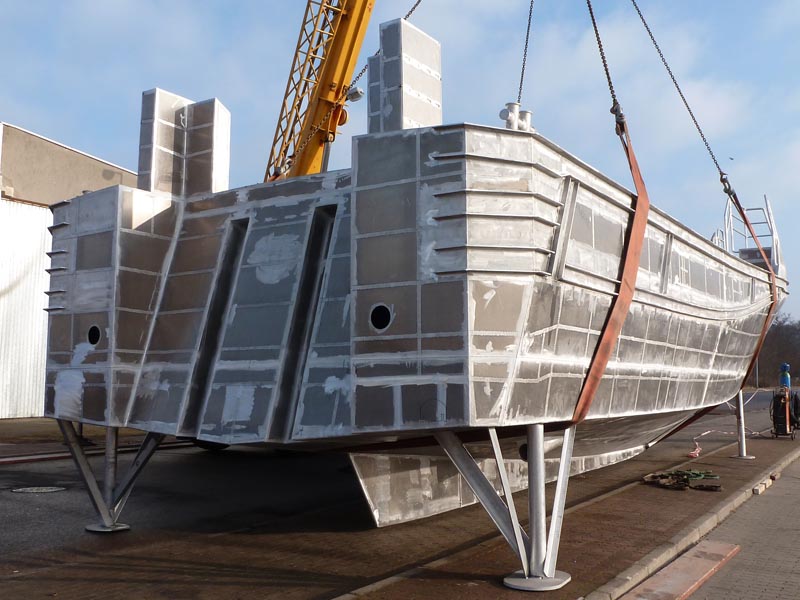

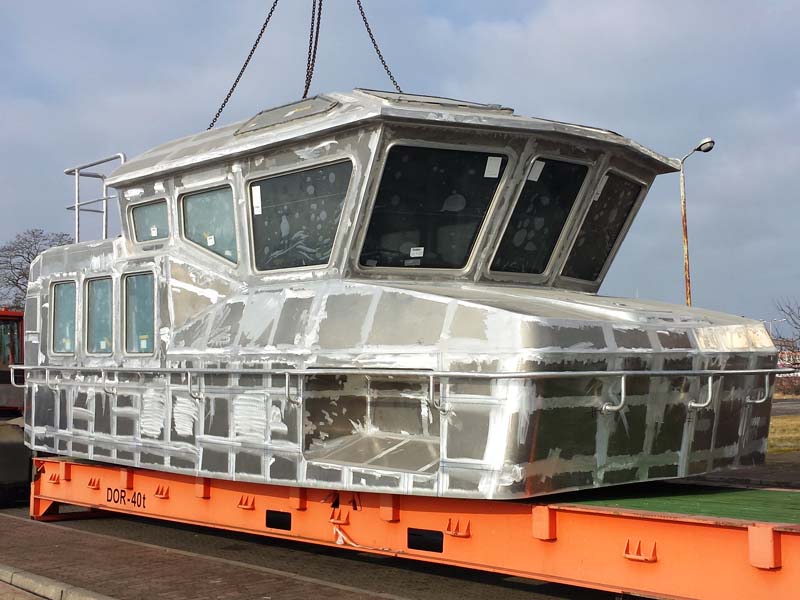

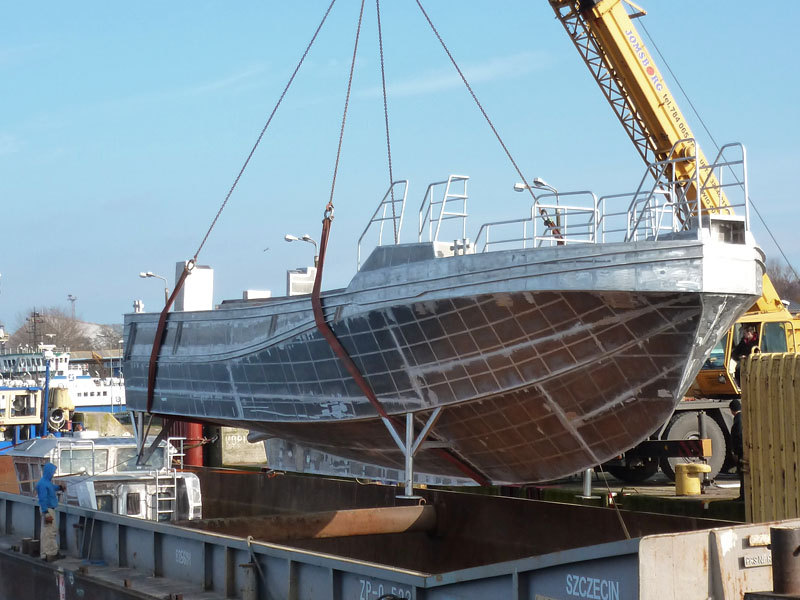

Pilot Baltic – aluminum hull with superstructure

Pilot Baltic – aluminum hull with superstructure Aluminium Constructions Speedboats

About:

  • Lenght: 17,8 m
  • Width: 6,0 m
  • Weight: 12 000 kg

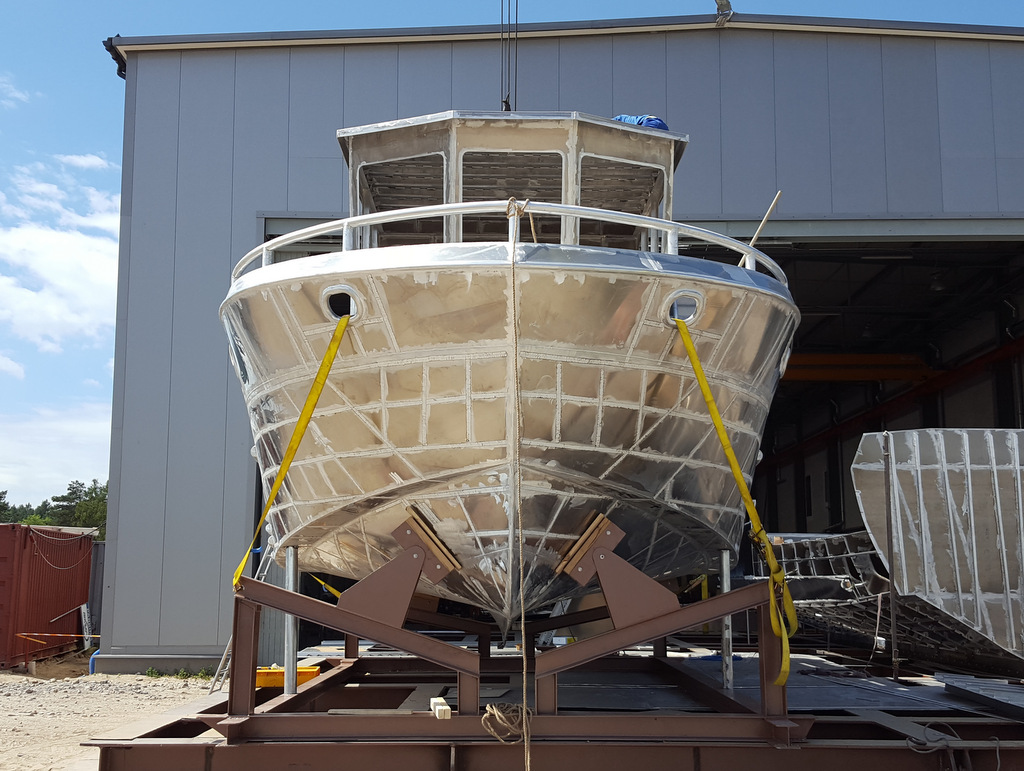

Speedboat Vikna

Speedboat Vikna Aluminium Constructions Speedboats

About:

Hull with wheelhouse of very fast service boat build for Norwegian owner.

  • Weight: 6 400 kg

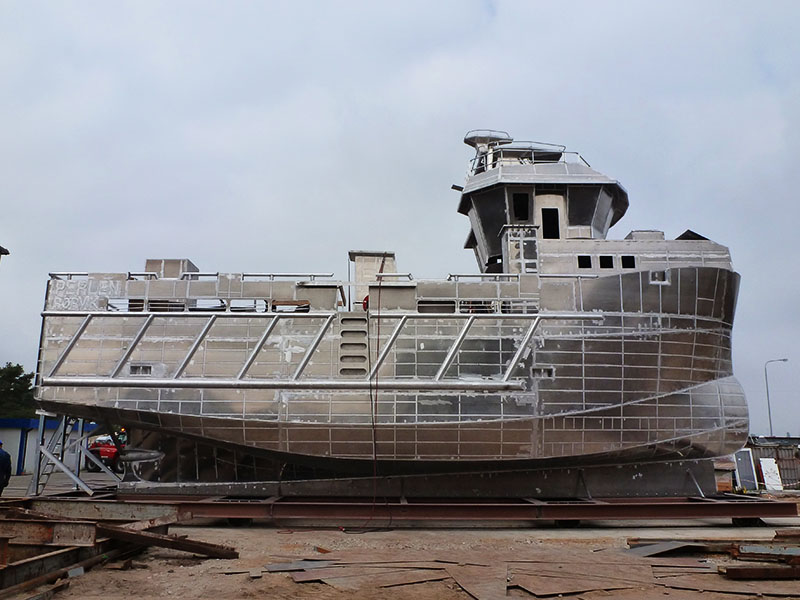

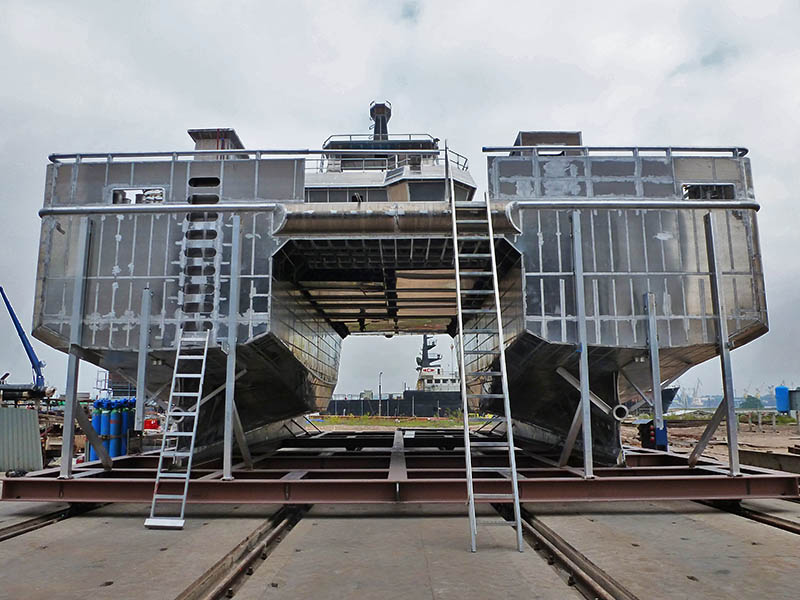

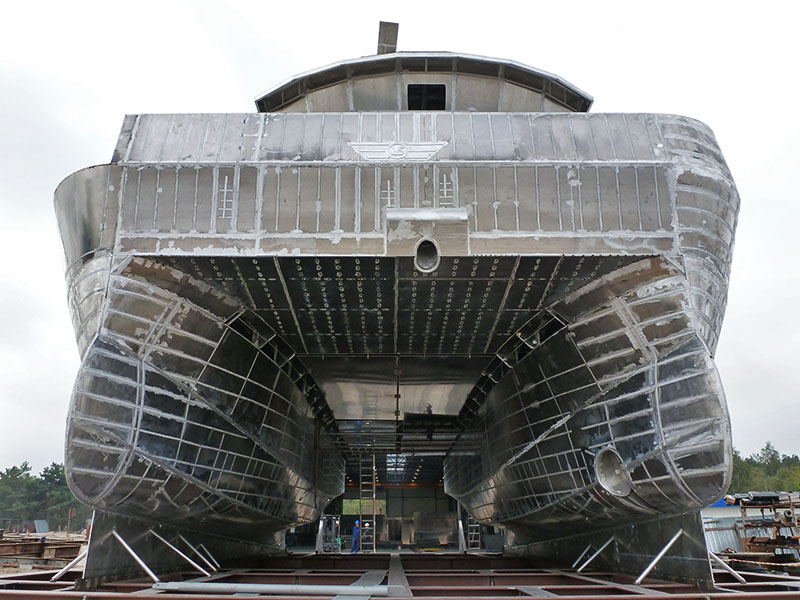

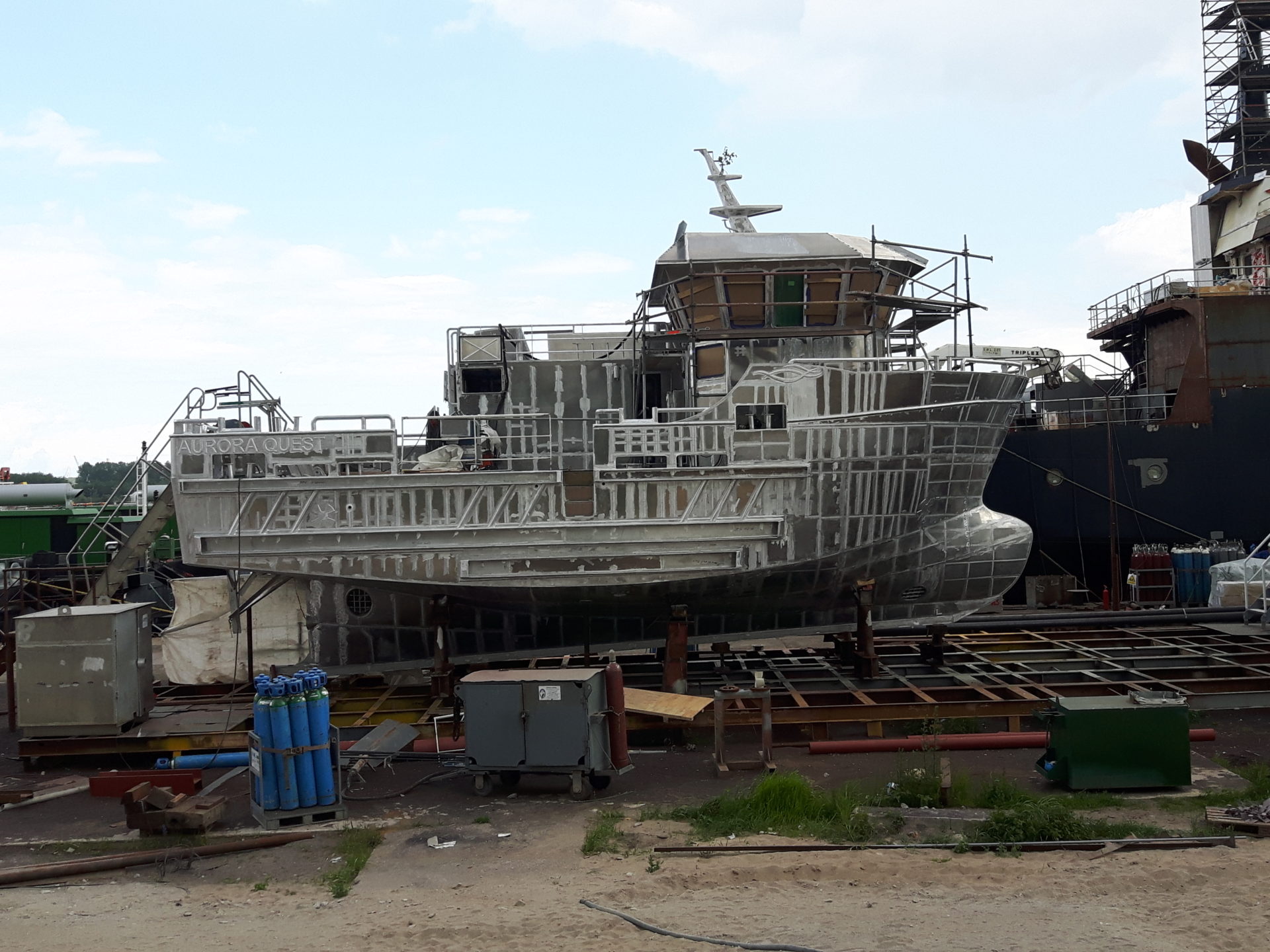

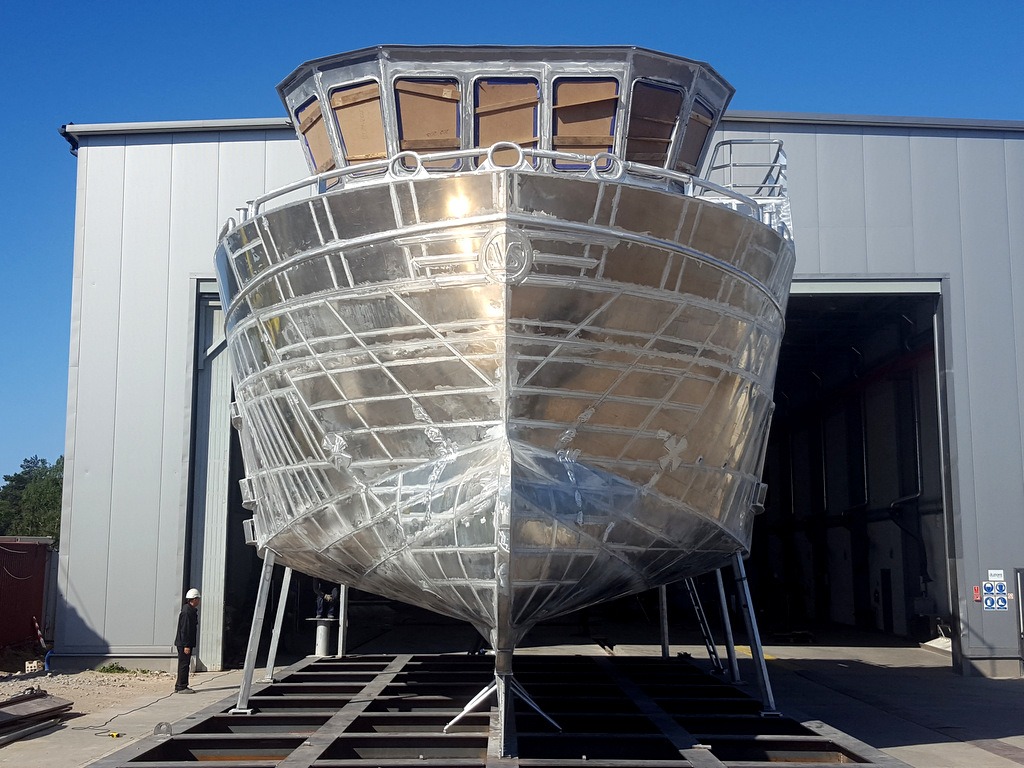

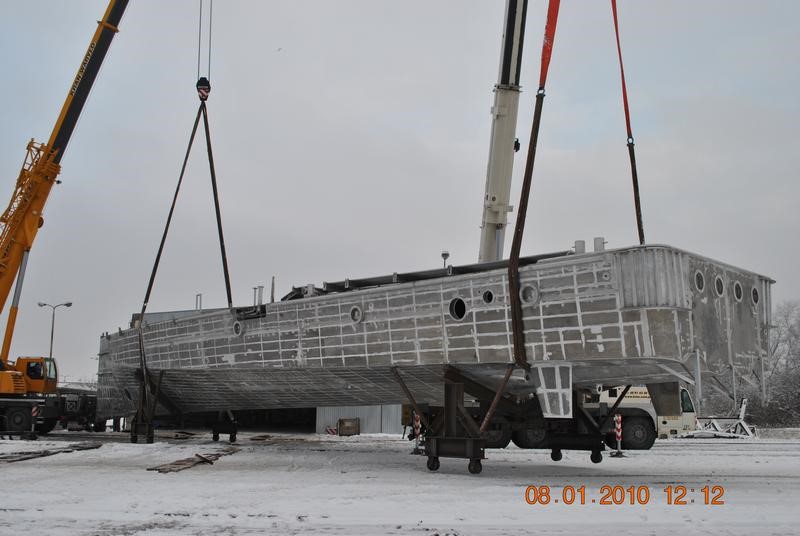

Aluminum catamaran

Aluminum catamaran Aluminium Constructions Catamarans

About:

Structure of hull, superstructure and signal mast for multipurpose service vessel  for Norwegian operator of fishing farms. The hull and superstructure is built of 50 tonns seawater resistant aluminum ally according to NS6038 with accuracy related to shipbuilding rules.

The hull has combined frame sytem consisting of transverse web frames and longitudinal stringers, and three watertight  bulkheads. Foundations for deck cranes 85 tm and 32 tm, net winch 30 t  and capstans are located on big area working deck.

Main dimension:

  • Length O.A.: 18,0 m
  • Length P.P.: 17,1 m
  • Breadth mld: 12,0 m
  • Depth to main deck: 3,8 m
  • Cargo load c.a.: 80 tonnes

The vessel has accommodation for 8 persons in few cabins

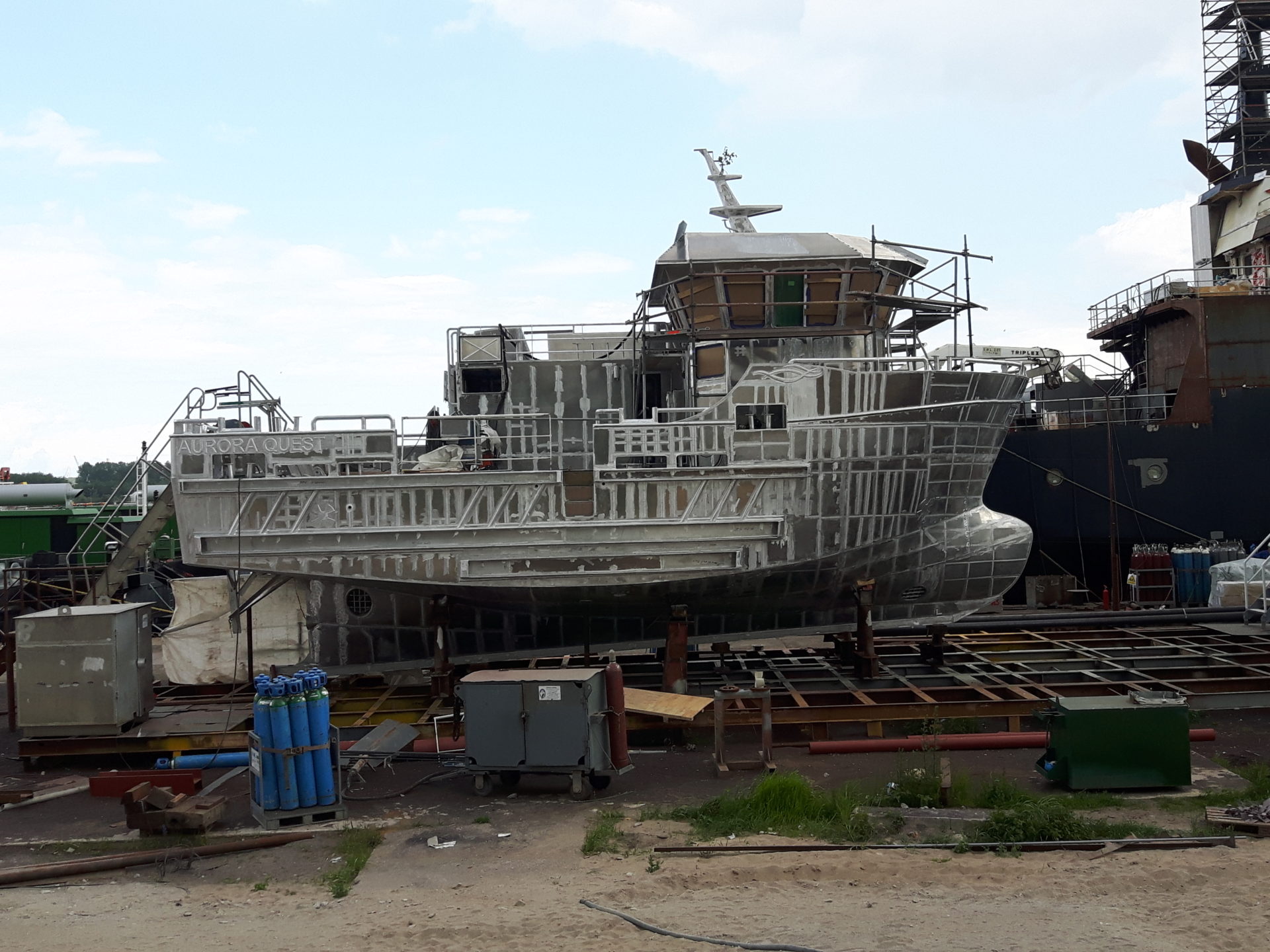

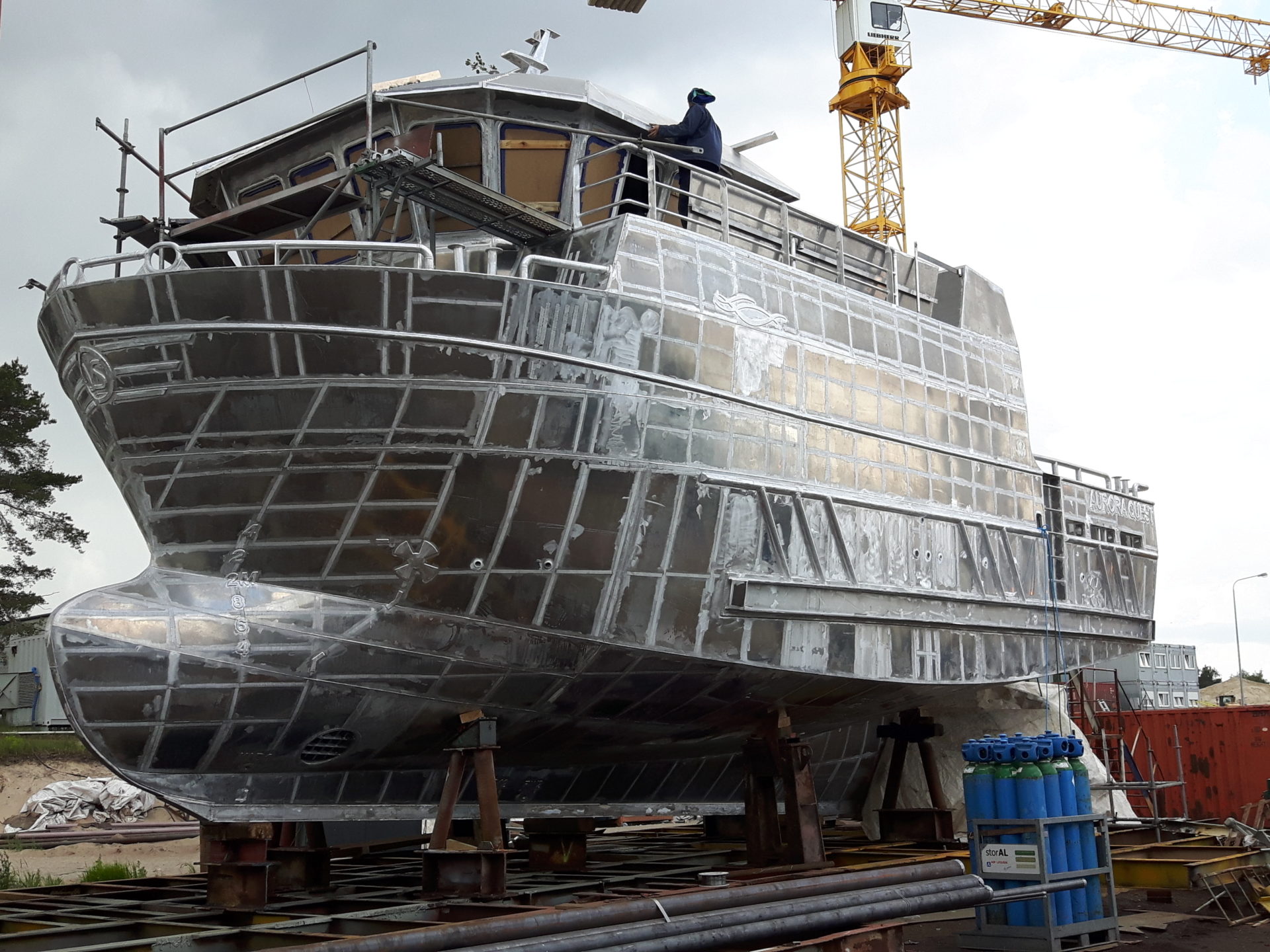

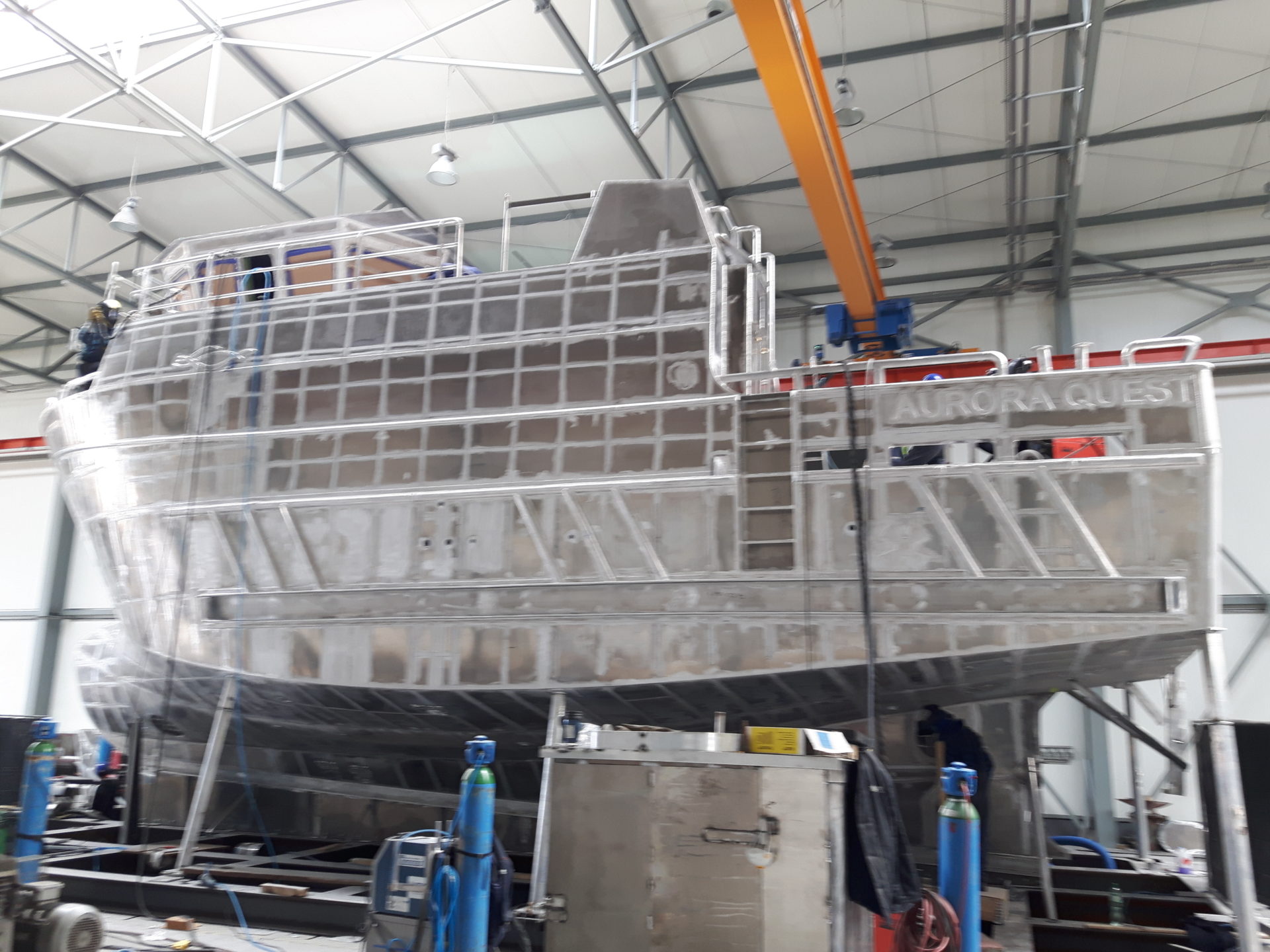

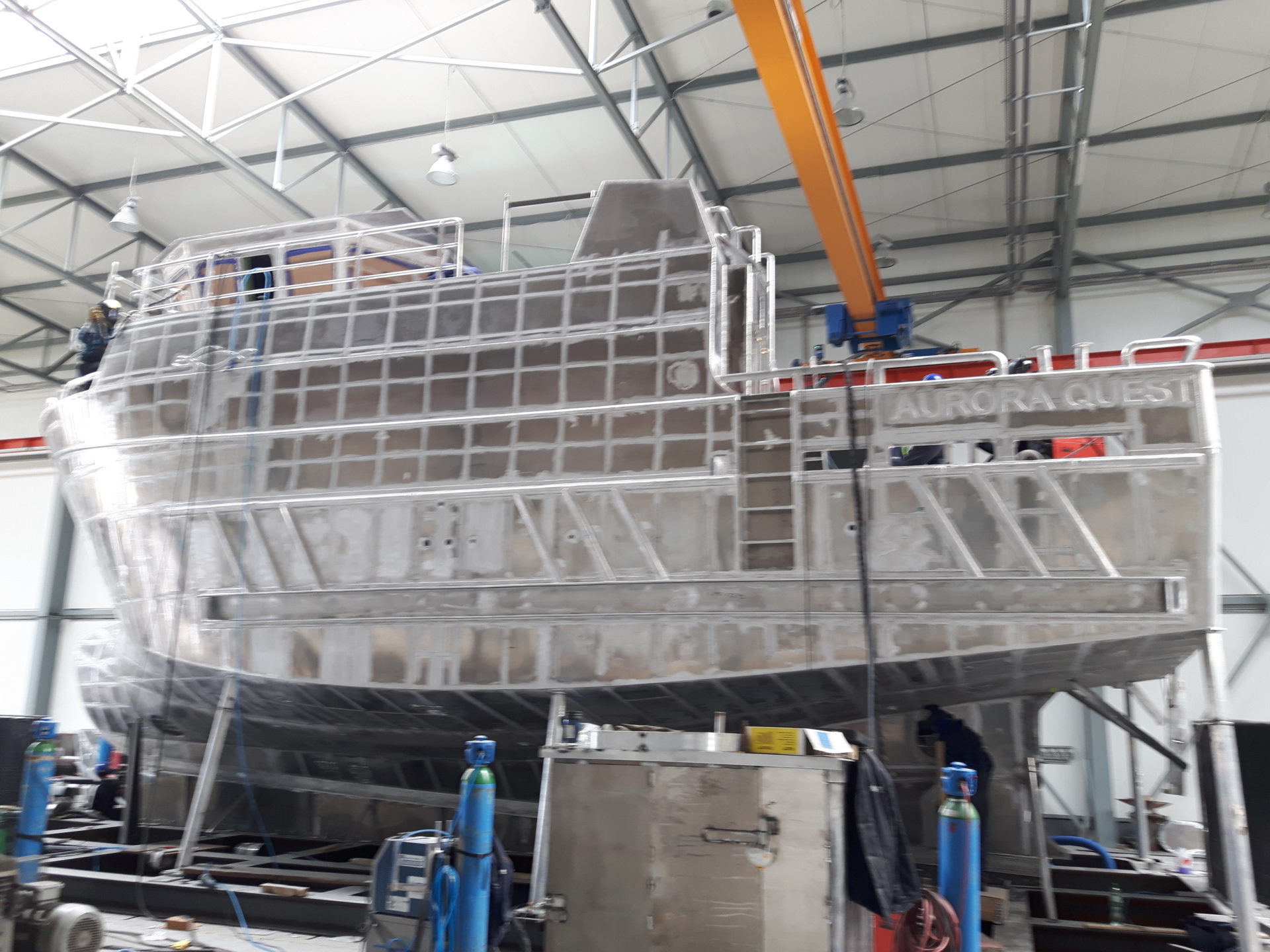

Aurora Quest

Aurora Quest Aluminium Constructions Workboats

About:

Structure of hull, superstructure and signal mast service vessel  for Shetlander Owner. The hull and superstructure is built of seawater resistant aluminum alloy:

Plates: 5083-H116

Profiles: 6082-T6

Accuracy related to shipbuilding rules of Maritime and Coastguard Agency (MCA).

The hull has combined frame system consisting of transverse web frames and longitudinal stringers, and three watertight  bulkheads. The hull is divided to four sections: forepeak inclids seawater ballast tank, accommodation for 4 persons, cargo hold and engine room.

Main dimension:

  • Length O.A.: 14,96 m
  • Length P.P.: 13,50 m
  • Breadth mld: 7,0 m
  • Depth to main deck: 3,15 m
  • Weight of aluminum c.a.: 15.000 kg

Mervedi Working Boat

Working Boats – 2 pieces Aluminium Constructions Turnkey Vessels Workboats

About:

Mervedi - Working boat for fish farms equipped with dead fish separator.

  • Lenght: 10,7 m
  • Width: 3,7 m
  • Weight: 3 500 kg

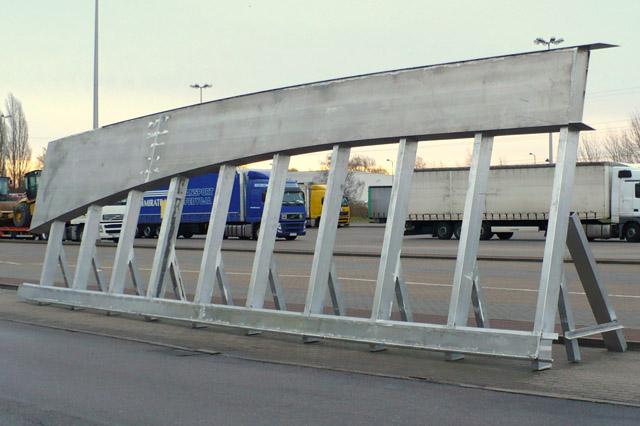

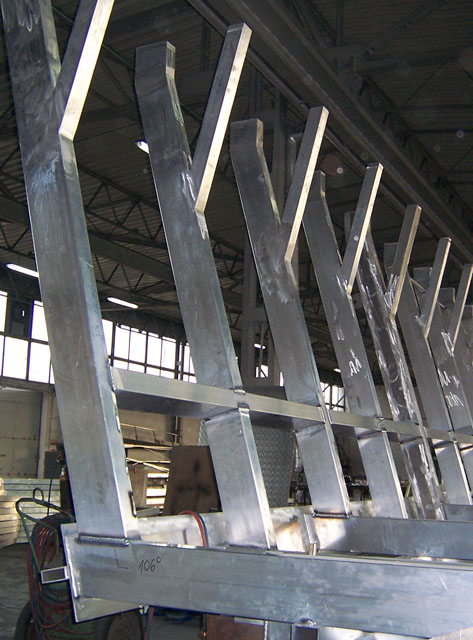

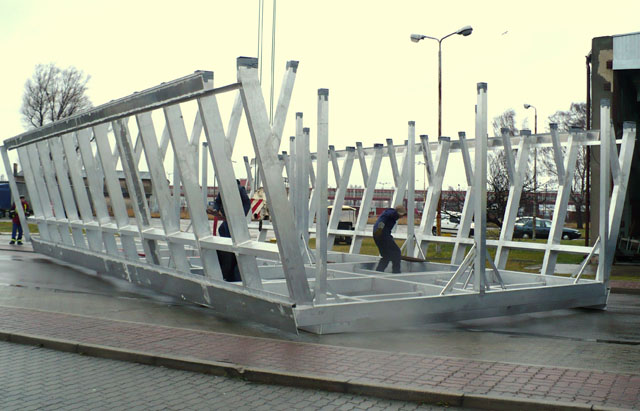

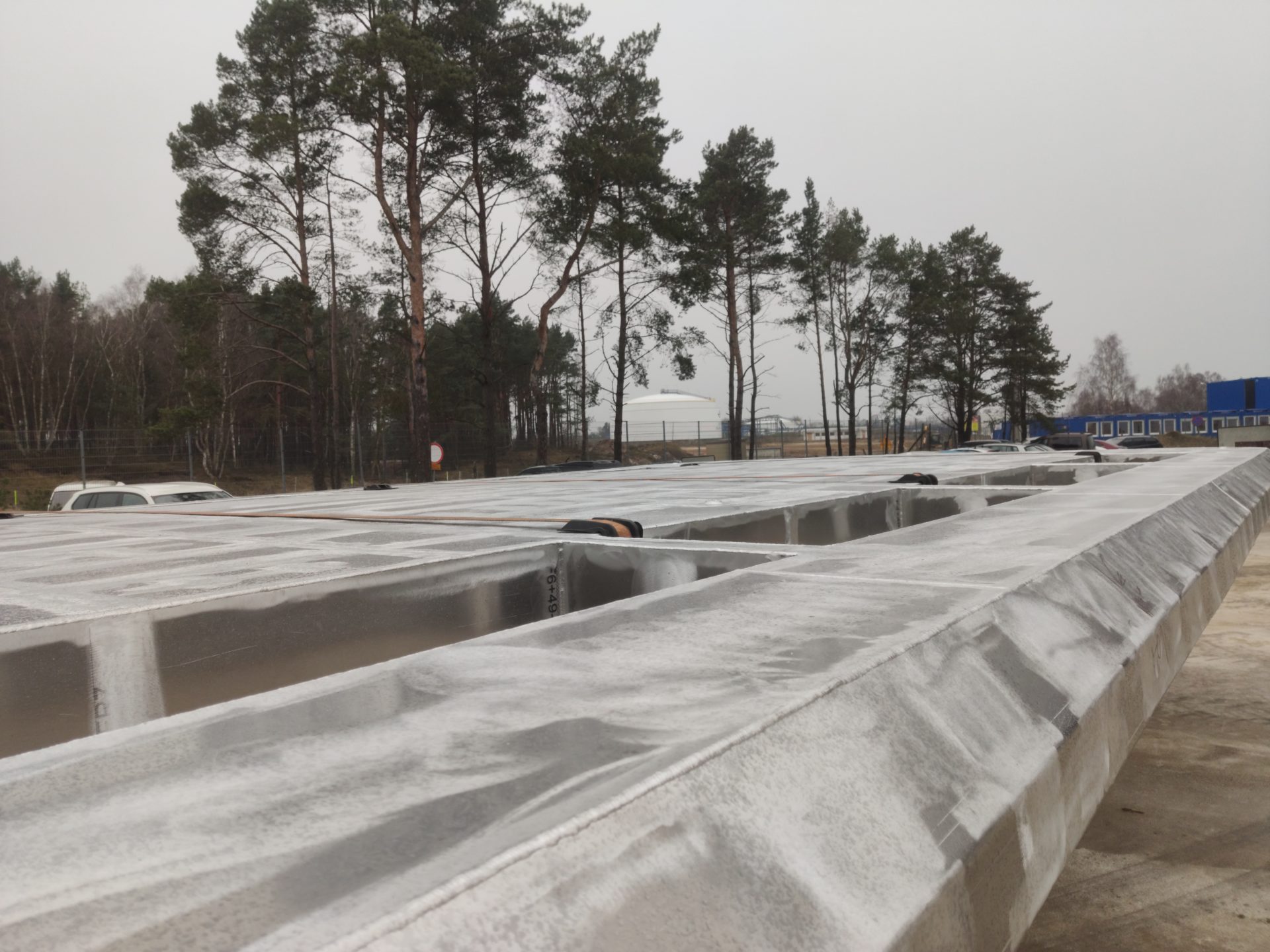

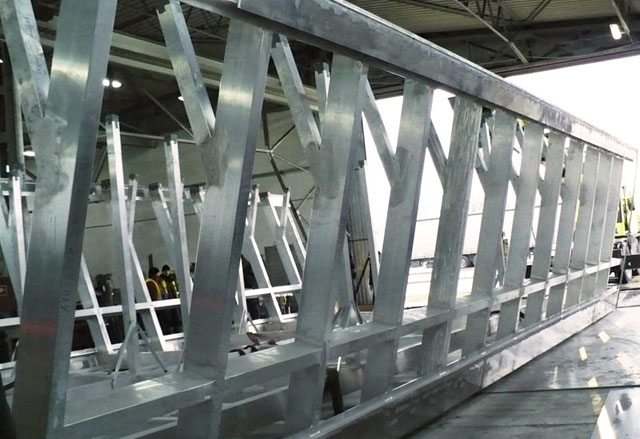

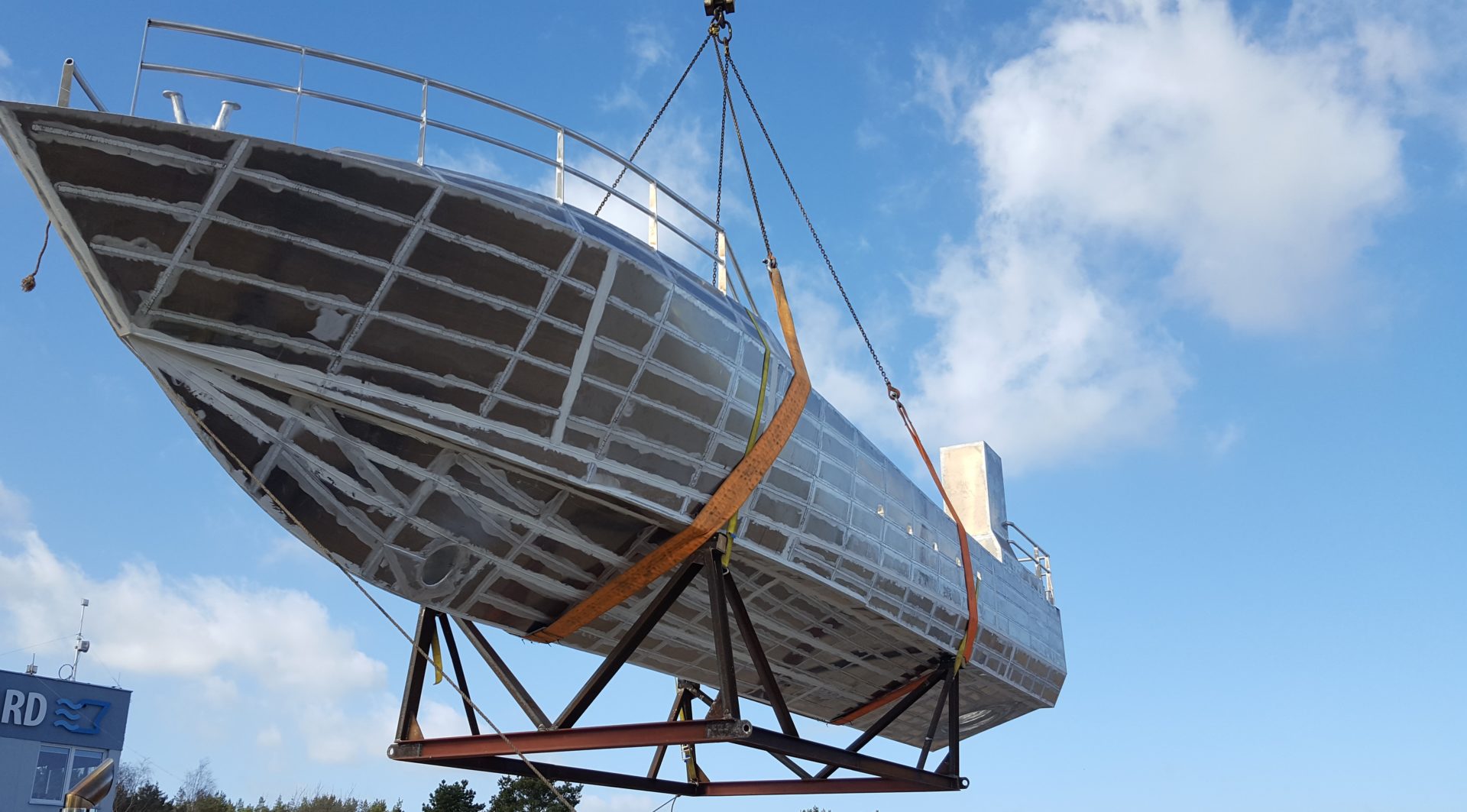

Aluminium Sections

Aluminum sections Aluminium Constructions Constructions

About:

  •  Weight: 33 000 kg

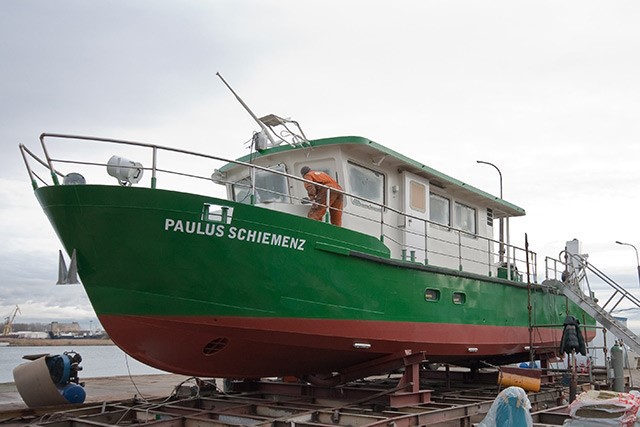

River Research Vessel

River Research Vessel Aluminium Constructions Speedboats

About:

  • Weight: 6 400 kg

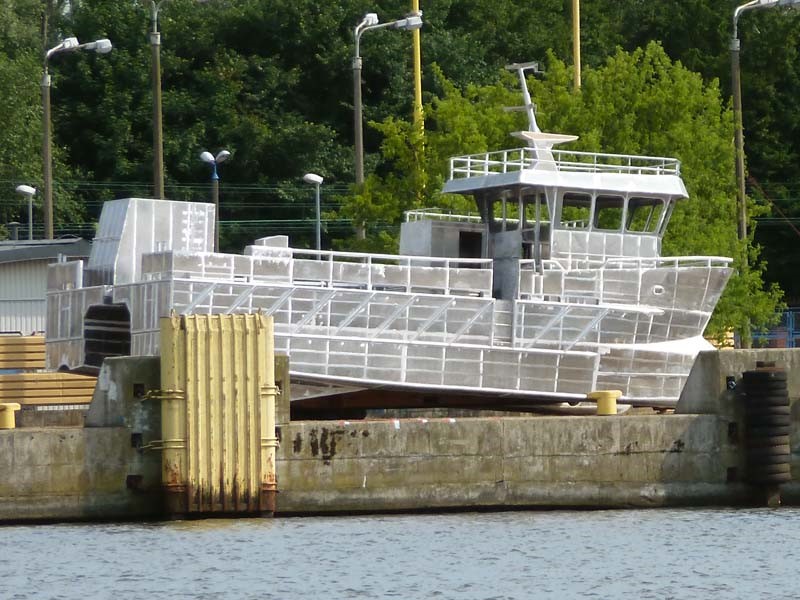

Aluminum catamaran

Aluminum catamaran Aluminium Constructions Catamarans

About:

Workboat catamaran for multi-purposes, originally designated for personnel transport and equipment. Could be used for fish farms.

  • Length: 15,0 m
  • Width: 10,5 m
  • Weight: 18 000 kg

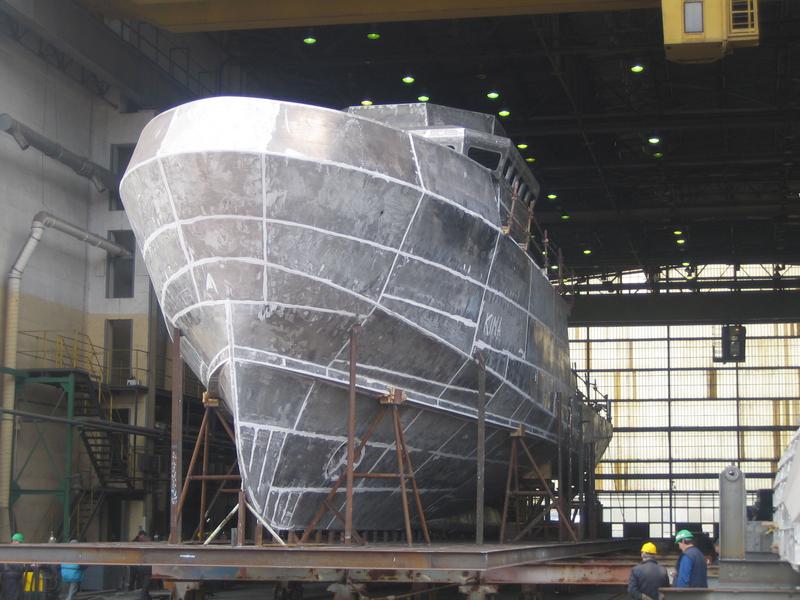

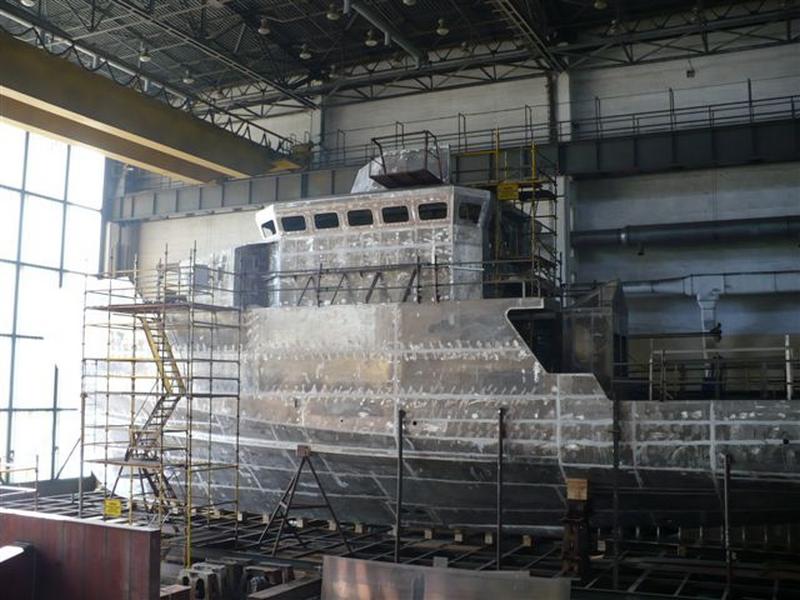

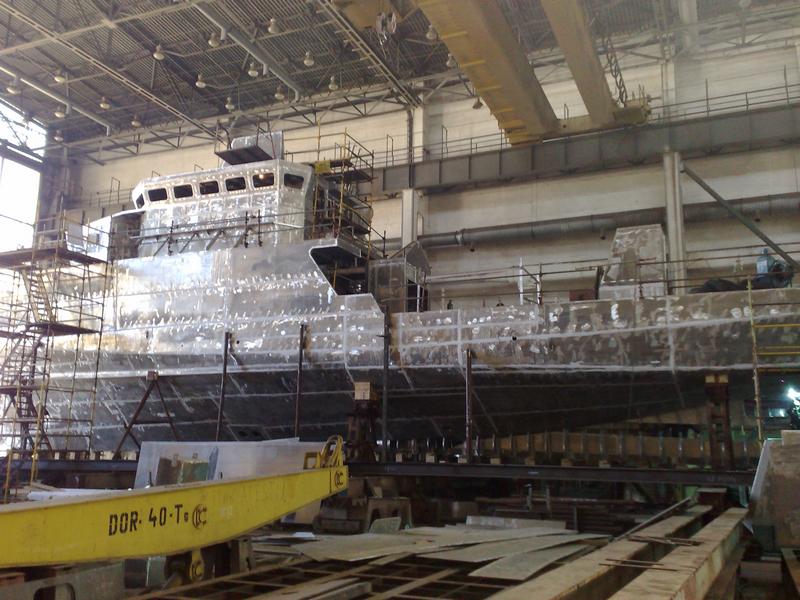

Damen Fast Crew Supply Vessel 3307

Damen Fast Crew Supply Vessel 3307 Aluminium Constructions Speedboats

About:

2 pieces – aluminum hull with a superstructure and the wheelhouse,

  • Lenght: 33,5 m
  • Width: 7,4 m
  • Weight: 36 000 kg

Units built under the supervision of the Damen Shipyards.




Superstructure, aluminum-steel

Superstructure, aluminum-steel Aluminium Constructions Constructions Steel Constructions

About:

  • Weight of aluminum: 22 000 kg,
  • Weight of steel: 34 000 kg




Aluminum catamaran

Aluminum catamaran Aluminium Constructions Catamarans

About:

Workboat catamaran for multi-purposes, originally designated for personnel transport and equipment. Could be used for fish farms.

  • Lenght: 15,0 m,
  • Width: 7,0 m,
  • Weight: 14 200 kg

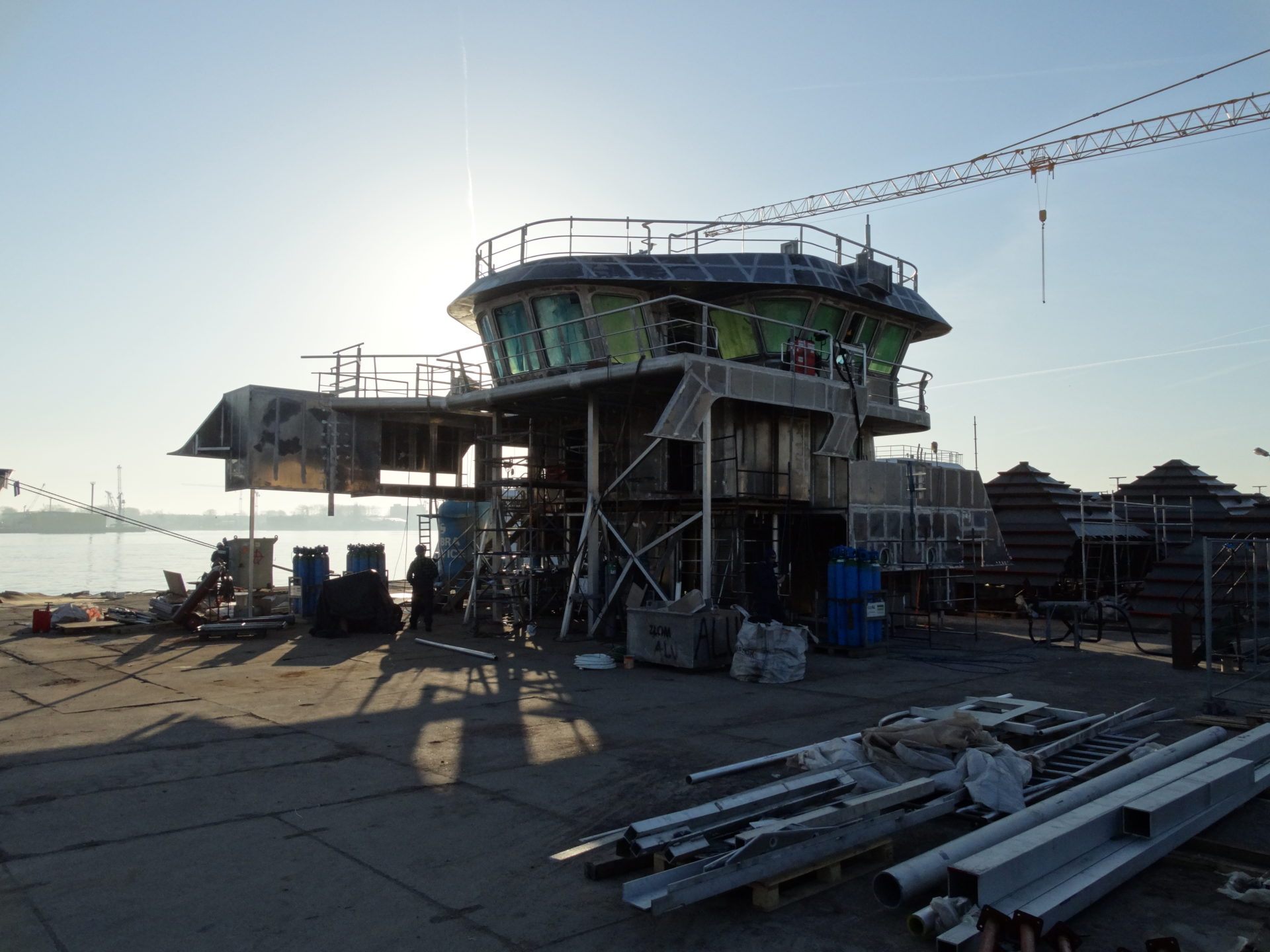

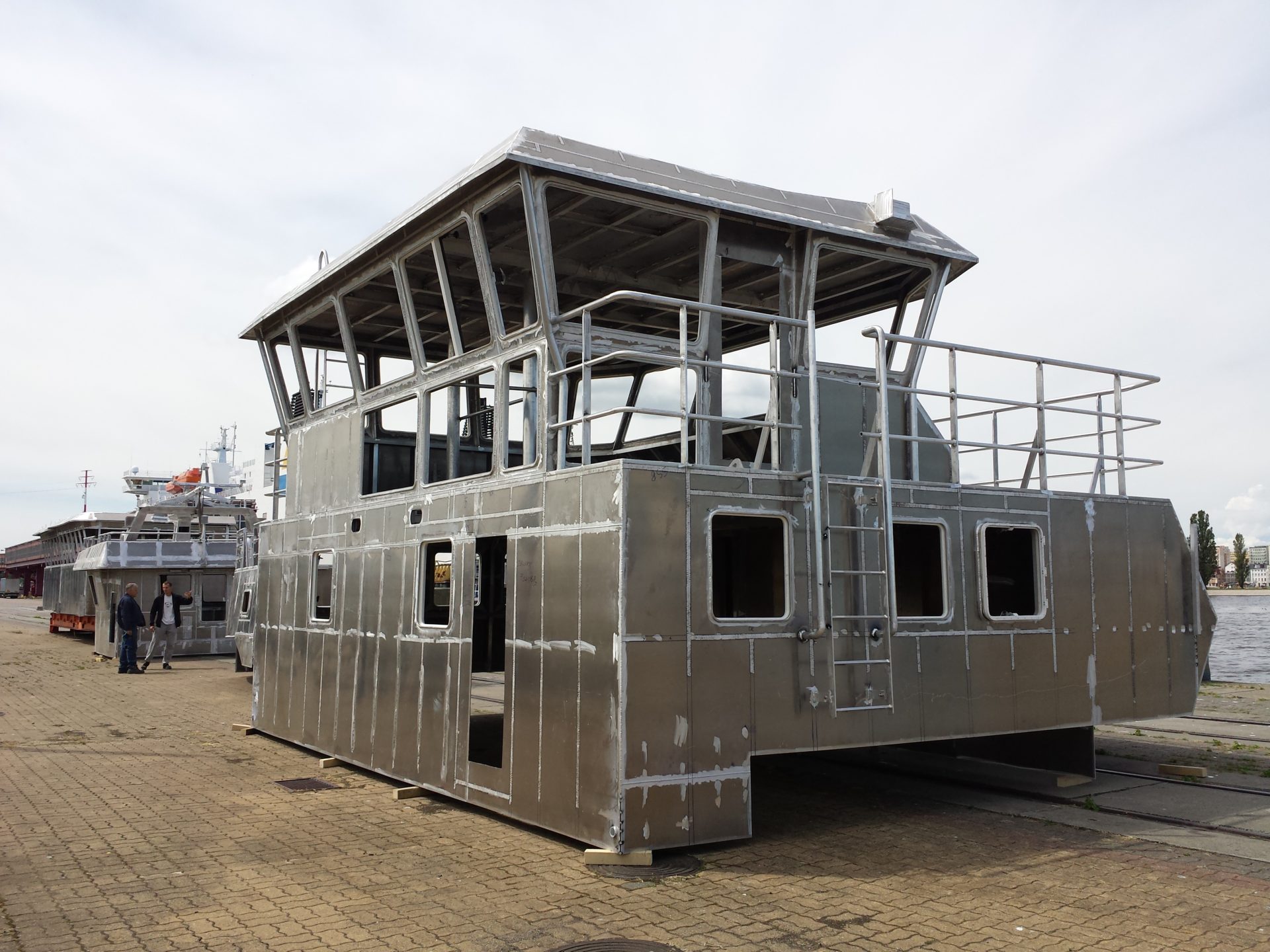

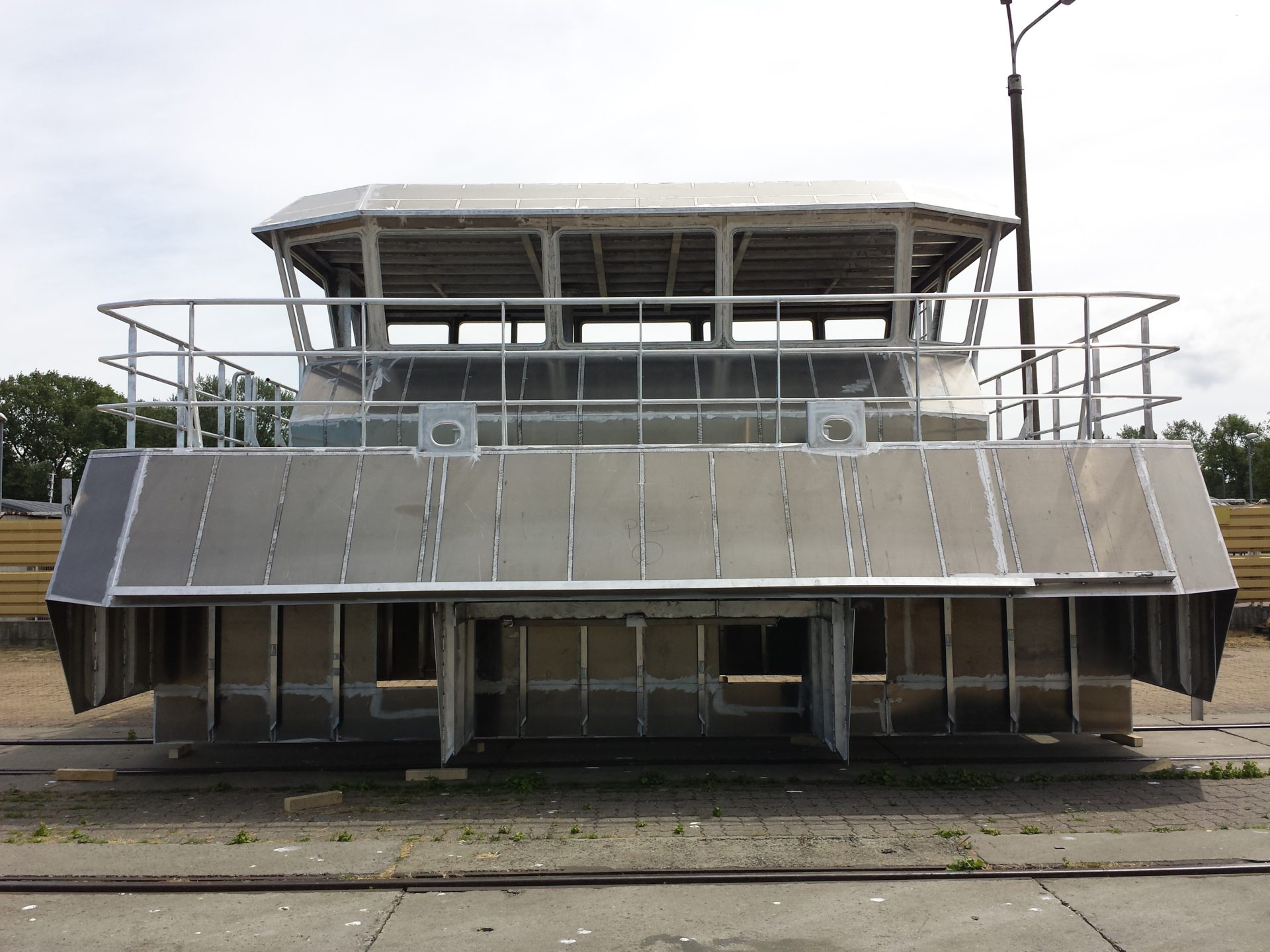

Aluminum superstructure

Aluminum superstructure Aluminium Constructions Superstructures

About:

Aluminium superstructure with trimetal bars  dedicated for steel hull of fish liner. Construction shipped by sea to final assembly on the steel hull on the client site.

  • Dimensions: 20m x 12,5m x 9m
  • Weigth: 29 tons




Aluminum-steel superstructures

Superstructure Aluminium Constructions Constructions Steel Constructions

About:

Aluminum-steel superstructures

Pieces: 2

  • Weight of aluminum: 22 000 kg
  • Weight of steel: 34 000 kg
